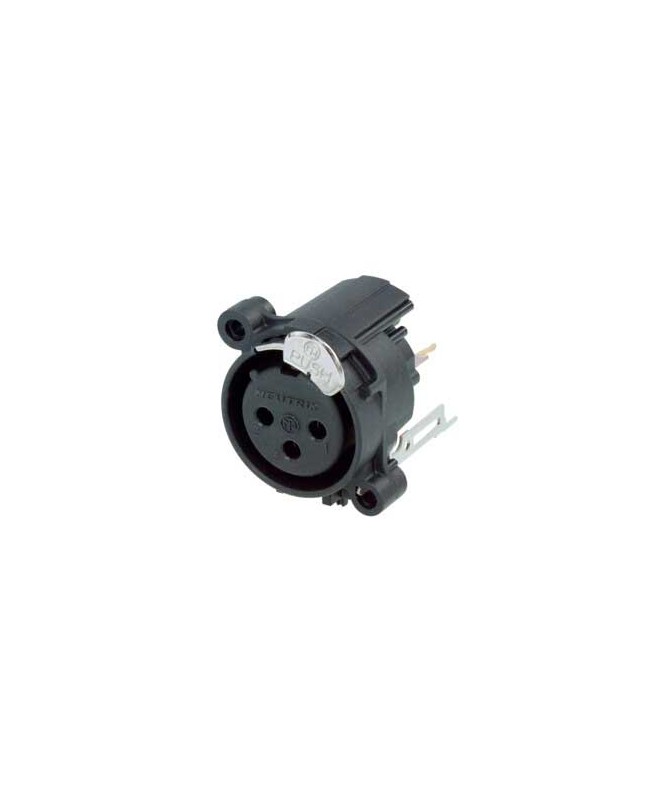

NEUTRIK NC3FAV2-DA

3-pin female XLR connector. Series A. Color: black, gold-plated contacts. Vertical mounting on board. Round body made of low-cost plastic. Grounding: separate ground contact connected to connector housing and front panel, no connection to pin 1. Smaller XLR sockets, higher packing density (23 mm center to center). Tulip contact design with high contact pressure for maximum durability. Front panel cutout and PCB design 100% compatible with A-series. Asymmetrical pressure locking system for space saving of about 20%. Materials: polyamide housing. Environmental specifications: flammability UL94 V-0, IEC 61076-2-103 standard, IP 40 protection, temperature range -30 °C to +80 °C.
