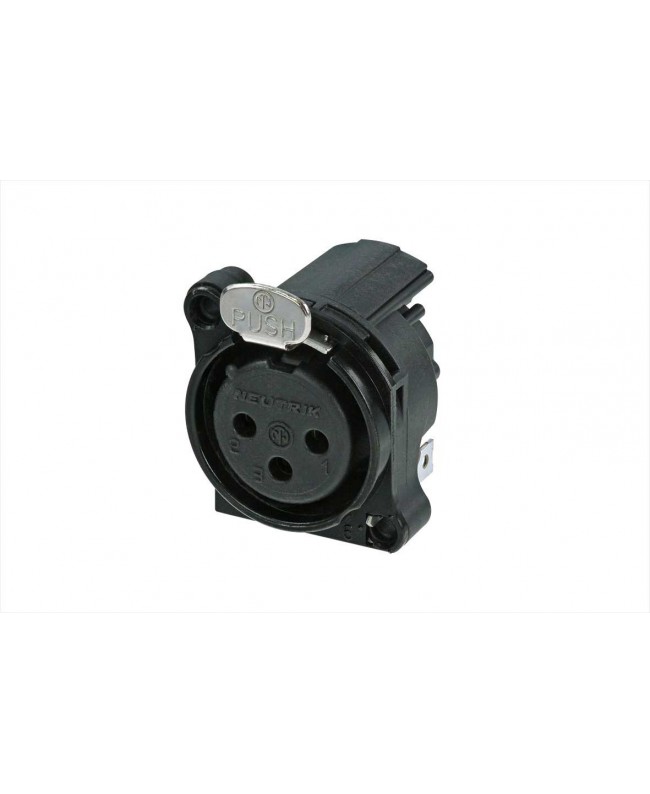

NEUTRIK NC3FBH2-B

3-pin female XLR connector. Series B. Color: black chrome plated, gold-plated contacts. Horizontal mounting on board. Grounding: separate ground contact connected to connector housing and front panel, no connection to pin 1. Smaller XLR sockets, higher packing density. Tulip contact design with high contact pressure for maximum durability. Metal mounting flange provides continuous circumferential ground contact with chassis for better EMC and RF protection. Ck67 steel safety latch. Materials: polyamide insert, zinc housing. Environmental specifications: flammability UL 94 V-0, IEC 61076-2-103 standard, protection IP 40, temperature range -30°C to +80°C.
