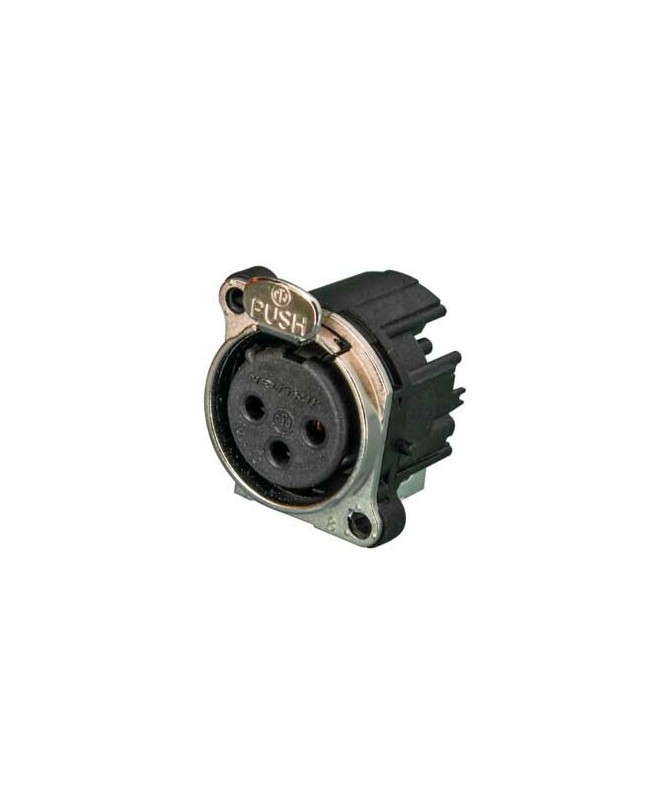

NEUTRIK NC3FBHL1

3-pin female XLR connector. Series B. Color: nickel, gold-plated contacts. Mounted on the left side of the board. Ground: Pin 1 connected directly to front panel and connector housing, no separate ground contact. Smaller XLR sockets, higher packing density. Tulip contact design with high contact pressure for maximum durability. Metal mounting flange provides continuous circumferential ground contact with the chassis for better EMC and RF protection. Ck67 steel safety latch. Materials: polyamide insert, zinc housing. Environmental specifications: flammability UL 94 V-0, IEC 61076-2-103 standard, IP 40 protection, temperature range -30°C to +80°C.
