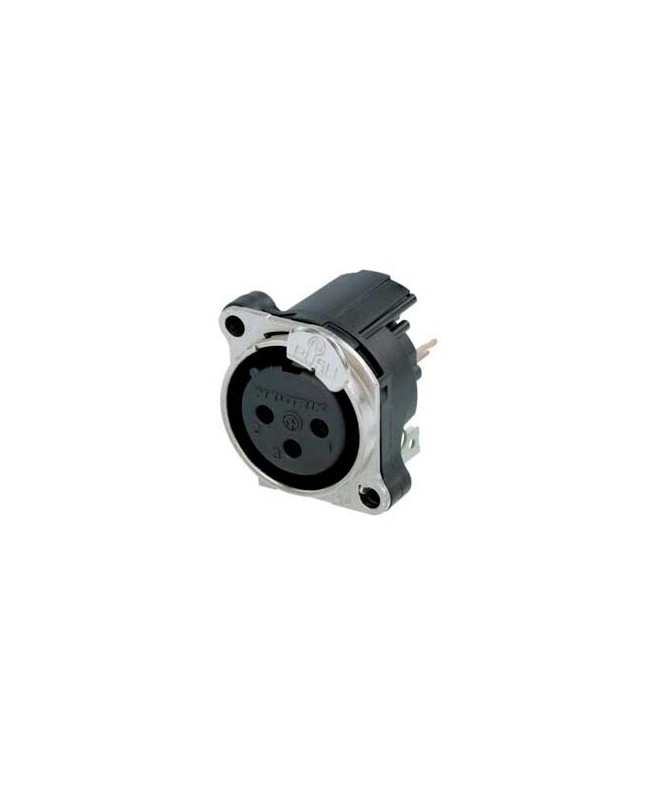

NEUTRIK NC3FBV1-DA

3-pin female XLR connector. Series B. Color: nickel, gold-plated contacts. Vertical mounting on board. Ground: Pin 1 connected directly to front panel and connector housing, no separate ground contact. Smaller XLR sockets, higher packing density. Tulip contact design with high contact pressure for maximum durability. Metal mounting flange provides continuous circumferential ground contact with the chassis for better EMC and RF protection. Space-saving asymmetrical pressure closure system. Materials: polyamide insert, zinc housing. Environmental specifications: flammability UL 94 V-0, IEC 61076-2-103 standard, protection IP 40, temperature range -30 °C to +80 °C.
