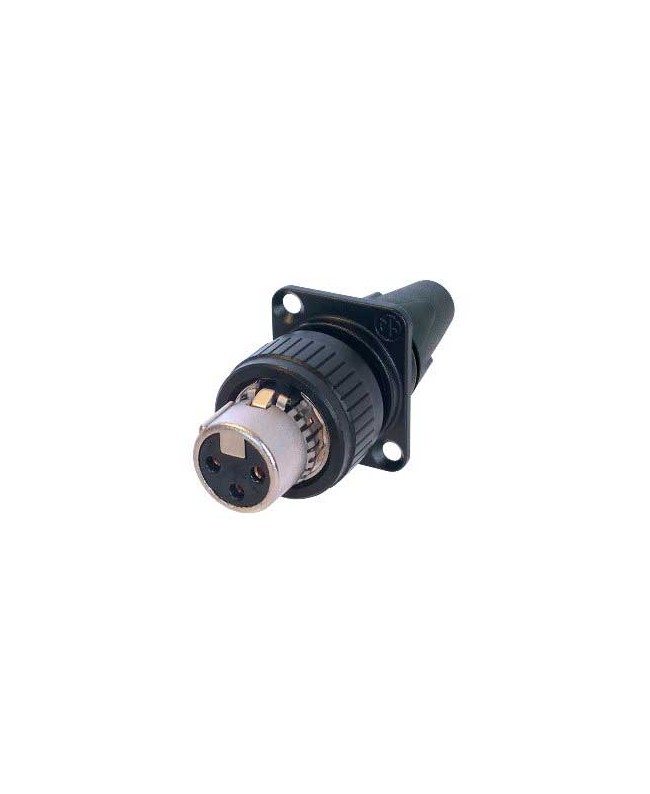

NEUTRIK NC3FDX-EMC-SPEC

EMC-XLR 3-pin female panel-mount cable connectorThe EMC-XLR series is a specifically designed version of the XX series to provide increased RF shielding for critical applications in live performance and recording, where there are particular radio or mobile transmission issues. The design ensures a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. The circular capacitors act as a high-pass filter with a cutoff frequency of about 10 MHz. The 24-ohm EMI suppression ferrite at 1 MHz between pin 1 and the cable shield provides a low-pass filter to improve RF rejection. For panel application of the EMC XLR, we offer a special version of the D-flange cable for panel mounting. This panel-mountable connector is available only as a female cable connector and has the same specifications as the NC3FXX-EMC. It includes the NC3FX-Spec locking nut for secure attachment of a gooseneck, for example. For larger panel openings, an additional round flange with a diameter of 63.5 mm is available, including mounting screws.
