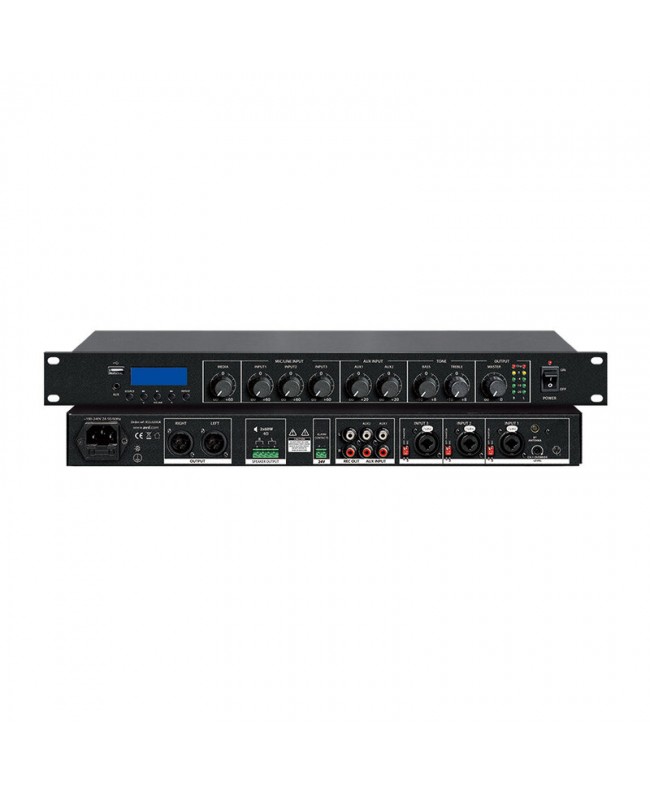

LEM Commercial Midi ipAMP2.60wi


€437.00
€339.00 -23%
Tax included
Lowest price within the last 30 days: €339.00

2 X 60 W 1U rack-mount mixer / amplifier, 3 MIC / line inputs, 2 AUX inputs, Bluetooth / USB / SD / FM / DAB+ media player


Out of Stock

Free shipping


wishlist

LEM Commercial Midi ipAMP2.60wi



The MIDIIPAMP2.60WI is a compact mixer / amplifier in a standard 19 and #34; 1U rack format designed for sound reinforcement systems in commercial, corporate, and hospitality environments.

It offers three MIC / line inputs with selector and Phantom power, two stereo AUX inputs, an integrated media player with Bluetooth, USB, SD, FM, and DAB and #43; tuner. It also features XLR pre-balanced outputs and Euroblock terminals for connecting low-impedance (4 ohm) loudspeakers.

The front panel includes dedicated controls for each of the three inputs, bass / treble EQ, media player volume control, and a master level with LED VU meters for instant monitoring. The media player section allows complete management of digital sources, while the 24 V emergency contact allows integration with alarm systems, ensuring channel 1 priority in case of emergency.

Thanks to its 2 x 60W power and rugged construction, the MIDIIPAMP2.60WI is ideal for fixed installations where reliability, Versatility and audio quality are important.

  • User benefits
  • 3 MIC / line inputs with selectable phantom power for maximum operational flexibility
  • Integrated media player
  • Balanced outputs and low-impedance speaker terminals (2 x 60 W)
  • 1U rack-mount format, ideal for installations with limited space
  • Areas of use
  • Shops, supermarkets, and shopping centers
  • Hotels, restaurants, bars
  • Conference rooms, meeting rooms, and corporate offices
  • Schools, public facilities
  • Places of worship
  • Museums, showrooms, and exhibition spaces
  • PA installations for background music and announcements
  • Technical characteristics
  • Power supply: 100 - 240 VAC 50/60 Hz
  • Fuse: T2AL
  • Inputs: 3 x XLR / jack (balanced / unbalanced) MIC / line; 2 x AUX L+R RCA; 3.5 mm mini-jack to media player
  • Audio source: internal Bluetooth, USB, FM and DAB+ player
  • Output power: 2 x 60 WRMS on 4 ohms
  • Loudspeaker outputs: L+/L- and R+/R- screw terminals (Euroblock)
  • Line outputs: L+R XLR; record OUT (RCA)
  • Emergency control: 24 V contacts mute all except channel 1
  • Phantom power: +20 V (switchable on channels 1 - 3)
  • Input impedance: 2.2 kohm (MIC / line); 10 kohm (AUX)
  • Controls: media, 3 x MIC / line, 2 x AUX, Treble, Bass, Master level
  • Rear panel controls: CH.1 override level; MIC / line and Phantom DIP switches

Frequency response

  • MIC: 20 Hz - 18 kHz
  • Line: 14 Hz - 20 kHz
  • AUX: 10 Hz - 23 kHz
  • Input sensitivity (MIC): -45 dBV
  • Input sensitivity (AUX / line): -10 dBV
  • SNR (MIC): 55 dB
  • SNR (AUX / line): 60 dB
  • Dimensions: 48.2 x 4.4 x 13 cm
  • Weight: 1.96 kg

GEN-MIDIIPAMP2.60WI
