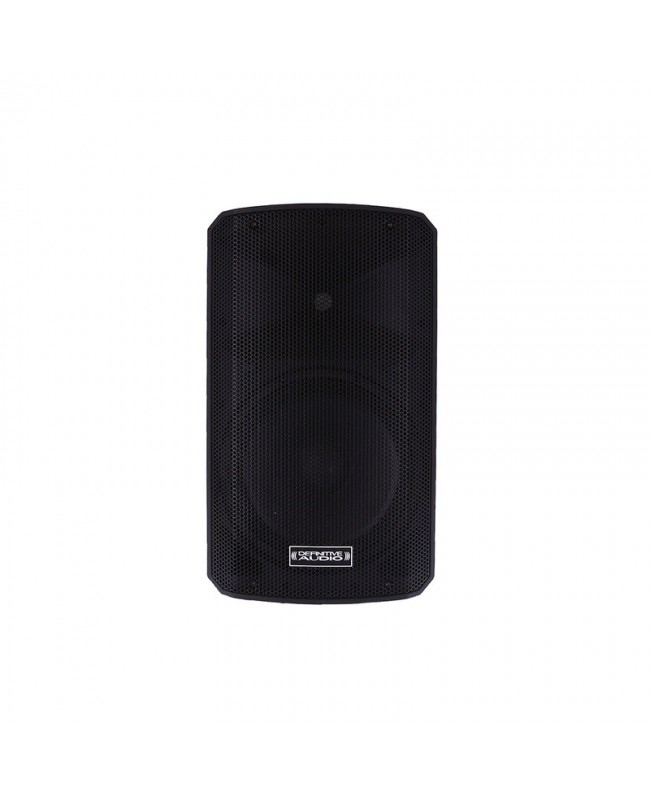

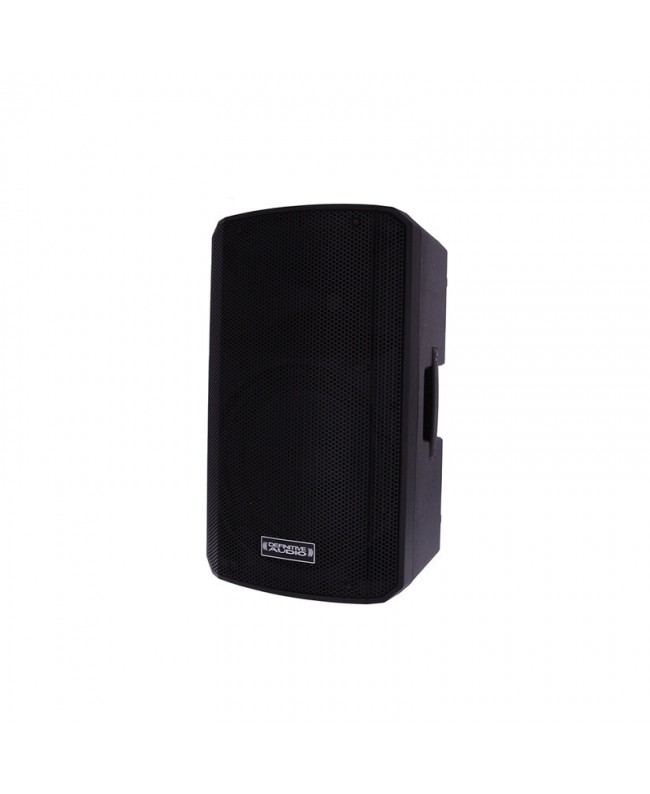

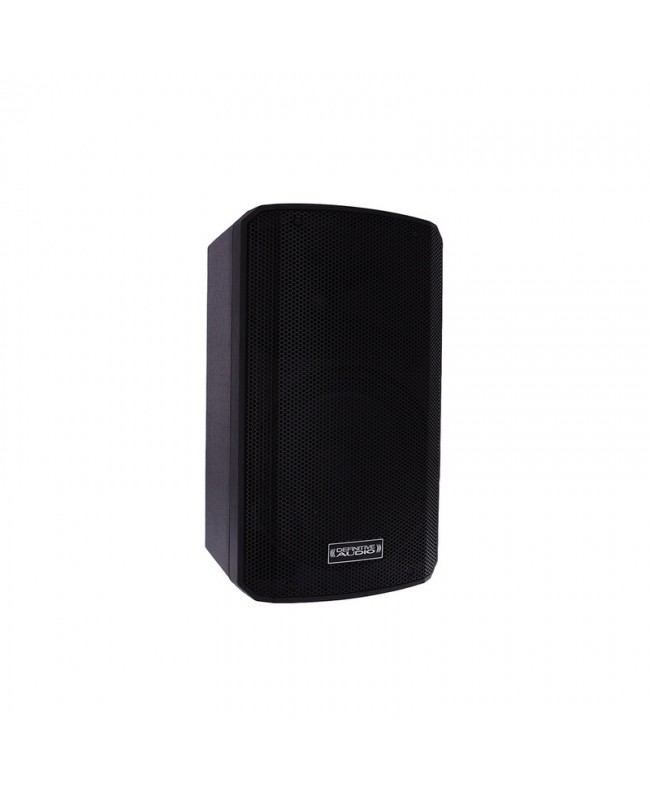

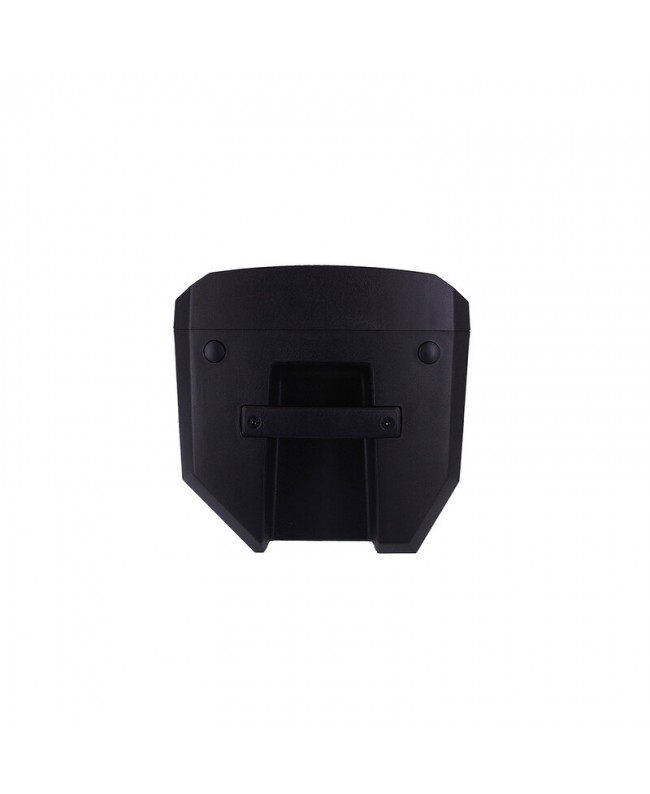

Active 2-way battery-powered loudspeaker from the INPULSE BA DSP series with a 10 and #34; woofer and a 1 and #34; tweeter.
The 14.8 VDC 5400 m. Ah lithium battery ensures completely autonomous use in all circumstances. The TWS Bluetooth system allows you to connect 2 speakers together for stereo use. Powerful, lightweight, efficient and with a modern design, the INPULSE 10 BA DSP offers an ideal compromise between sound reproduction quality, reliability, versatility, mobility and battery life thanks to its battery.
The integrated amplification stages are Class-D for the bass and Class-AB for the treble. Note also that the loudspeaker can be used in the Stage Return position.
Whether for DJ use, live, conferences, fixed or mobile installations, the INPULSE DSP series is perfect and will undoubtedly meet all your needs.
Technical characteristics
Active 2-way bi-amplified loudspeaker

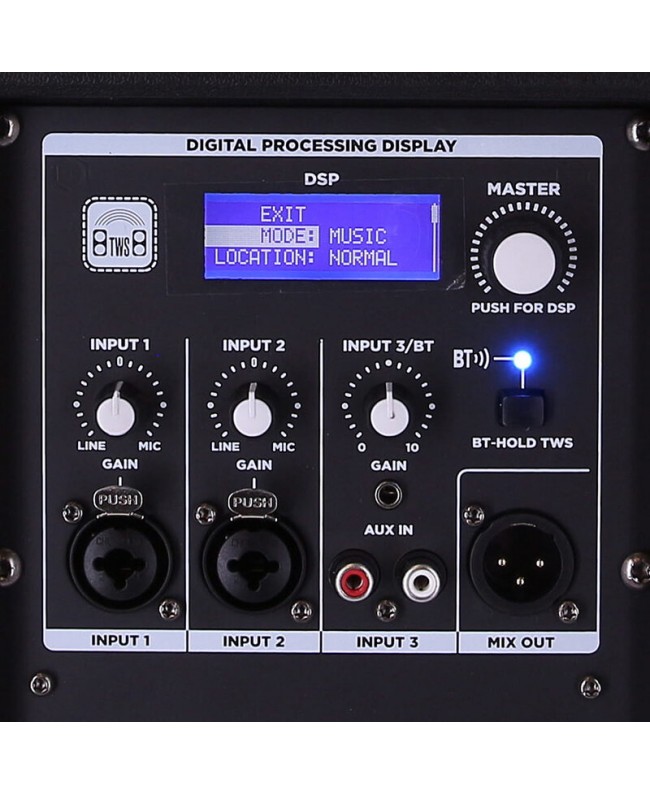

Built-in DSP with various functions
4 Different programs (music, live, speech and DJ)
3 Corrections: bass, midrange and treble
Filter adjustment: 80, 100, 120 and 150 Hz

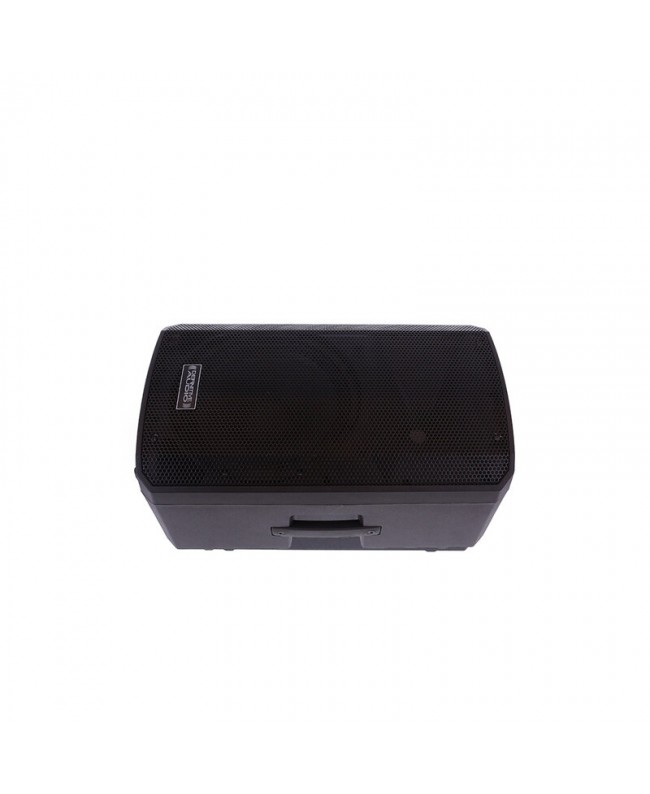

Position selection: normal / return
Delay function up to 16 ms
LED ON / OFF
Limiter
Brightness and screen contrast adjustment
Output power: 100 WRMS / 200 W prog. / 400 W max.
Amplifier: Class-D (bass) + Class-AB (treble)
Woofer: 10 with 1.5 coil
Tweeter: 1
Dispersion: 90° x 60°
Cut-off frequency: 2.8 kHz
Frequency response: 58 Hz - 19 kHz
Max. SPL: 115 dB
Volume level knob

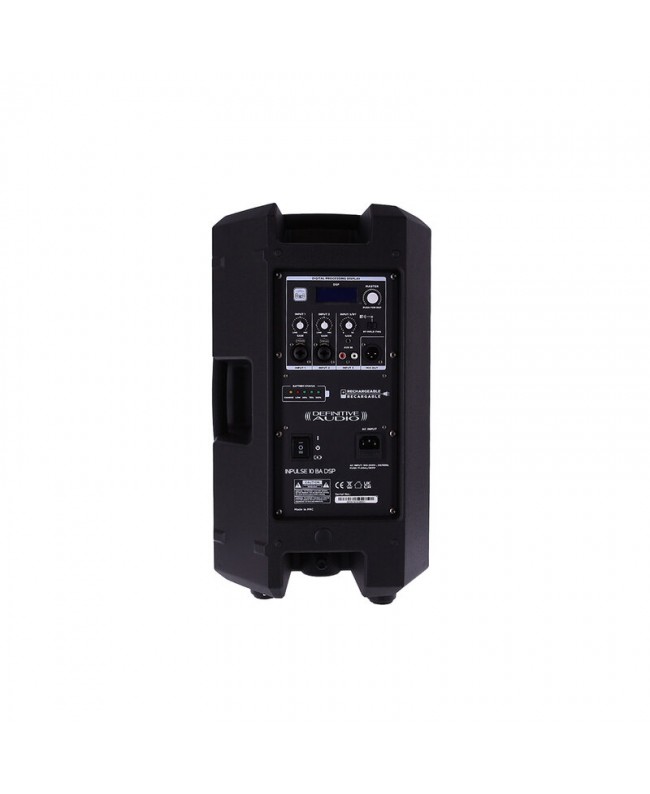

Input 1: 1 x XLR / 6.35 mm Combo plug
Input 2: 1 x XLR / 6.35 mm Combo plug
Input 3: RCA, 3.5 mm stereo mni-jack and BT TWS mini-jack
Bluetooth V5.2 link to connect a device equipped with this system: distance 20 m max.
Bluetooth wireless stereo link (allows you to connect 2 INPULSEs to each other): distance 20 m max.
LINK output: XLR male
Charge and battery status indicators

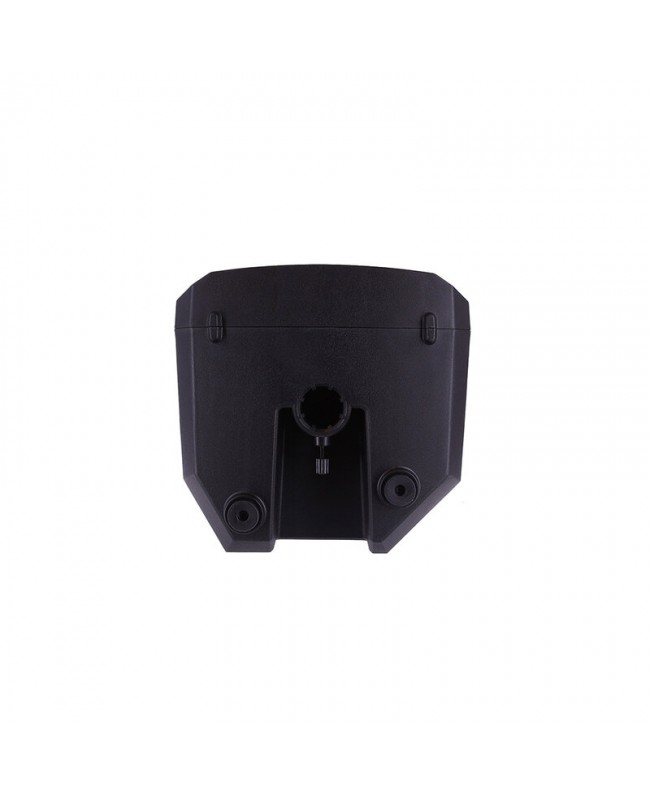

Standard header for 35mm stand

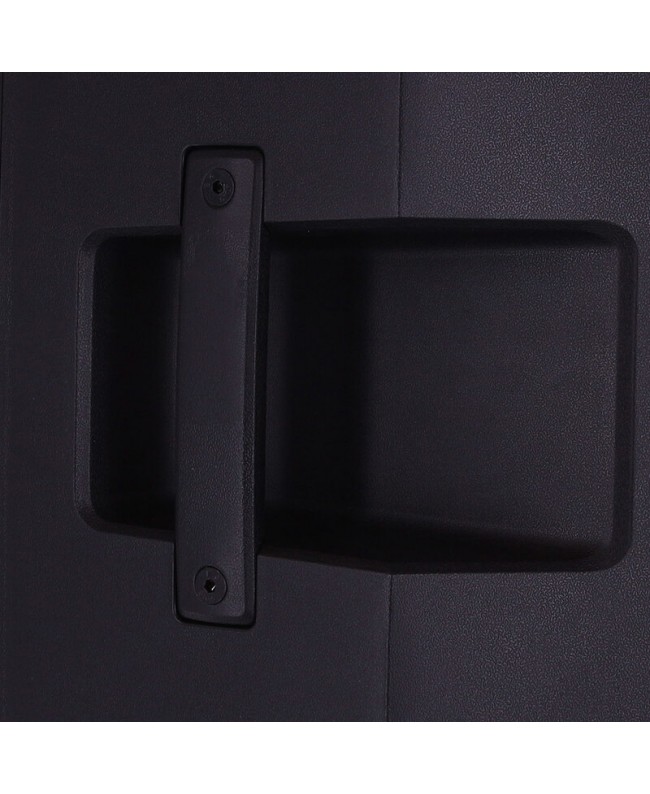

2 Recessed handles (1 on the top and 1 on the side)
Shucko mains connection
ON / OFF main switch
Material: injected polypropylene
Voltage selector at input 110 / 220 VAC and charging position
Battery 14.8 VDC 5400 mAh
7 Hours of autonomy at full volume, 11 hours at 50% volume
