Omnitronic MAXX-1508NG

Scope of delivery

• 1 x bass
• 1 x power cord
• 1 x user manual
• 1 x declaration of conformity

• Frequency range: 40 - 150 Hz bass
• Max. SPL: 129 dB
• DSP: Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ

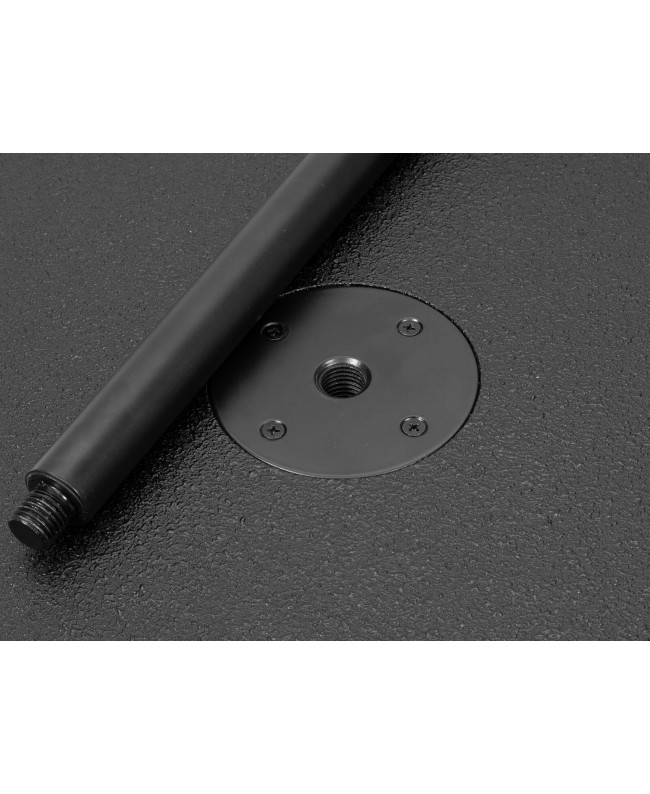

• Attachment system: M20 thread
• Speaker: 1 x woofer 15 with ferrit magnet, Basket material: steel, Voice coil lows 3, Conematerial: cardboard/paper
• Type of speaker: Subwoofer
• Type of construction: Vented

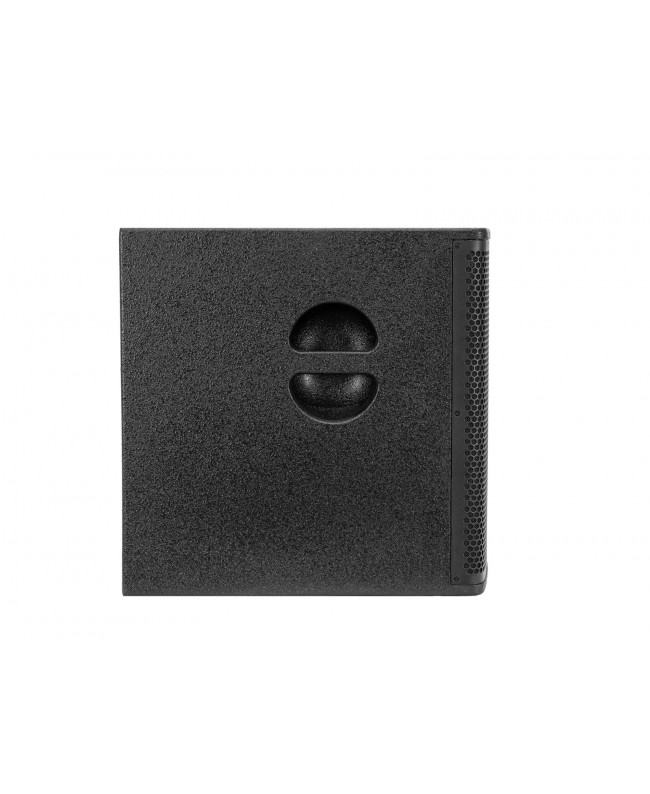

• Carrying handle: 2 pc/pcs
• Transport aid: Wheels optional, 4 x rubber feet
• Material: MDF (medium density fiberboard), 15 mm
• Color: Black, textured coating, painted
• Dimensions: Width: 43.5 cm, Depth: 52 cm, Height: 51 cm
• Power supply: 230 V AC, 50 Hz
• Power consumption: 400 W
• IP classification: IP20
• Protection class: Protection class I
• Output power: 1 x 500 W RMS LF, 2 x 150 W RMS (8 ohms) HF, 1 x 300 W RMS (4 ohms) HF
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug included
• Device fuse: 5 x 20 mm, T 3.15 A fuse replaceable
• DSP: Digital signal processor
• DSP presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
• Cooling: 1 x low-noise cooling fan
• Filter: Low cut: 80 Hz
• Control: Bluetooth
• Bluetooth device name: MAXX-1508NG
• Range: Bluetooth: range up to 10m in buildings
• Carrier frequency: 2.4 GHz
• Circuitry: Class D
• Display type: Multicolor LCD display
• Control elements: Power switch, encoder, menu, BACK button
• Controls: Overheat; short-circuit; DC voltage; limiter
• Status LED: Limit

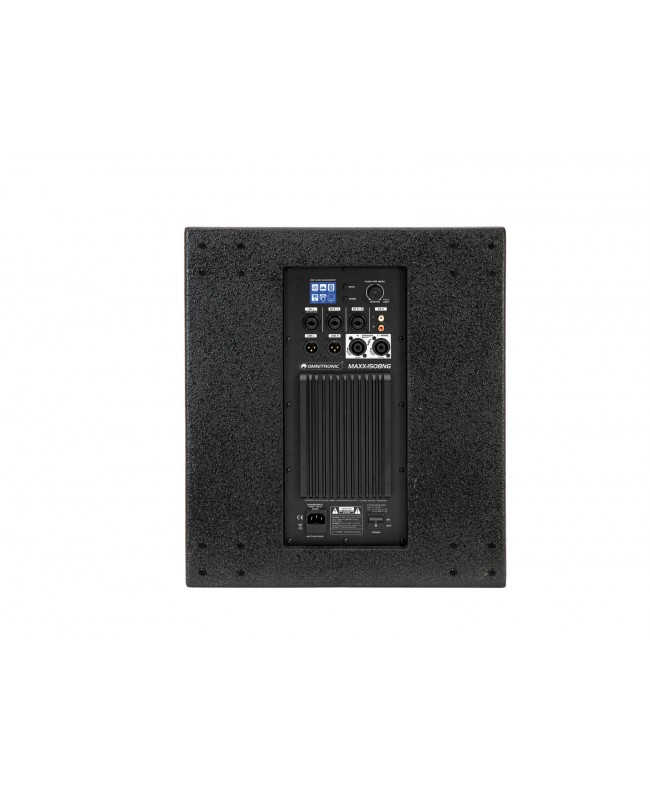

• Connections: Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 1 x RCA (F) mounting version, Output: line via 2 x 3-pin XLR (M) mounting version, Output: speaker via 2 x speaker built-in socket (F)
• Input channels: 1 x stereo via RCA, channel control via rotary dial, 3 x mono via XLR or jack, channel control via rotary dial
• Crossover frequency: 100 Hz
• Cable construction: 3 x 0.75 mm² H05VV-F
• Cable length: 1.8 m
• Weight: 0.13 kg
