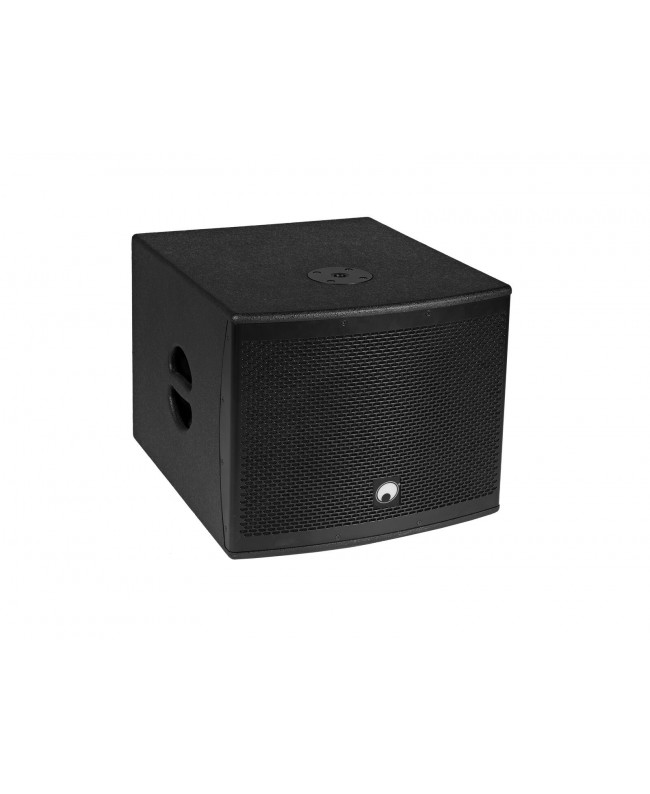

Omnitronic MOLLY-12A Subwoofer active black

• 12 bassreflex subwoofer with DSP and 700 watts RMS power

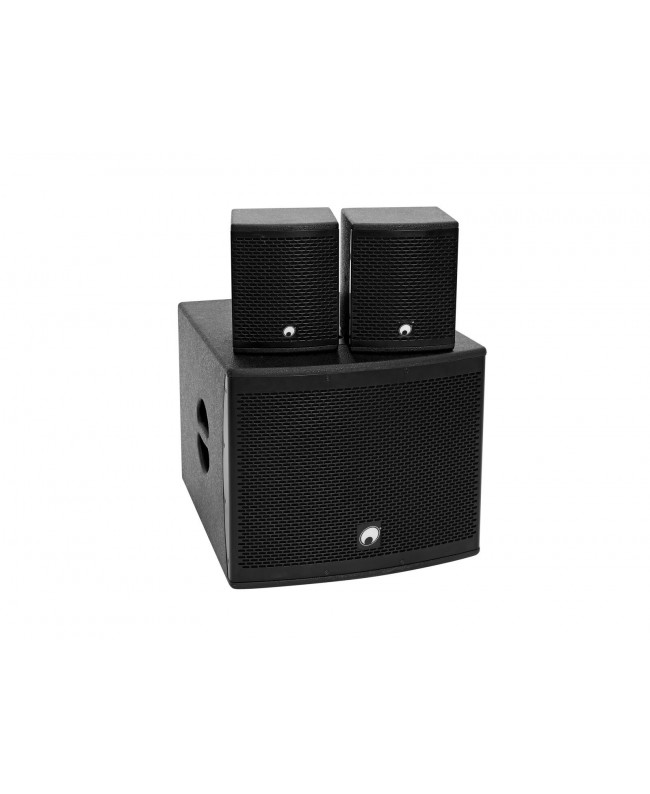

• Flexibly extendable with MOLLY-6 satellites for 2.1 and 4.1 configurations
• DSP-controlled class D amplifier (500 W + 2 x 100 W)
• Separate volume control for subwoofer and satellites
• Stereo/mono selection
• Digital signal processor
• DSP presets: FLAT; DJ; LIVE; VOICE
• The device is cooled by temperature-controlled fan
• Control via Bluetooth
• Operating range up to 10m
• Black metal grille with acoustic foam
• 2 Rugged carrying handles
• For application areas such as: Mobile djs / entertainer; Trade fair and shop fitting; installation; home entertainment; restaurants, bars and hotels; product presentations and lectures

Scope of delivery

• 1 x bass
• 1 x power cord
• 2 x speaker cable
• 1 x user manual
• 1 x declaration of conformity

• Power supply: 230 V AC, 50 Hz
• Power consumption: 1000 W
• Protection class: Protection class I
• Output power: 1 x 500 W RMS, 2 x 100 W RMS (8 ohms), 2 x 200 W RMS (4 ohms)
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Device fuse: 5 x 20 mm, T 5 A fuse replaceable
• Frequency range: 40 - 160 Hz
• Sensitivity: 103 dB
• Max. SPL: 128 dB
• DSP: Digital signal processor
• DSP presets: FLAT; DJ; LIVE; VOICE
• Cooling: Temperature-controlled fan
• Control: Bluetooth
• Bluetooth device name: Omnitronic
• Range: Range up to 10m
• Attachment system: Flange: M20 thread
• Circuitry: Class D
• Control elements: Phase reversal switch, level control per channel, power switch, connect
• Controls: Softstart; short-circuit; limiter; Overvoltage; overheat
• Status LED: Signal, power, limit, fault, DSP presets
• Connections: Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 1 x 3.5 mm jack (stereo) mounting version, Input: line via 1 x stereo RCA, Output: line via 2 x 3-pin XLR, Output: top via 2 x speaker built-in socket (F)
• Input channels: 1 x stereo via combination socket or RCA or Bluetooth, channel control via rotary dial
• Speaker: 1 x woofer 12, Basket material: steel, Conematerial: cardboard/paper, Voice coil lows 3
• Type of speaker: Subwoofer
• Type of construction: Vented
• Carrying handle: 2 pc/pcs
• Material: Birch multiplex
• Color: Black, textured coating, painted
• Dimensions: Width: 47 cm, Depth: 57 cm, Height: 40 cm
• Weight: 22.10 kg
• Cable length: 3 m
