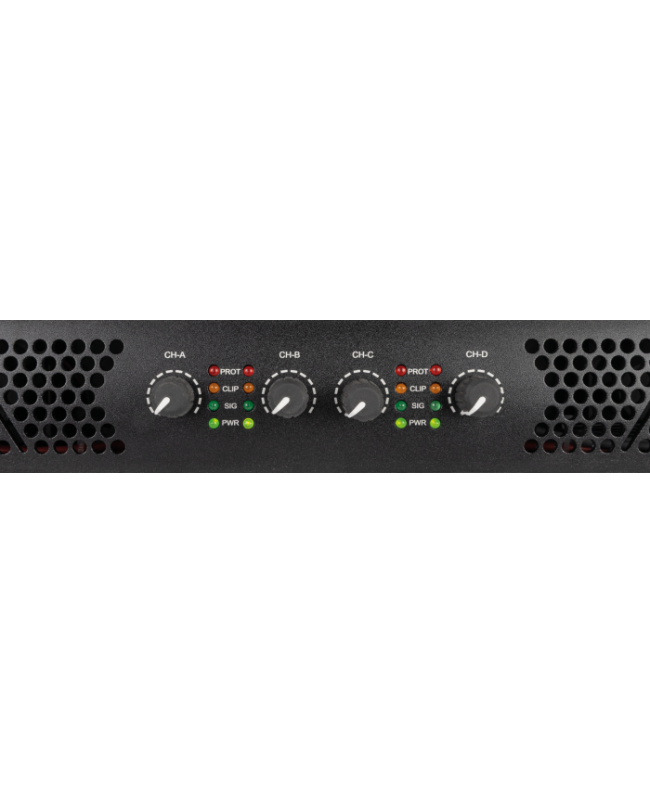

DAP MI-4.600

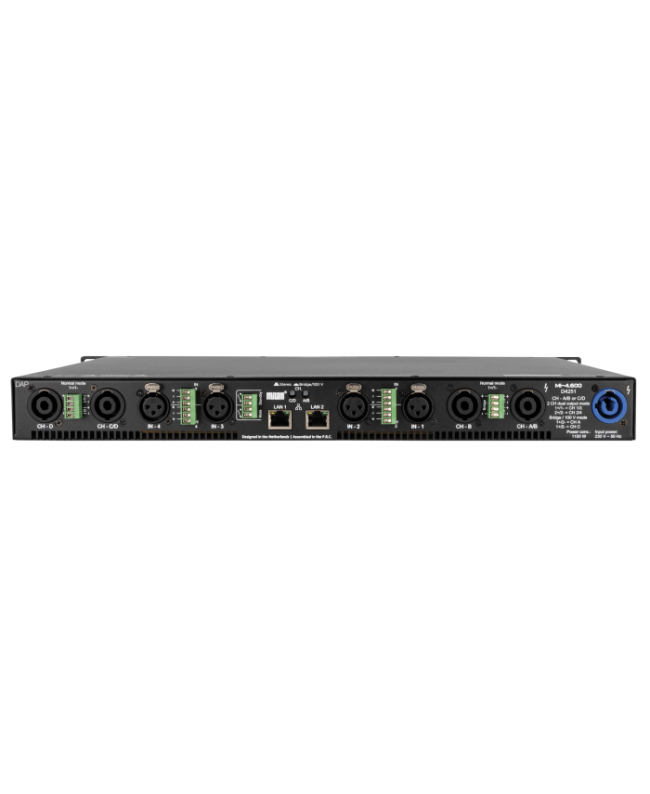

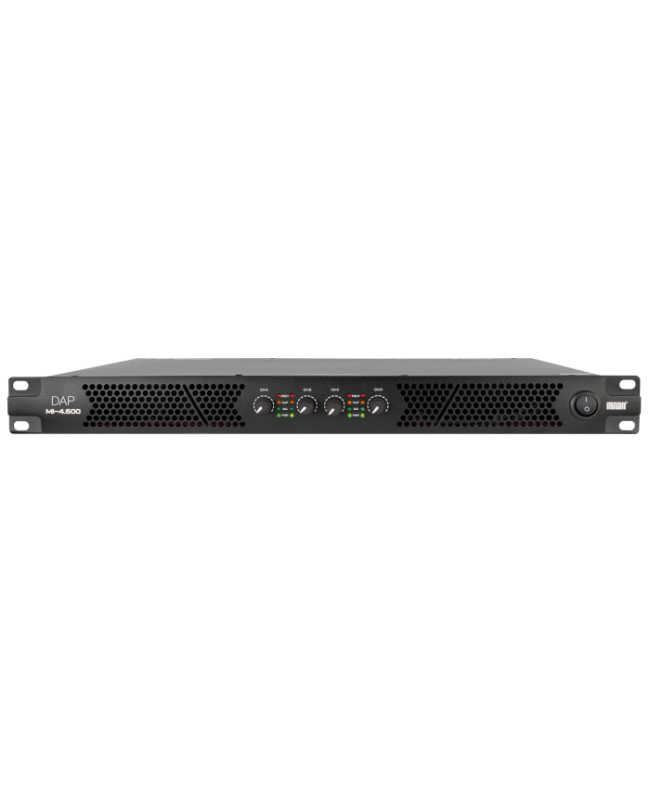

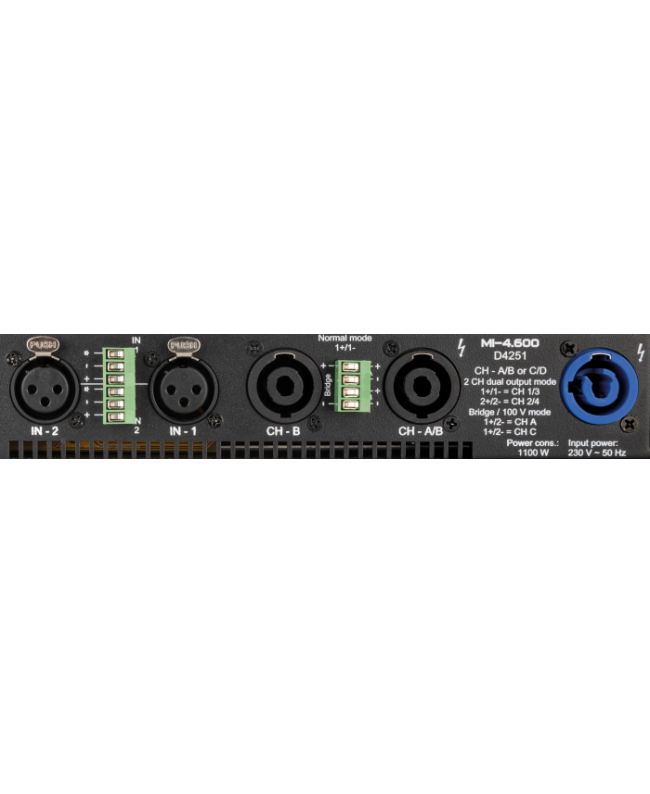

The DAP MI 4.600 is a compact 1U Class D installation amplifier that combines high output with advanced audio network capabilities and powerful system processing. Delivering 4x 600 W at 4 O, it and #x27;s purpose built for diverse environments including multi-zone commercial venues, theatres, conference centres and more. Thanks to an IP controlled DSP and Milan AVB certified digital input, the MI 4.600 integrates seamlessly into modern networked audio systems. For system designers handling mixed impedance infrastructures, there and #x27;s also bridge mode with 100 V support. Effortless connections in both fixed installations and rack setups are assured thanks to the terminal and 2-pole speaker outputs.

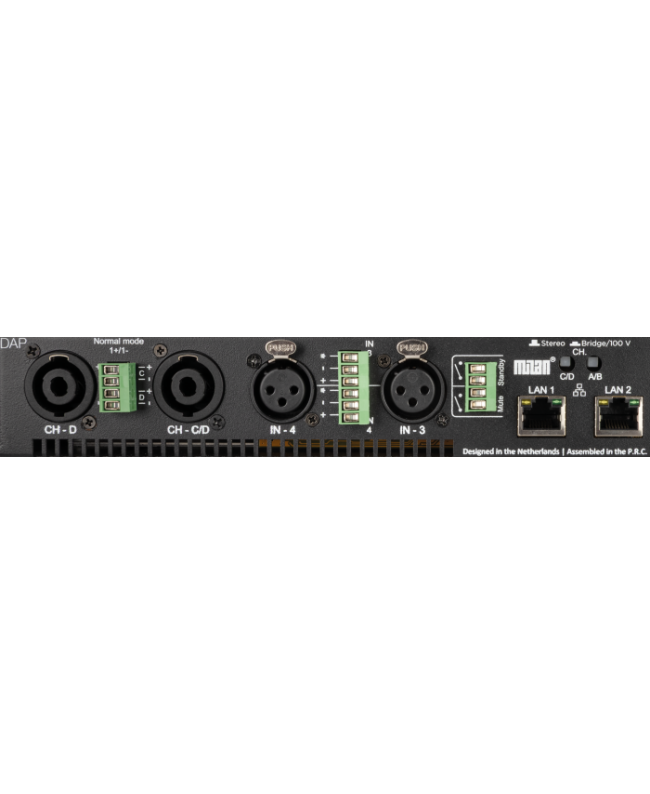

At the heart of the MI 4.600 is a Milan certified AVB interface that accepts four channels of digital audio via RJ45. A second RJ45 daisy chain port is available for DSP only networking, streamlining routing and monitoring across larger projects. System configuration is handled over IP using free PC or Mac software, giving installers and technicians clear visibility of channel levels, temperature and gain reduction in real time, whether they and #x27;re on site or connected remotely.

The MI 4.600 and #x27;s 48 kHz DSP processor provides deep, precise control over every zone. Each channel features a 10 band EQ on the input and a 10 band EQ on the output, plus an additional 5 band group EQ for tonal shaping across multiple channels. Crossover management includes high pass and low pass filters up to 24 dB, while FIR filtering with 144 taps per channel ensures excellent phase linearity. You and #x27;ll also find up to 10 ms of input and output delay and system protection is handled by RMS limiting inside the DSP, preserving clarity and headroom under demanding circumstances.

Dry relay contacts make it easy to silence all outputs instantly or enter standby mode to reduce power consumption when the system is idle. Together with its IP controlled DSP, these features make day to day operation dependable and intuitive.

From the sturdy 1U build to its flexible networking, the MI 4.600 is engineered for longevity and ease of use. The combination of Milan AVB digital audio, IP based software control, and installer centric options like bridging for 100 V lines, speaker and terminal outputs, and dry contact mute/standby means faster commissioning, cleaner racks and reliable, repeatable performance across every zone.

• Internal IP-controlled DSP
• Milan-AVB certified network input
• Mute and standby dry relay contacts
• 144 FIR taps per output
