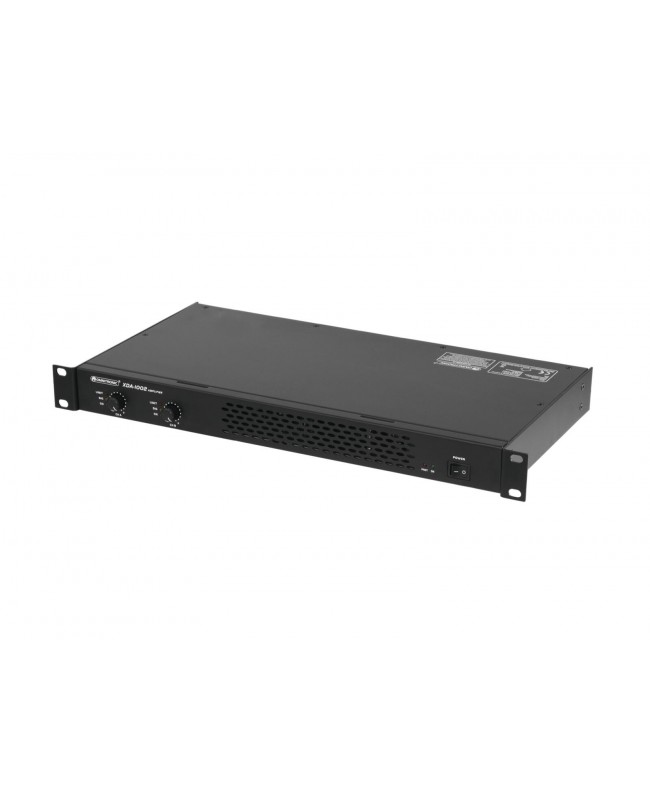

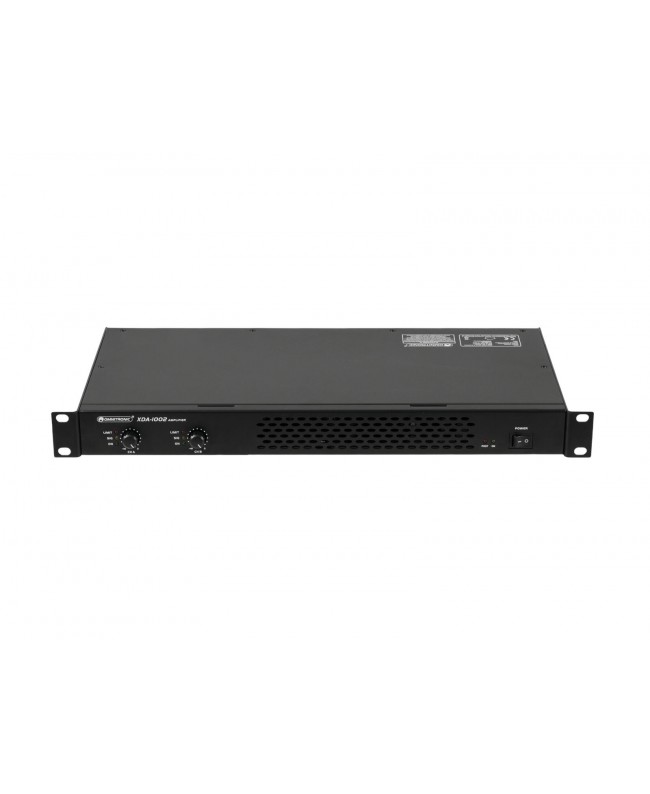

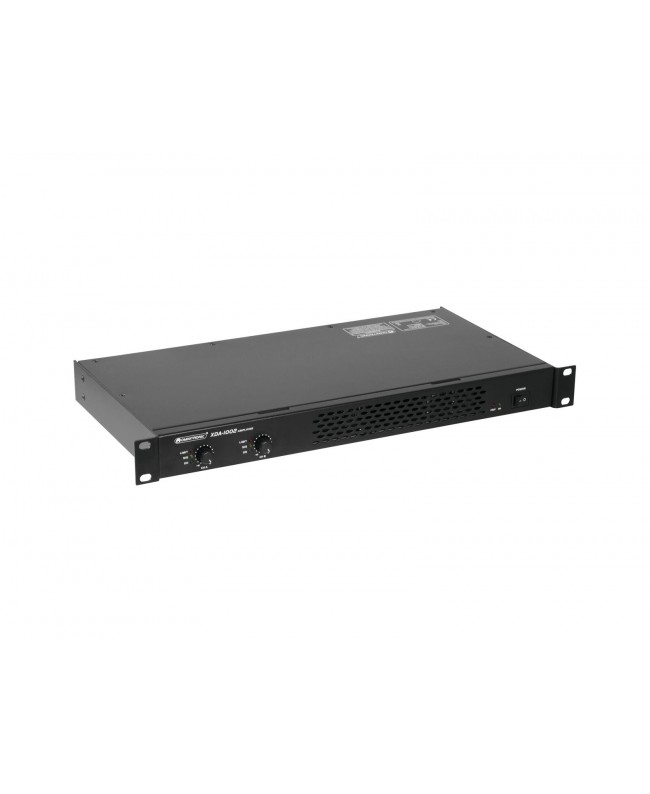

Omnitronic XDA-1002 Class D Amplifier

Scope of delivery

• 1 x amplifier
• 1 x user manual
• 1 x power cord

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 210 W 1/8 power
• Protection class: Protection class I
• Output power: 2 x 510 W RMS (4 ohms), 2 x 300 W RMS (8 ohms), 1000 W RMS bridged (8 ohms)
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Frequency range: 30 - 20000 Hz
• S/N ratio: 100 dB
• THD: 0.02 % at 1 kHz
• Cooling: Cooling fan
• Impedance: Input: 20 kOhm , bal., Input: 10 kOhm , unbal.
• Gain: 36 dB
• Housing color: Black
• Circuitry: Class D

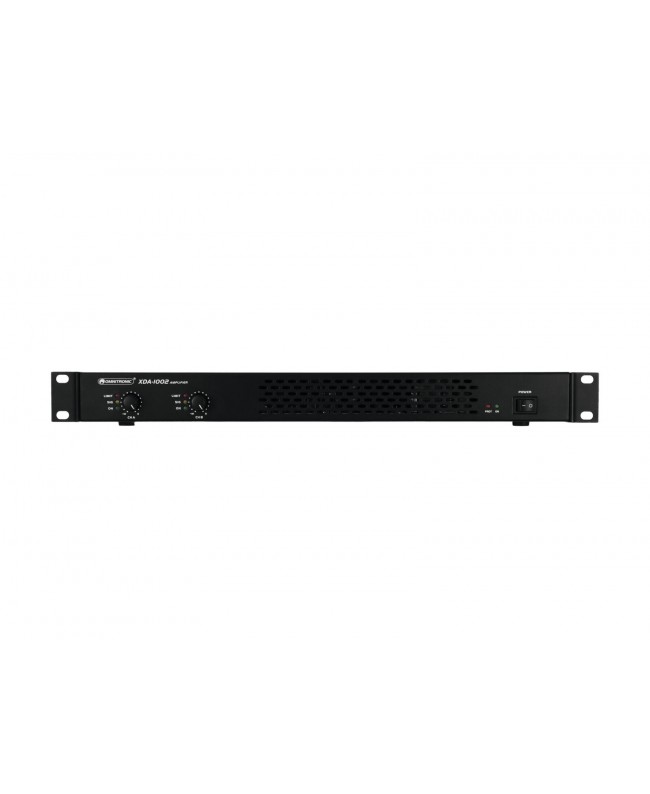

• Control elements: Power switch, level control per channel, mode switch (stereo/bridged), groundlift selector
• Controls: Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient; limiter
• Status LED: Power, signal, protect, limit

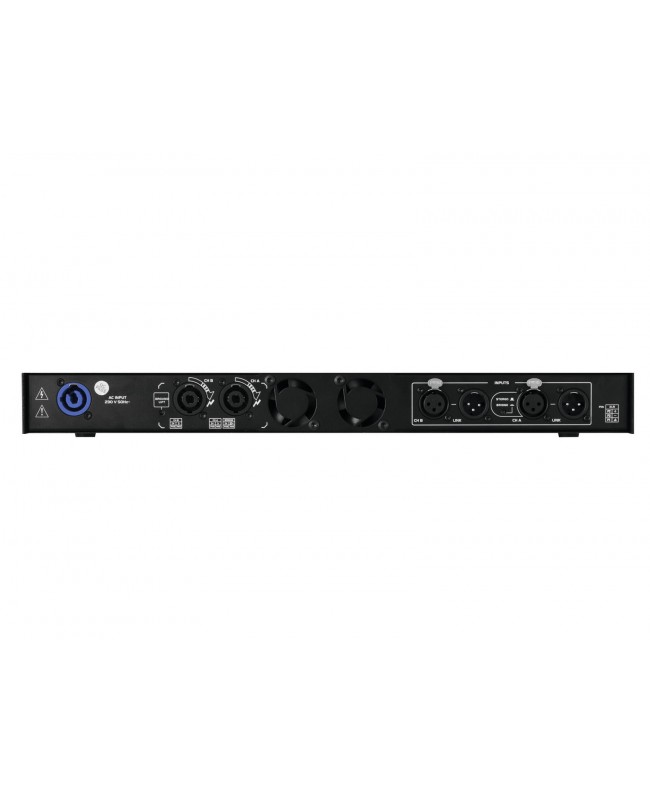

• Connections: Input: line via 2 x 3-pin XLR, Link: line via 2 x 3-pin XLR, Output: speaker via 2 x speaker built-in socket (F)
• Input sensitivity: 1.25 V
• Housing design: (19) 48.3 cm rack installation 1 U
• Dimensions: Width: 48.3 cm, Depth: 24 cm, Height: 4.45 cm
• Weight: 4.03 kg
