Fonestar Matrix Amplifier 5 in / 4 OUT4X60 W RMS Amplifiers
  • New

Fonestar Matrix Amplifier 5 in / 4 OUT4X60 W RMS

€1,698.00
Tax included

Matrix Amplifier 5 in / 4 OUT4X60 W RMS

Out of Stock

Free shipping

Compare

wishlist

Fonestar Matrix Amplifier 5 in / 4 OUT4X60 W RMS



  • FEATURES: Matrix and multichannel amplifier. Allocation matrix of 5 input channels to 4 output zones. 4 zones with speaker output and line-level output. Zones with independent volume control. Priority paging based on signal level and contact closure.
  • POWER SUPPLY: 4 x 60 W
  • RMS. RESPONSE: 50-20,000 Hz (-3 dB).
  • DISTORTION: THD+N 1%.
  • S/N RATIO: Microphone 60 dB, Aux/Line 75 dB.
  • PROTECTIONS: Overcurrent, overload, overheating and short-circuit protection. temperature-controlled fan cooling.
  • INPUTS: CH 1, 2 and 3 balanced microphone/line input with 15 V phantom, combo connector (XLR + 6.3 mm jack). microphone signal level: 2.8 mV RMS (-50 dBV) / 600 Ω. line signal level: 280 mV RMS (-15 dBV) / 15,000 Ω. CH 4 and 5 auxiliary: 2 x RCA connectors, signal level: 110 mV RMS (-18 dBV) / 50,000 Ω. auxiliary input
  • AUX: 3.5 mm jack connector, signal level: 25 mV RMS (-24 dBV). telephone paging: paging input with screw terminal connector, signal level: 316 mV RMS (-30 dBV) / 600 Ω.

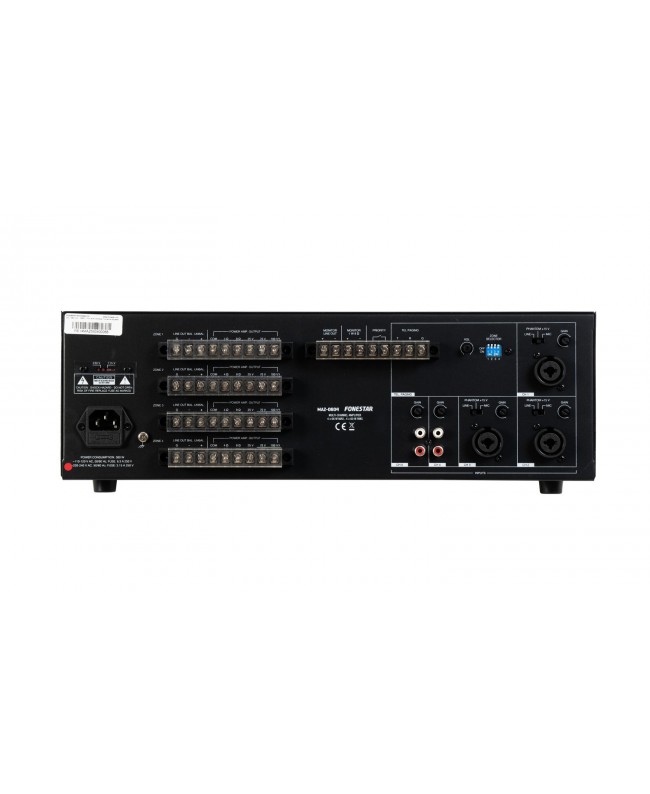

  • OUTPUTS: 4 x balanced lines for zones 1-4, with screw terminal connector, signal level: 1 V RMS. 1 x headphone monitor, connector: 6.3 mm jack. 1 x monitor on rear panel, with screw terminal connector, signal level: 900 mV RMS / 600 Ω and 1 W / 8 Ω per speaker.
  • IMPEDANCE: 4 zones: 4 and 8 Ω and lines 100, 70 and 25 V, with screw terminals.
  • Input priority: input CH 1 and telephone paging have priority over all other inputs according to signal level. inputs CH 1, 2, 3 and telephone paging have priority over auxiliary inputs by contact closure.

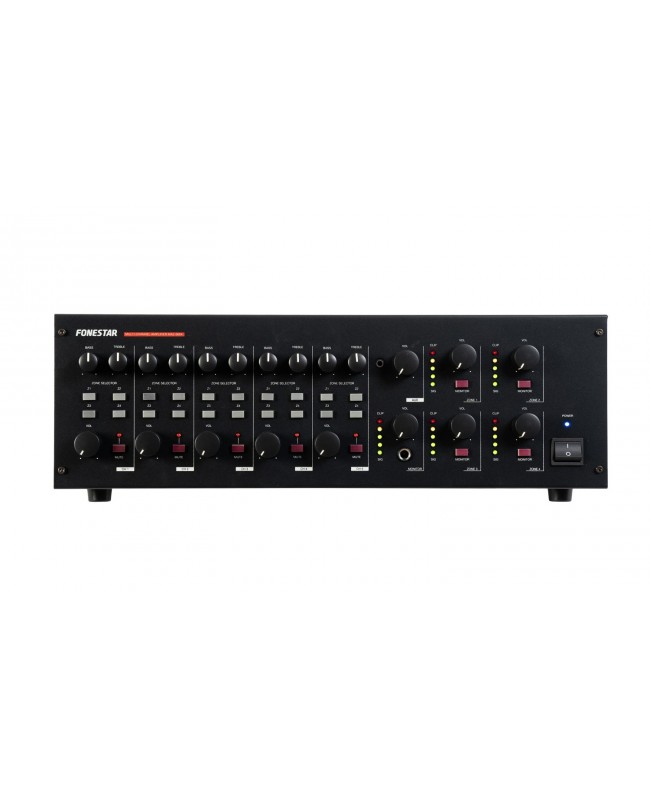

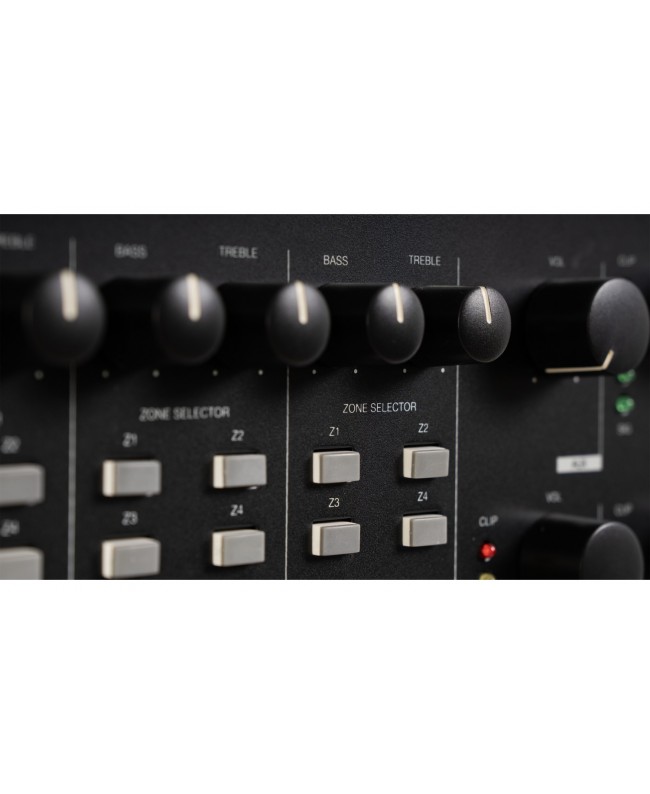

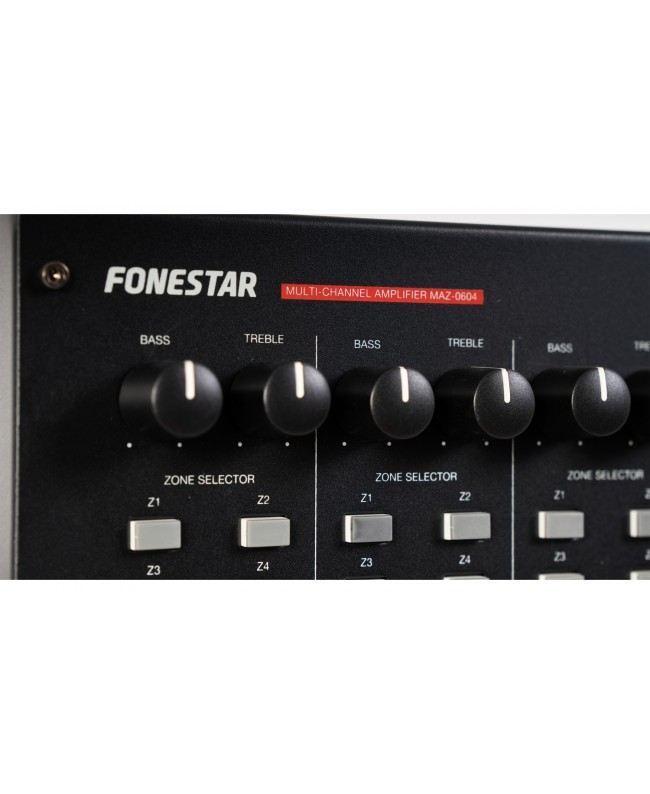

  • CONTROLS: Channels 1-5: gain, bass, treble, volume and zone assignment. telephone paging: volume and zone selector. zones 1-4: volume and monitor selector. monitor: volume control. input
  • AUX: volume control.
  • Operation: -20º ~ 45ºC. storage: -20º ~ 40ºC.
  • MAXIMUM HUMIDITY: 0.7.
  • POWER SUPPLY: 230/115 V AC 50/60
  • Hz. POWER CONSUMPTION: 380 W.
  • FUSE: 230 V AC 3.15 A / 115 V 6.3 A.
  • DIMENSIONS: 420 x 133 x 375 mm (depth). 3U 19 rack.
  • WEIGHT: 12.8 kg.

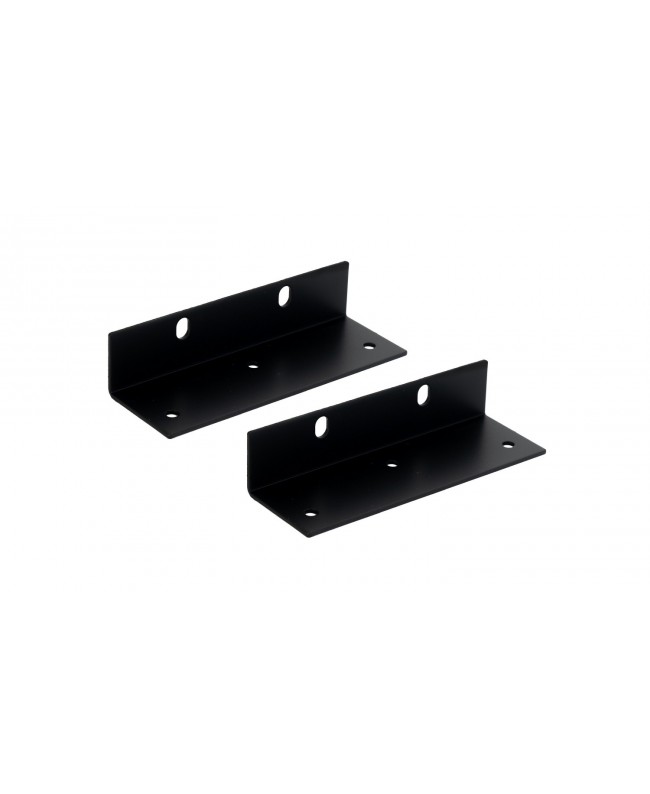

  • ACCESSORIES: Rack mounts.

MAZ-0604
