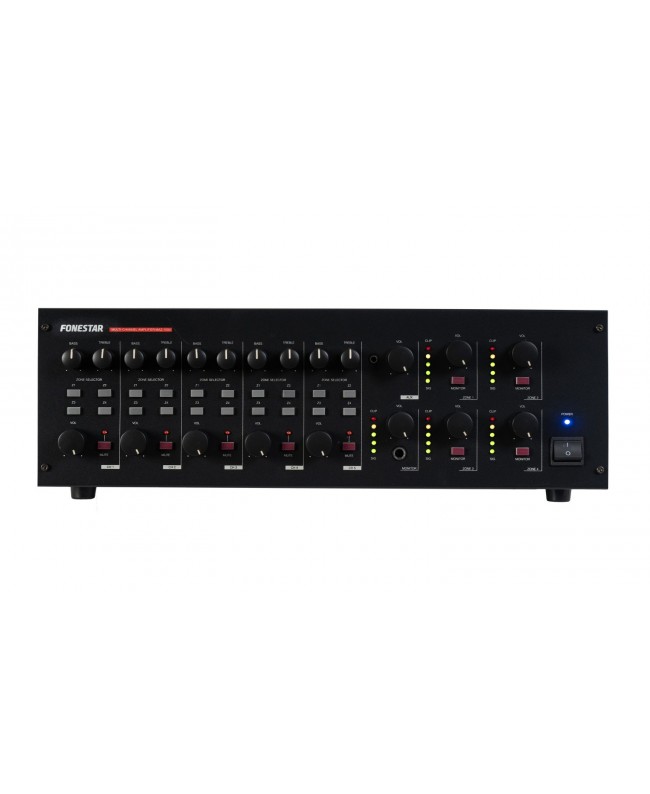

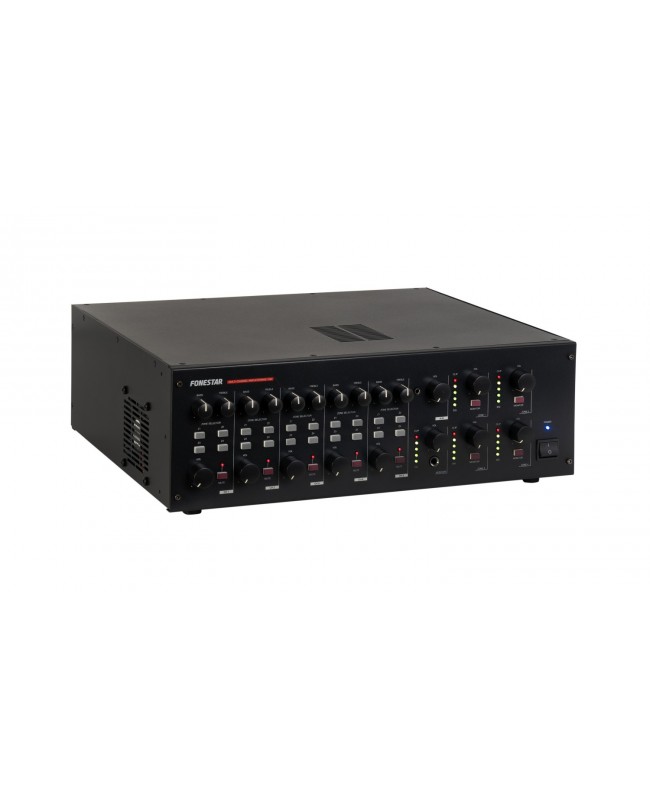

Fonestar Matrix Amplifier 5 in / 4 OUT4X150 W RMS



  • FEATURES: Matrix and multichannel amplifier. Matrix allocation of 5 input channels to 4 output zones. 4 zones with speaker and line-level output. Zones with independent volume control. Priority alerts by signal level and contact closure.
  • POWER: 4 x 150 W
  • RMS. RESPONSE: 50-20,000 Hz (-3 dB).
  • THD+N: 1%.
  • SIGNAL-to-noise ratio: 60 dB microphone, 75 dB aux/line.
  • PROTECTIONS: Overcurrent, overload, temperature and short circuit. cooling by temperature-controlled ventilation.
  • INPUTS: CH 1, 2 and 3 balanced microphone/line input with 15V phantom, combo connector (XLR + 6.3 mm jack). microphone signal level: 2.8 mV RMS (-50 dBV) / 600 Ω. line signal level: 280 mV RMS (-15 dBV) / 15,000 Ω. Auxiliary CH 4 and 5, 2 x RCA connector, signal level: 110 mV RMS (-18 dBV) / 50,000 Ω. auxiliary AUX input, 3.5 mm jack connector, signal level: 25 mV RMS (-24 dBV). telephone paging, threaded terminal connector, signal level: 316 mV RMS (-30 dBV) / 600 Ω.

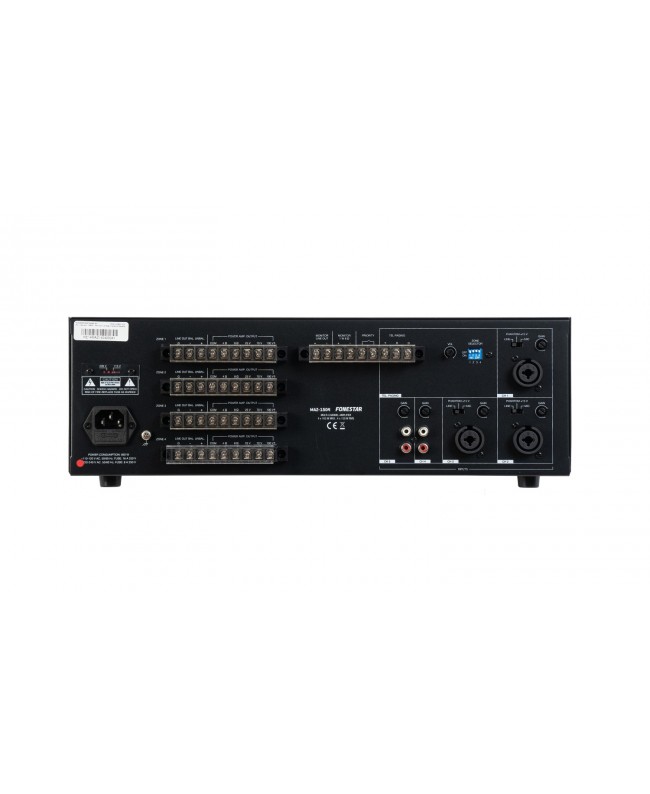

  • OUTPUTS: 4 balanced lines for zones 1-4, with threaded terminal connector, signal level: 1 V RMS. 1 headphone monitor, 6.3 mm jack connector. 1 monitor on rear panel, with threaded terminal connector, signal level: 900 mV RMS / 600 Ω and for speaker: 1 W / 8 Ω.
  • IMPEDANCE: 4 zones: 4 and 8 Ω, and 100, 70 and 25 V lines, with threaded terminals.

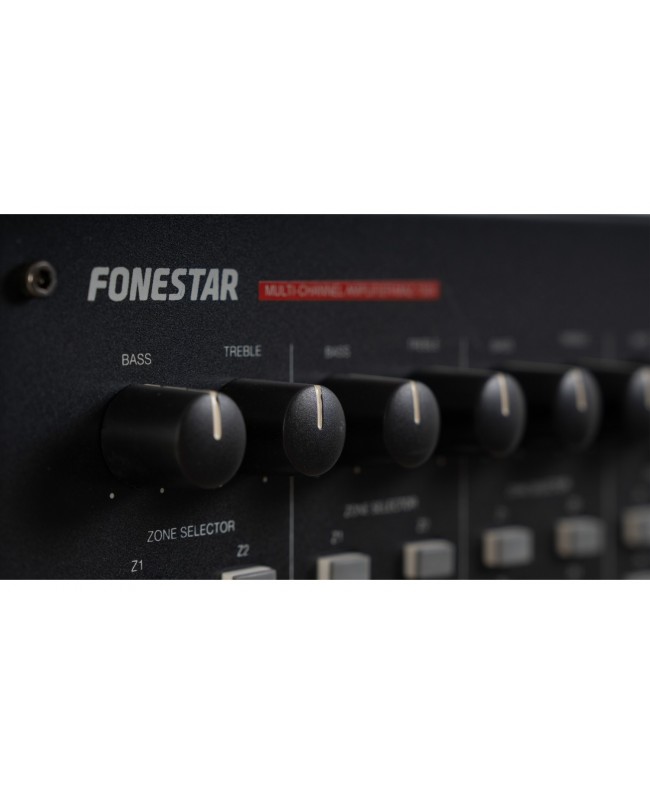

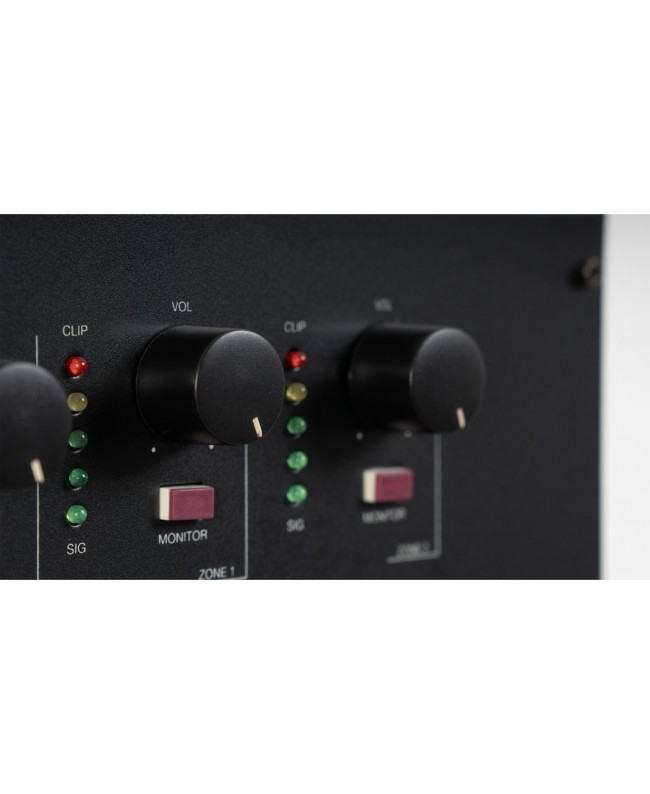

  • CONTROLS: CH 1-5: gain, bass, treble, volume and zone assignment. telephone paging: volume and zone selector. zones 1-4: volume and monitor selector. monitor: volume. auxiliary: volume.
  • Input priority: input CH 1 and telephone paging have priority over all other inputs according to signal level. inputs CH 1, 2, 3 and telephone paging have priority over auxiliary inputs by contact closure.
  • Operation: -20º ~ 45ºC.
  • Storage: -20º ~ 40ºC.
  • MAXIMUM HUMIDITY: 70%.
  • POWER SUPPLY: 230/115 V AC 50/60
  • Hz. POWER CONSUMPTION: 950 W.
  • FUSE: 230 V AC 8 A / 115 V 16 A.
  • DIMENSIONS: 420 x 133 x 375 mm (depth). 3U 19 rack.
  • WEIGHT: 17.6 kg.

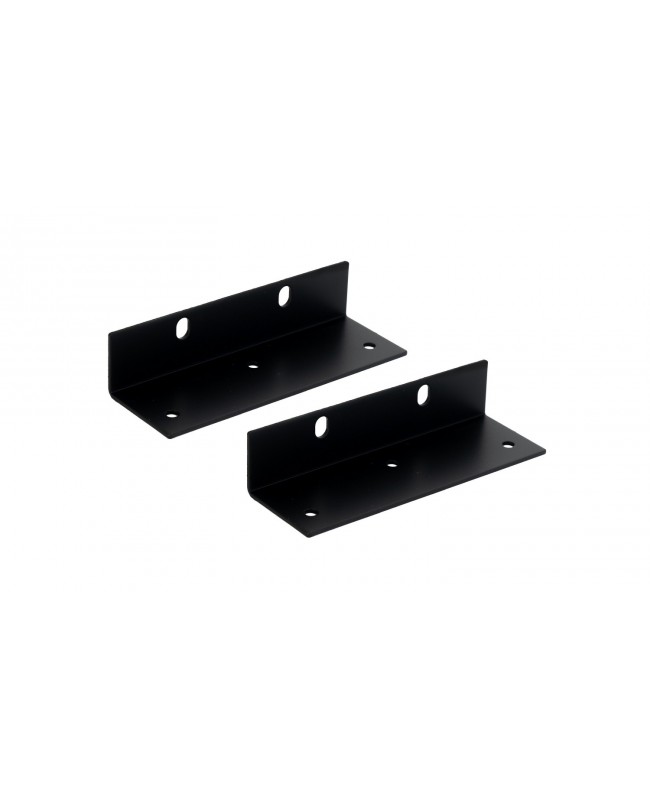

  • ACCESSORIES: Rack mounts.

MAZ-1504
