DAP CA-4150
  • -9%
  • New

DAP CA-4150

€445.00
€404.00 -9%
Tax included
Lowest price within the last 30 days: €404.00

4-Channel compact amplifier (4x 150 W)

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 05/08/2026? Order within 2 hours and 41 minutes

Free shipping

Compare

wishlist

DAP CA-4150

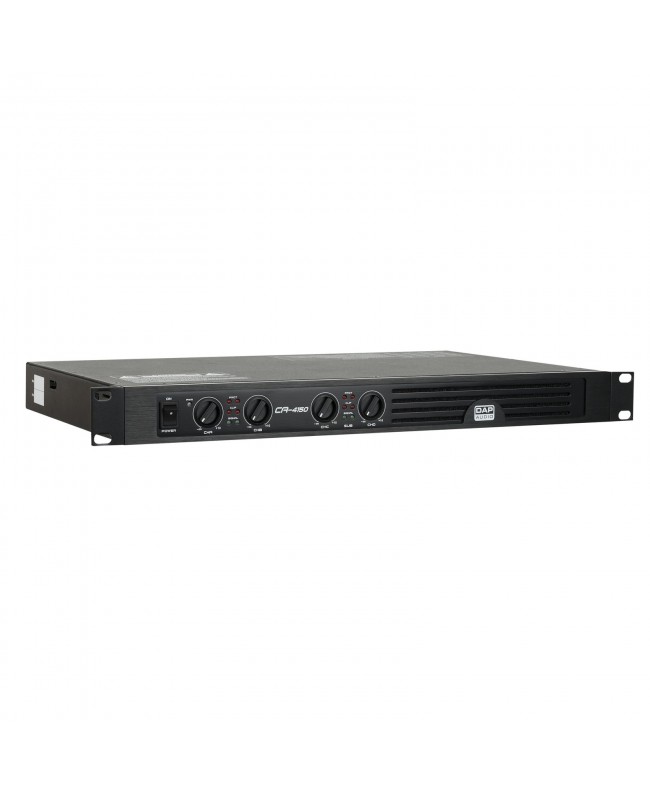

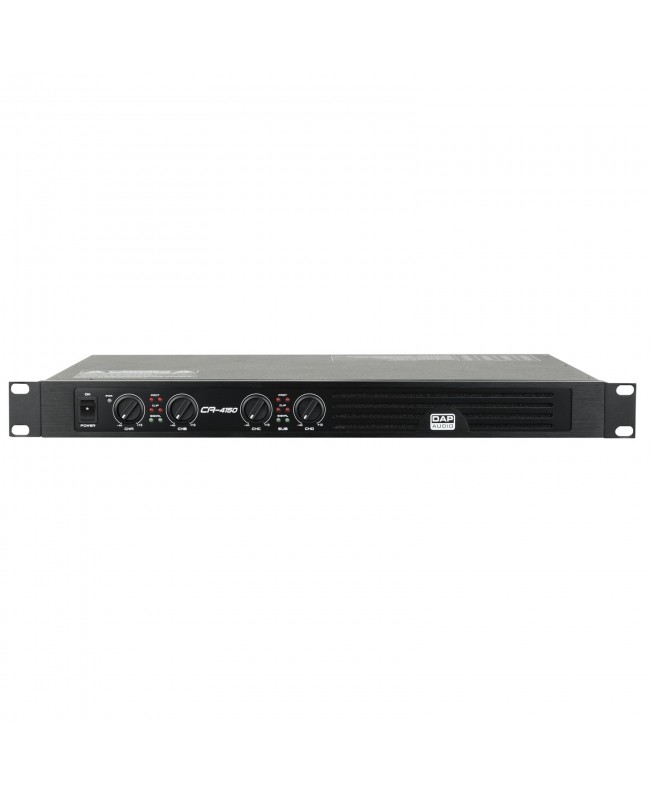

The DAP CA-4150 is a 4x 150 watt amplifier with configurable built-in Crossover. Equipped with Class D technology and SMPS, the CA-4150 has all the necessary functionalities for today's user.

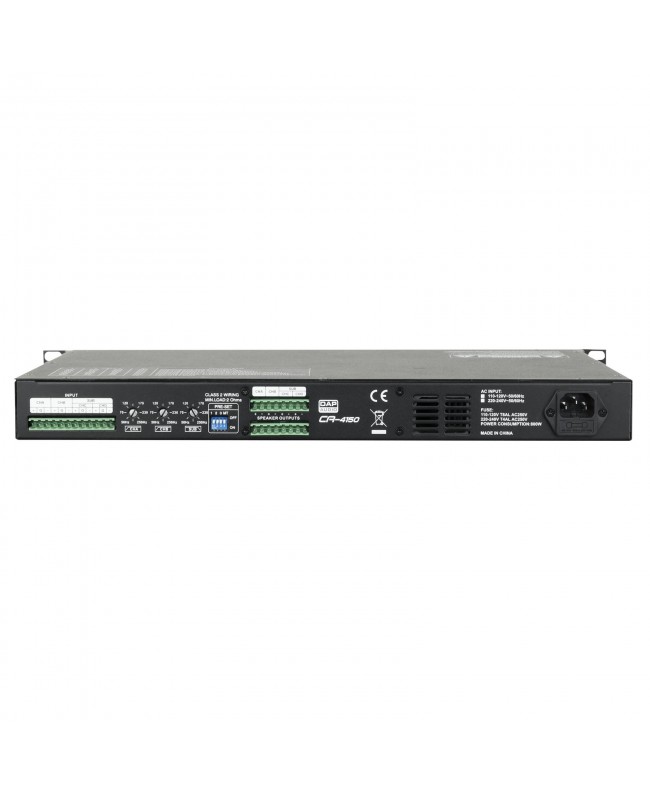

This 4-channel model has terminal inputs and outputs with the option to switch between stereo and bridge mode. In addition, the gain is adjustable per channel.

When a channel signal is causing distortion, a LED signal is indicating you to decrease the source signal level. It is not only protected from clipping, but also from overloading and overheating due to soft start technology. The CA-4150 can be built into a 19-inch rack case and has a 1 unit height.

  • Configurable built-in crossover for top-sub combination
  • Class D amp, SMPT and Soft Start technology
  • Advanced protection circuits and indicator LEDs
  • Stereo and bridge mode
  • 1U suitable for 19 rack
  • 2 Ohms Stable: Yes
  • Output per Channel into 8 ohms at 1 kHz: 90 W
  • Output per Channel into 4 ohms at 1 kHz: 150 W
  • Output per Channel into 2 ohms at 1 kHz: 230 W
  • Bridge Output into 8 ohms at 1 kHz: 190 W
  • Bridge Output into 4 ohms at 1 kHz: 275 W
  • Output per Channel into 8 ohms from 20 Hz - 20 kHz: 90 W
  • Output per Channel into 4 ohms from 20 Hz - 20 kHz: 150 W
  • Output per Channel into 2 ohms from 20 Hz - 20 kHz: 230 W
  • Bridge Output 8 ohms from 20 Hz - 20 kHz: 190 W
  • Bridge Output 4 ohms from 20 Hz - 20 kHz: 275 W
  • Output Channels: 4
  • Output Gain: 28 dB
  • Output Mode: 4-channel / Bridge / Stereo
  • Output Connector: Terminal
  • Mono Inputs: 4
  • Mono Input Connector: Terminal
  • Mono Input Impedance: 20000 Ω
  • Unbalanced Mono Input Sensitivity: 1 dBv
  • THD Level %: 0.1%
  • Signal-to-noise Ratio: 96 dB
  • Slew Rate: 15 V/μs
  • Amp Technology: Class D
  • Damping Factor: 180 :1
  • Crosstalk: 70 dBu
  • Frequency Response Minimum: 20 Hz
  • Frequency Response Maximum: 20000 Hz
  • DSP: No
  • Crossover Filter Types: Built-in Crossover
  • Power Supply: 220-240 V AC 50 Hz
  • SMPS: Yes
  • Power Consumption: 636 W
  • Fuse: 4 A
  • Power Connector In: IEC
  • Amplifier Airflow: Front to back
  • Amplifier Cooling: Radial Fan
  • Height (mm): 44 mm
  • Width (mm): 484 mm
  • Length (mm): 281 mm
  • Installation Depth (Excl. Connector): 281 mm
  • Flightcase Size: 19
  • Rack Units: 1 U
  • Housing: Metal
  • Colour: Black
  • Finish: Powder Coating
  • Weight: 4.85 kg
  • IP Rating: IP20 (indoor use only)
  • Handles: No
  • Electronic Protection: Clip limiter (fixed) / DC voltage / Overheat / Overload / Short circuit / Softstart / Thermal
  • LED Indicators: Clip / Power / Protect / Signal
  • Included Cables: IEC cable

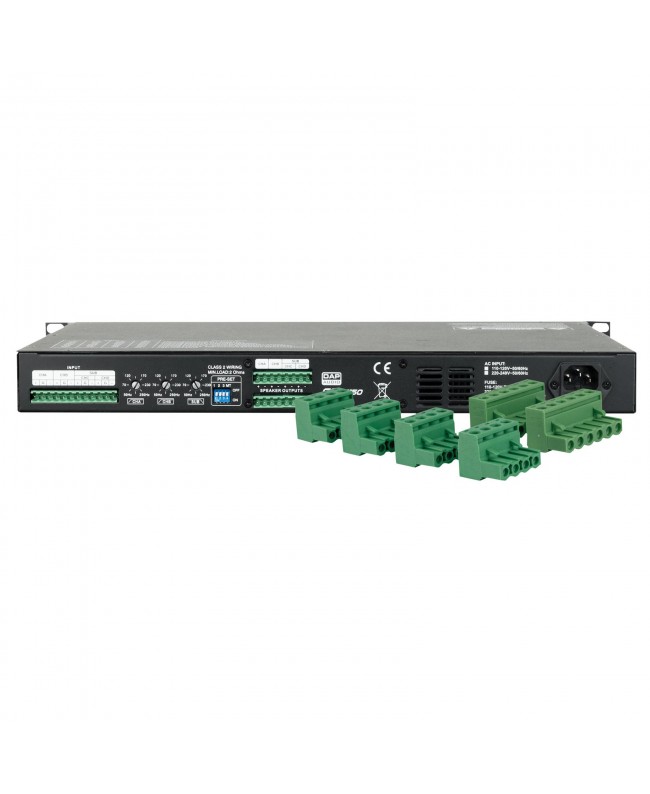

  • Included Accessories: Green terminal connector

D4512

Data sheet

Channels
4 channels
Color
Black
Giorni di elaborazione
3
