DAP PA-5500TU Amplifiers
  • -18%

DAP PA-5500TU

€608.00
€500.00 -18%
Tax included
Lowest price within the last 30 days: €500.00

2-Channel amplifier (2x 240 W) with tuner and network player

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 23/09/2026? Order within 0 hours and 23 minutes

Free shipping

Compare

wishlist

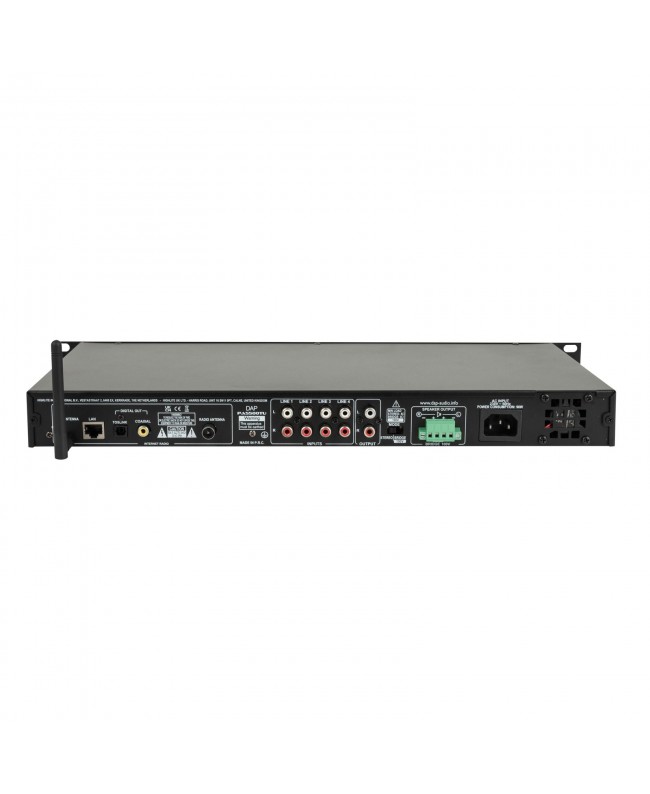

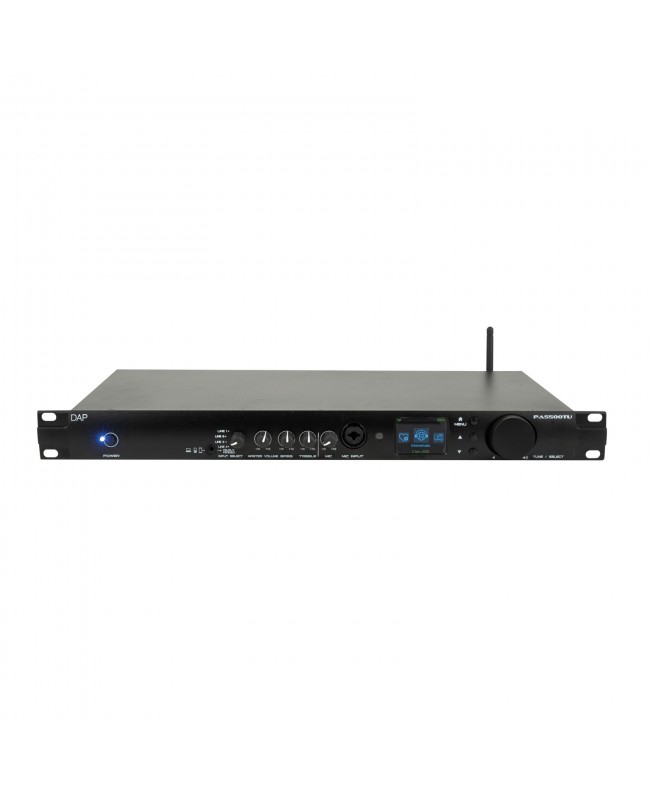

DAP PA-5500TU



The DAP PA-5500TU is an internet radio with integrated 460 W/100 V amplifier and multi media player, suitable for placement in 1U of a 19-inch rack. It supports multiple (wireless) media sources, like DAB+, FM radio, AUX in/out and BT. Equipped with an IR remote controller, you can easily set the volume, EQ settings, alarm et cetera of this high quality class D amplifier.

  • 1U 19 Internet radio with 2x 250 W/8 Ω or 1x 250 W 100 V amp
  • Supports DAB+, FM radio, BT 4.2, and AUX in/out
  • Suitable for public places like fitness centres and shops

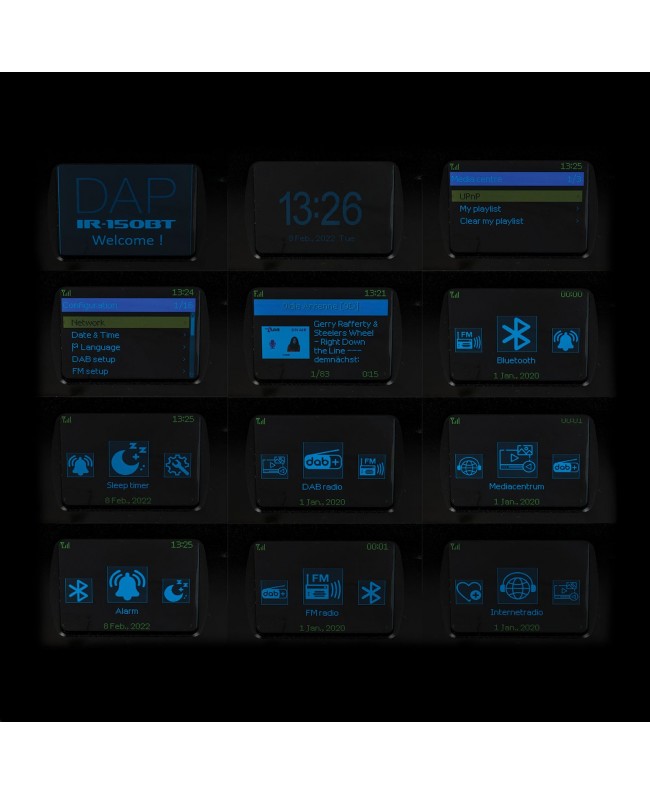

  • 2.4 TFT display
  • 3.5 mm jack and 4x RCA input
  • XLR microphone input (no phantom power)
  • IR remote included
  • Power Amplifier RMS Output: 460 W
  • Output per Channel into 8 ohms at 1 kHz: 240 W
  • Bridge Output 100 V: 260 W
  • Output Channels: 2
  • Output Mode: Bridge / Stereo
  • Output Impedance: 4 Ω
  • Output Connector: Terminal
  • Mono Inputs: 1
  • Mono Input Connector: 3-pin XLR
  • Stereo Inputs: 4
  • Stereo Input Connector: RCA
  • Transformer: 100 V
  • Supported Audio Files: AAC/AAC+ / FLAC / MP3
  • THD Level %: 0.1%
  • Signal-to-noise Ratio: 100 dB
  • Amp Technology: Class D
  • Frequency Response Minimum: 20 Hz
  • Frequency Response Maximum: 20000 Hz
  • Parametric Main Equalizer: 2 Bands
  • BT: No
  • Tuner: FM / DAB+ / Internet Radio
  • FM Frequency Start: 87 MHz
  • FM Frequency End: 108 MHz
  • FM Antenna Impedance: 75 Ω
  • DAB+ Frequency Start: 174.928 MHz
  • DAB+ Frequency End: 239.2 MHz
  • Display: TFT
  • Display Size: 2.4
  • Power Supply: 220-240 V AC 50 Hz
  • SMPS: Yes
  • Power Consumption: 585 W
  • Power Connector In: IEC
  • Height (mm): 44 mm
  • Width (mm): 483 mm
  • Depth (mm): 230 mm
  • Rack Units: 1 U
  • Material: Metal
  • Housing: Metal
  • Colour: Black
  • Finish: Powder Coating
  • Weight: 3.2 kg
  • IP Rating: IP20 (indoor use only)
  • Amplifier Airflow: Front to back
  • Amplifier Cooling: Radial Fan
  • Electronic Protection: Overload / Short circuit
  • LED Indicators: Power
  • Maximum Ambient Temperature: 40 °C
  • Minimum Ambient Temperature: 0 °C

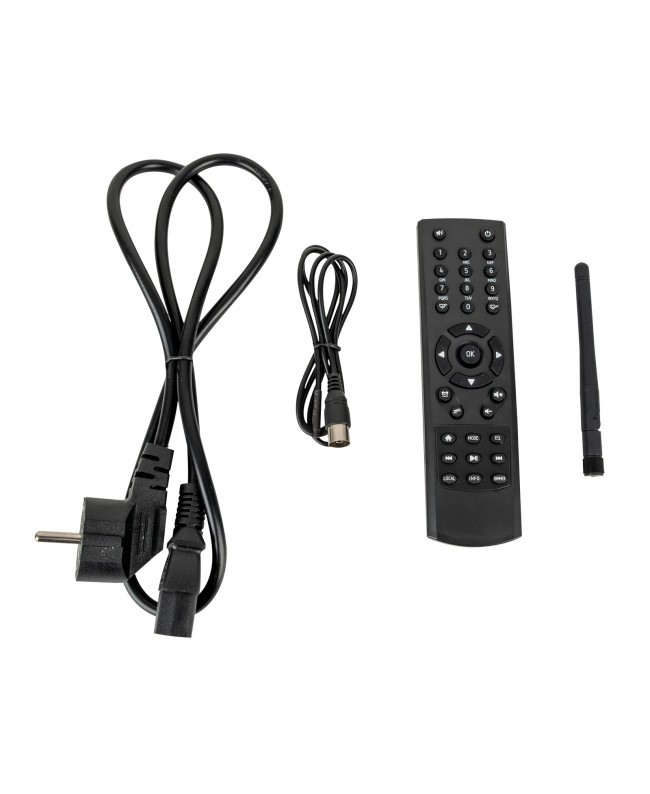

  • Included Cables: IEC cable
  • Included Accessories: FM Antenna / WiFi antenna
  • Included Remotes: IR Remote

D6175

Data sheet

Channels
2 channels
Color
Black
Giorni di elaborazione
5
Power (RMS)
200–500 W
