Palmer PB 10

€2,011.00
€1,244.00 -38%
Tax included
Lowest price within the last 30 days: €1,244.00

Press Patch Box 10-Channel

Qty

In Stock

Delivery

Do You want Your order by Friday, 24/07/2026? Order within 5 hours and 8 minutes

Free shipping

Compare

wishlist

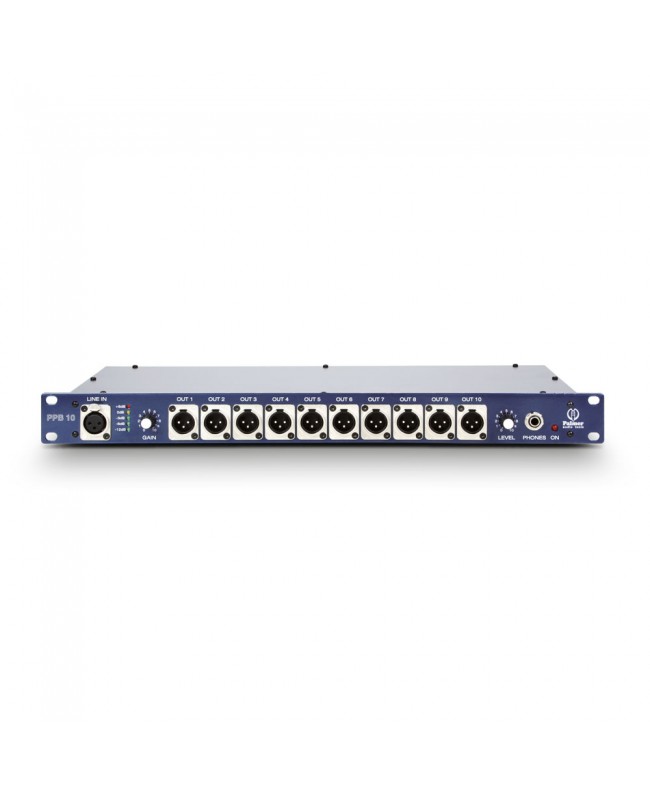

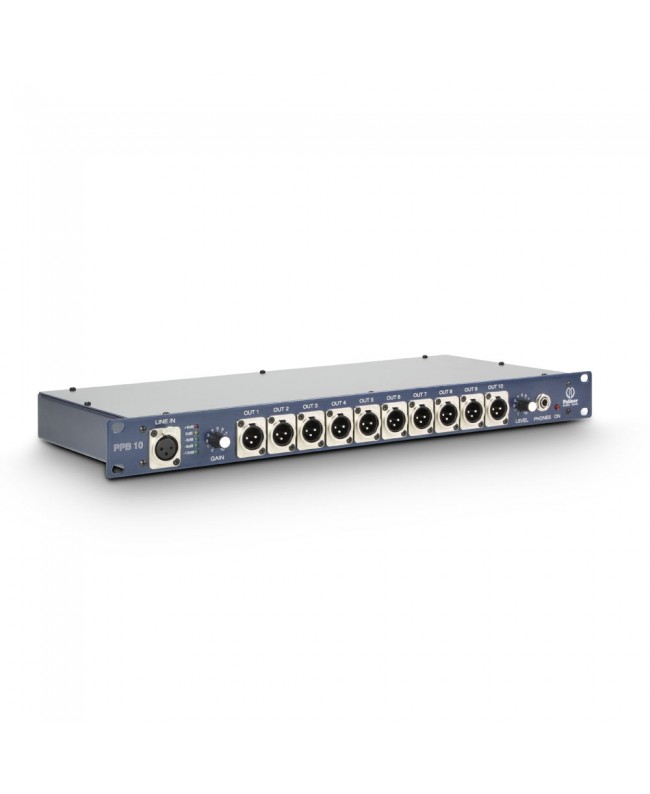

Palmer PB 10

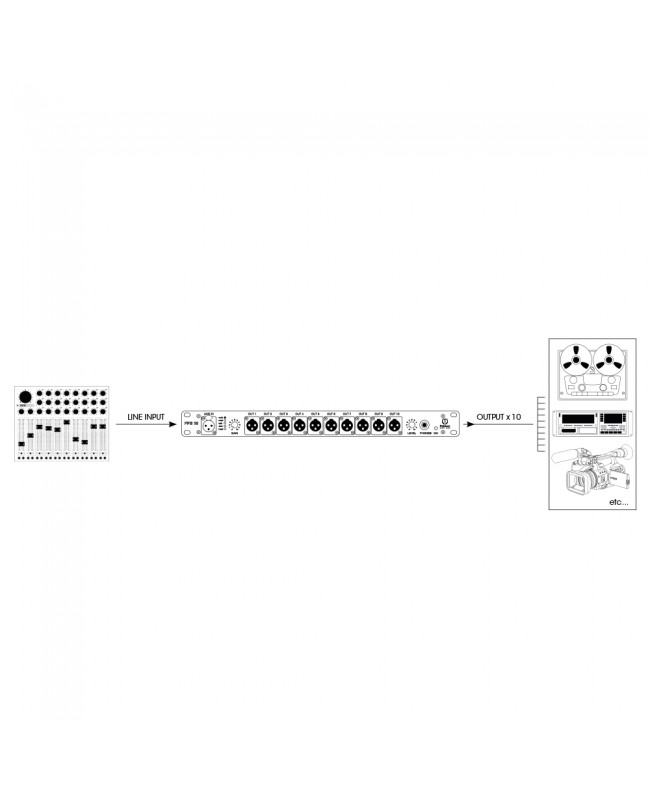

The PPB10 is a compact version of the well known and established PPB20 from Palmer. The PPB10 is a 10 channel audio splitter for press conferences and other applications. On a transformer split basis, one line input is split out to ten outputs.

  • All inputs and outputs are balanced transformer isolated
  • Extremely reliable: Should one output be shorted, the other outputs remain unaffected
  • Line input and outputs
  • Adjustable input gain (-8 to +25dB)
  • Level meter
  • Headphone output to monitor the input level, headphone volume adjustable

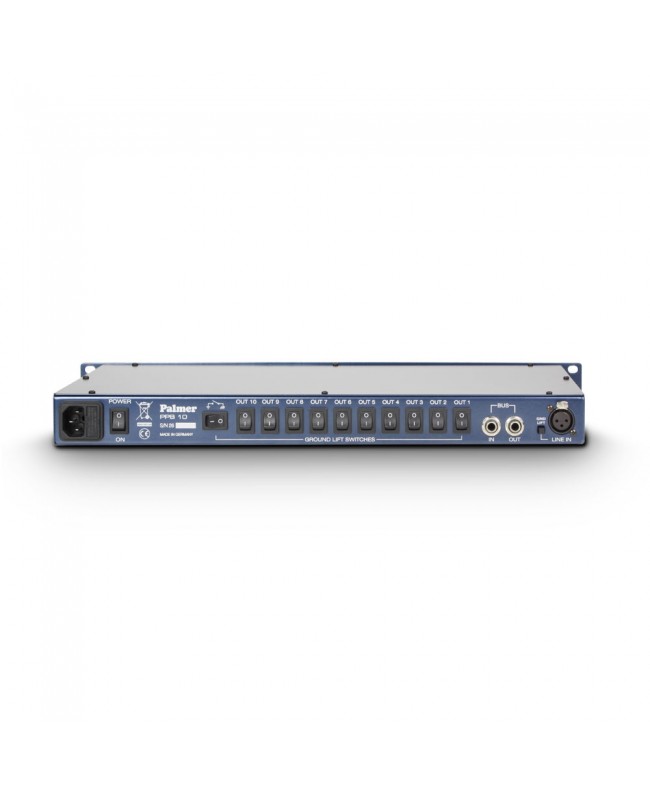

  • Individual ground lift switches for each output
  • Ground Lift switch for the input
  • Expandable setup thanks to the Bus In/Out sockets - allowing you to cascade numerous PPB10 (or PPB20)
  • Product type: Splitters
  • Type: line split
  • Split type: 1 in 10
  • Channels: 1
  • Number of inputs: 1
  • Input connectors: XLR
  • Max. input level: + 20 dB
  • Adjustable input: Yes
  • Number of split-outputs per canal: 10
  • THRU outputs/channel: 1
  • Max. output level: + 4 dB
  • Nominal power consumption: 5 W
  • Maximum power consumption: 8 W
  • Output connectors: XLR
  • Adjustable output: No
  • Transformer isolated outputs: Yes
  • Controls: Power
  • Controls: ground lift
  • Controls: input gain
  • Controls: phones level
  • Power supply: integrated (115 / 230 V)
  • Cabinet material: sheet steel
  • Cabinet surface: Powder coated
  • Width: 480 mm
  • Width: 19
  • Depth: 205 mm
  • Height: 45 mm
  • Height: 1 U
  • Weight: 4,18 kg

PPB10

Data sheet

Inputs onboard
1 input
Channels
1 channel
