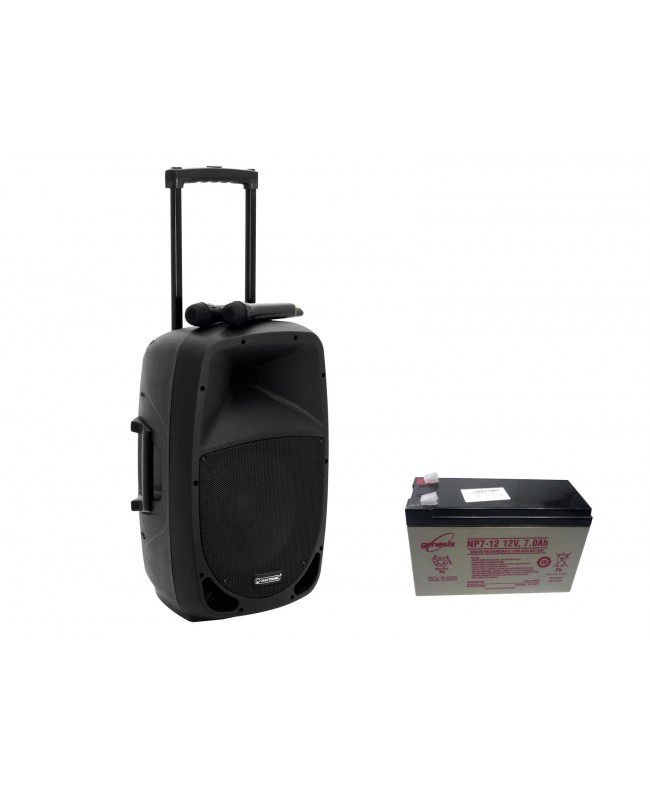

Omnitronic Set MES-12BT2 + Battery

Scope of delivery

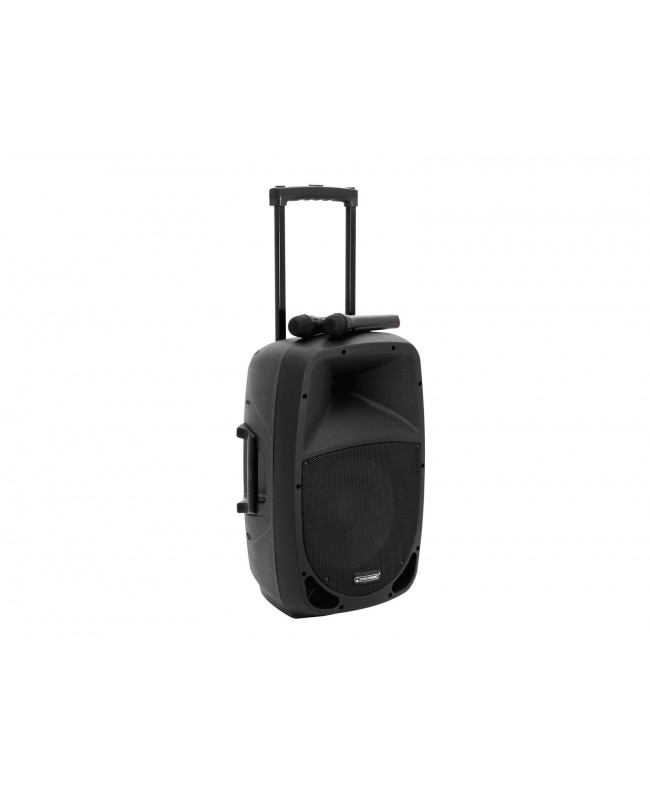

1 x OMNITRONIC MES-12BT2 Wireless PA System

• 1 x compact cabinet speaker
• 2 x microphone
• 2 x antenna
• 1 x power cord
• 1 x user manual
• 1 x remote control

• Weight: 13.18 kg
• Power supply: 230 V AC, 50 Hz, Or, 12V DC
• Power consumption: 75 W
• Protection class: Protection class I
• Output power: Max. 90 W, 45 W RMS
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided), Battery/battery pack (optional), Mains input via spring terminal
• Device fuse: 5 x 20 mm, T 1 A fuse replaceable
• Frequency range: 62 - 18000 Hz
• Sensitivity: 90 dB (1W/1m)
• Max. SPL: 109 dB
• Control: Bluetooth
• Bluetooth device name: OMNITRONIC
• Frequency stability: +- 0.005 %
• Frequency selection: Fixed frequencies
• Attachment system: Flange: Ø 35mm
• Control elements: Power switch, Master control, level control per channel, echo effect control, tone control; audio player
• Status LED: Power, charge status indicator, clip, microphone
• Connections: Antenna via 2 x BNC (F), Input: microphone via 2 x 6.3 mm plug (unbal.), Input: line via 1 x stereo RCA, Output: line via 2 x RCA (F) mounting version
• Equalizer: Master: 1 x graphic equalizer 5-band stereo, Centre frequency: 100Hz/330Hz/1.1kHz/3.3kHz/6.8kHz
• Speaker: 1 x woofer 12, Basket material: steel, Conematerial: cardboard/paper, 1 x horn 1
• Type of speaker: Compact cabinet speaker
• Carrying handle: 2 pc/pcs
• Transport aid: Trolley
• Switch: On/off switch
• Material: Plastic
• Color: Black
• Dimensions: Width: 36 cm, Depth: 32 cm, Height: 59 cm
• Weight: 10.85 kg
• Power supply: 3V DC
• Power connection: Battery/battery pack
• Capsule type: Dynamic
• Polar pattern: Cardioid
• Battery: 2 x Mignon (AA) (not included)
• Range: Range up to 30m
• Carrier frequency: 830 MHz; 864 MHz
• RF power output: 10 mW
• Material: Plastic
• Dimensions: Length: 25.0 cm, Diameter: Ø 3.2 cm
• Weight: 0.17 kg
• Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
• Control: IR remote control
• Audio player: USB + SD + Bluetooth
• Range: Bluetooth: range up to 10m
• Frequency band: 2.4 GHz
• Music format: MP3, WMA
• Available storage media: USB devices/SD cards max. 32GB (FAT 32)

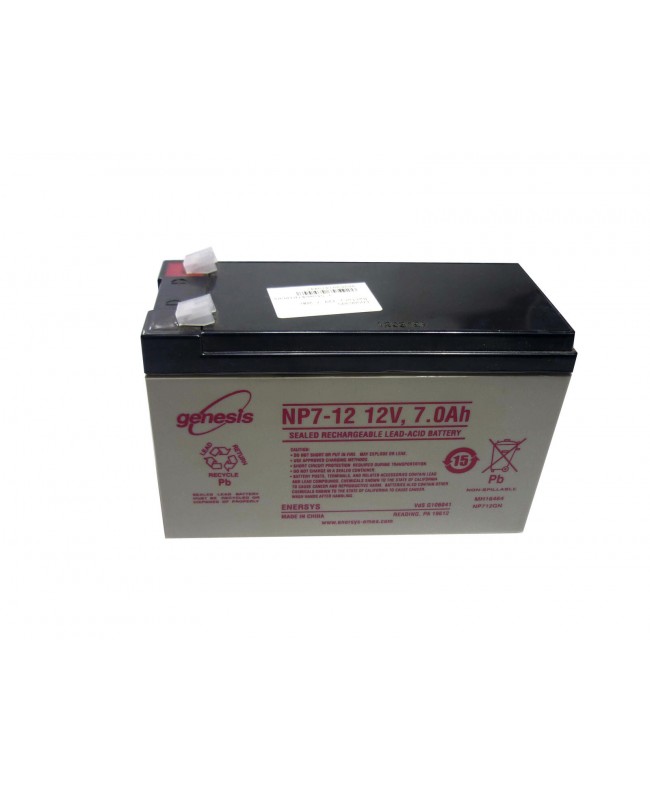

• Battery pack type: 1 x lead 12 V, 7000 mAh, 84 Wh
• Battery pack: Battery operation up to 5h, Recharging time 11h
• Battery pack type: 1 x lead 12 V, 7000 mAh,
• Connections: 6.3 mm flat plug
• Dimensions: Width: 16.1 cm, Depth: 6.5 cm, Height: 10 cm
• Weight: 2.33 kg
