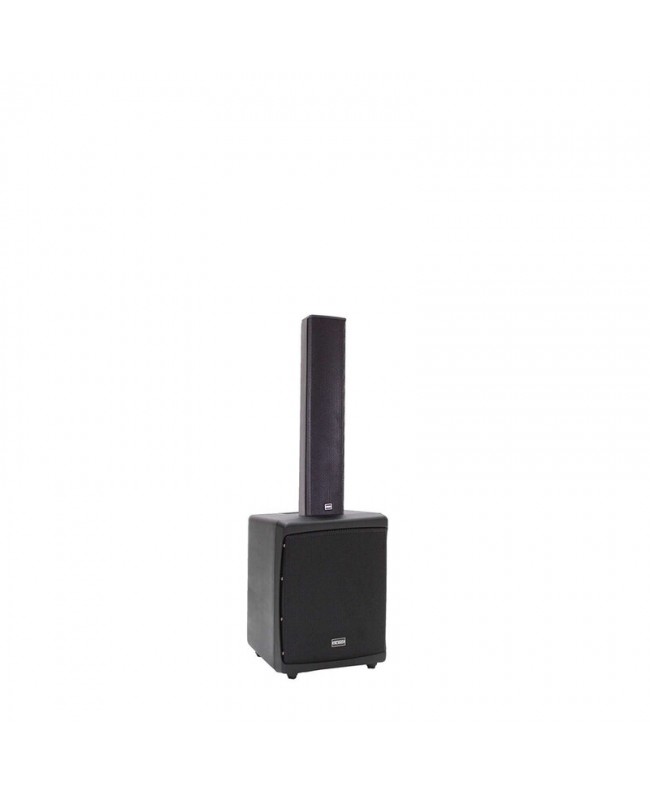

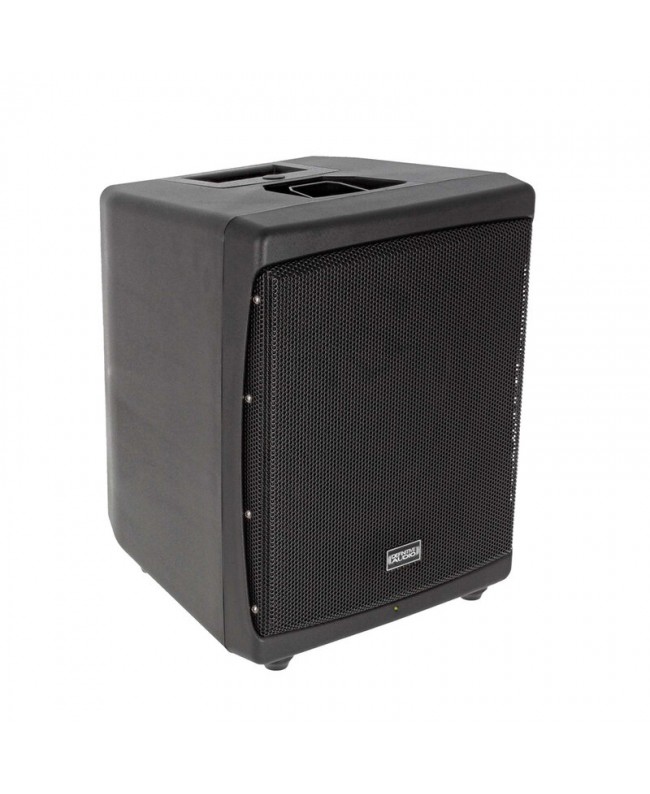

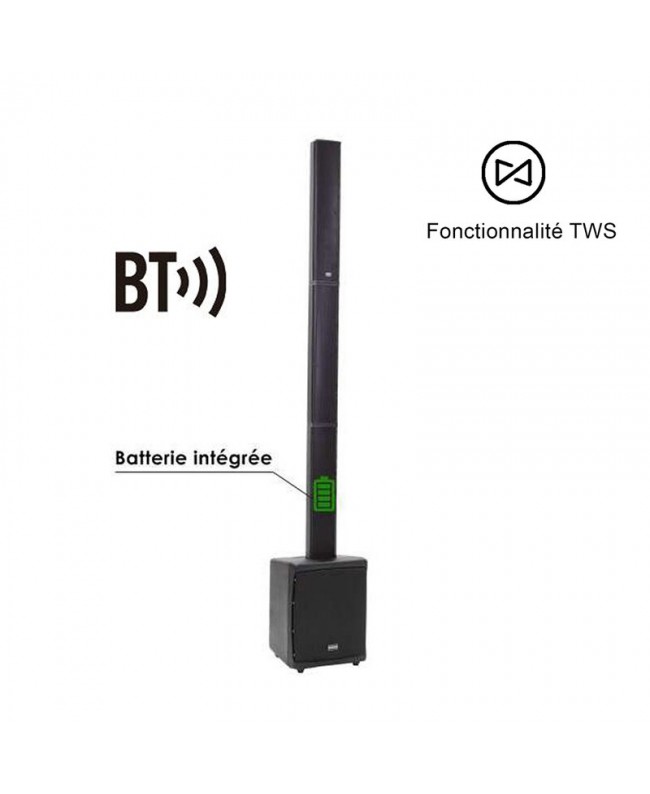

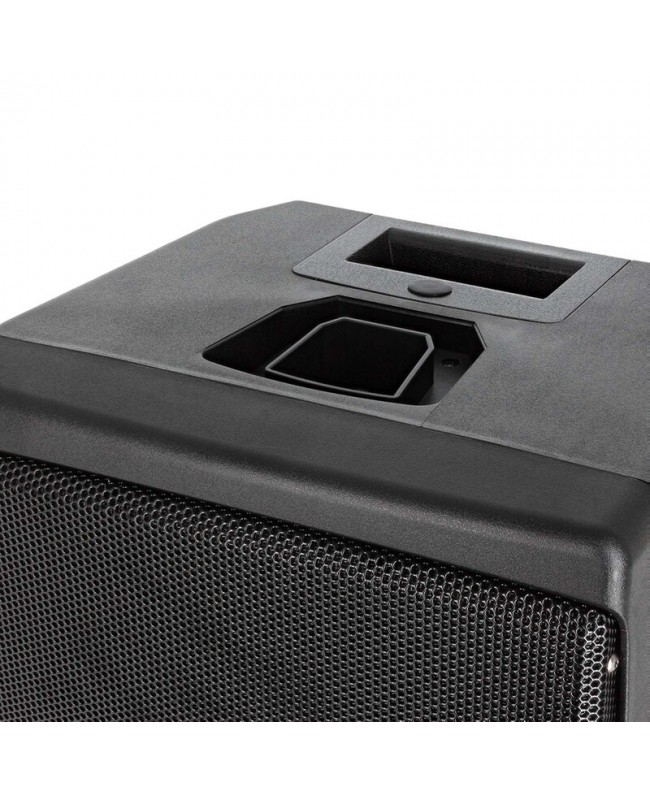

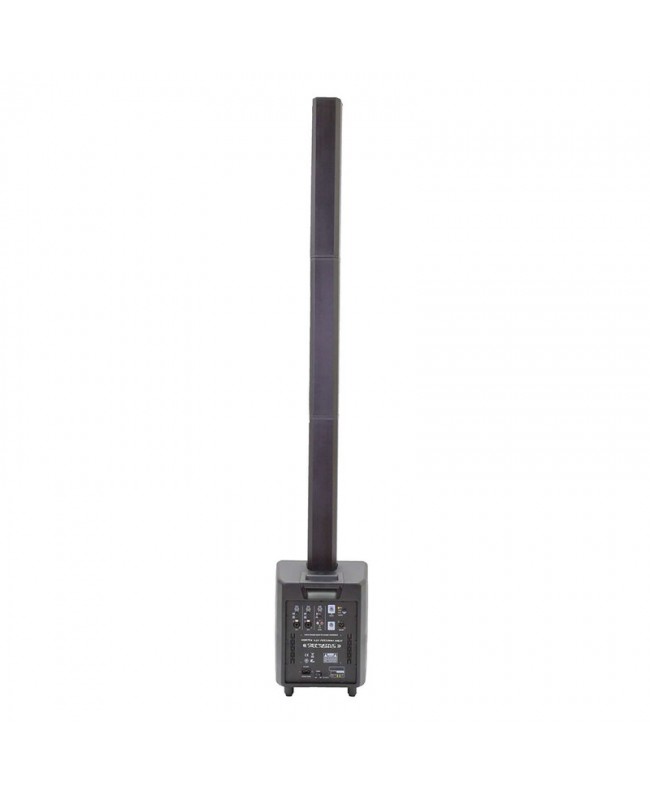

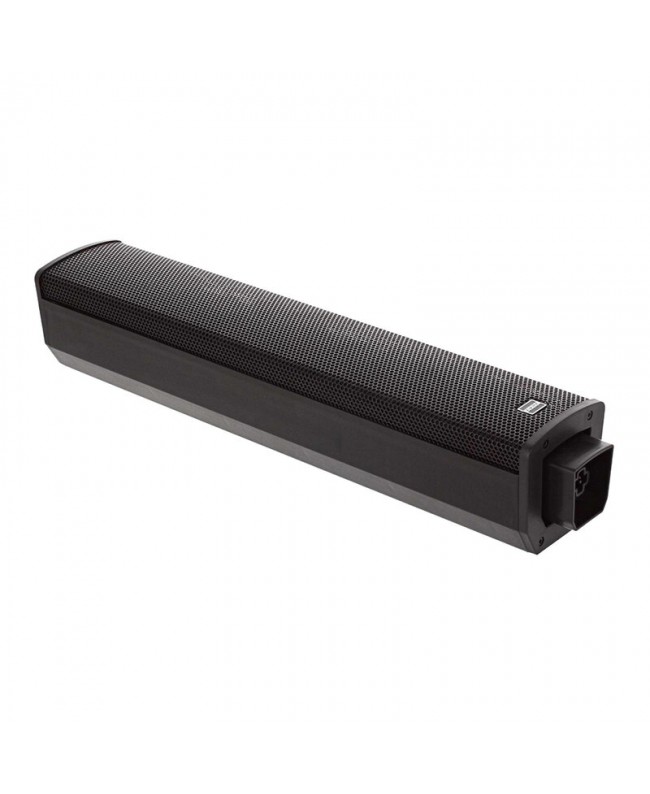

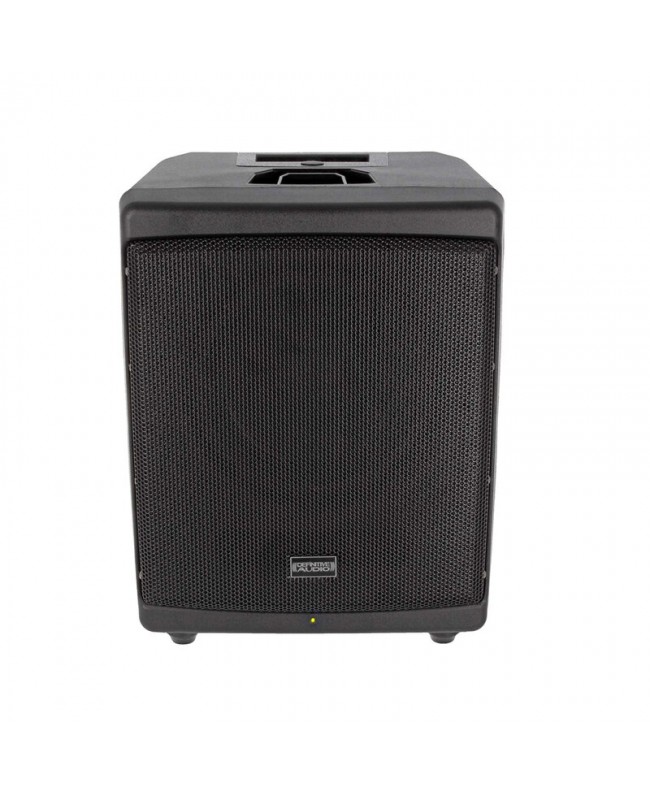

Active column system from Definitive Audio and #039;s VORTEX series that integrates a battery for unrestricted mobile use. It is composed of 3 vertically aligned columns and an 8 and #34; subwoofer.
With the Bluetooth TWS functionality, you can connect a second powered system and enjoy music in stereo. Compact and ultra-efficient, it has many features, allowing a wide variety of uses thanks to a built-in mixer.
It is perfect for DJs, musicians, singers, various artists and/or fixed and mobile applications.
Technical characteristics
Battery-powered column-type sound system
TWS system for pairing a second active system
2 Way MIC / line mixer + 1 stereo AUX channel
Inputs: 2 x XLR / jack Combo, mini-jack 3.5 mm MP3, RCA and Bluetooth
Reverb with ON / OFF selector on the 2 channels
4 Possible listening types: music / live / hi-fi / speech
Output power: 400 WRMS / 800 W prog. / 1600 W max.
Class-D + AB amplifier (satellites)
Frequency response: 50 Hz - 20 kHz (-10 dB)
Sensitivity: 95 dB/ W/m
SPL: 121 dB
Protection: DSP limiter, short circuit, overvoltage and overheating
Impedance: 4 ohms
Columns: 6 x 2.75'' speakers
Column impedance: 8 ohm
Woofer: 8, 2 voice coil
Woofer impedance: 4 ohms
Polar pattern: 120° x 20°
Crossover: 250 Hz 18 dB/Oct
Manufacturing: MDF subwoofer and ABS satellite
Lithium battery: 26 V / 5200 mAh
Battery life: 6 h (at 80% of the total volume)
Battery recharging time: 3.5 h
LED charge indicator (25, 50, 75 and 100%)
Subwoofer dimensions: 325 x 305 x 412 mm
Column dimensions: 107 x 107 x 575 mm
Weight: 1 x column 1.7 kg, 3 colums 5.1 kg
Total weight of the assembly (subwoofer + 3 columns): 15 kg
