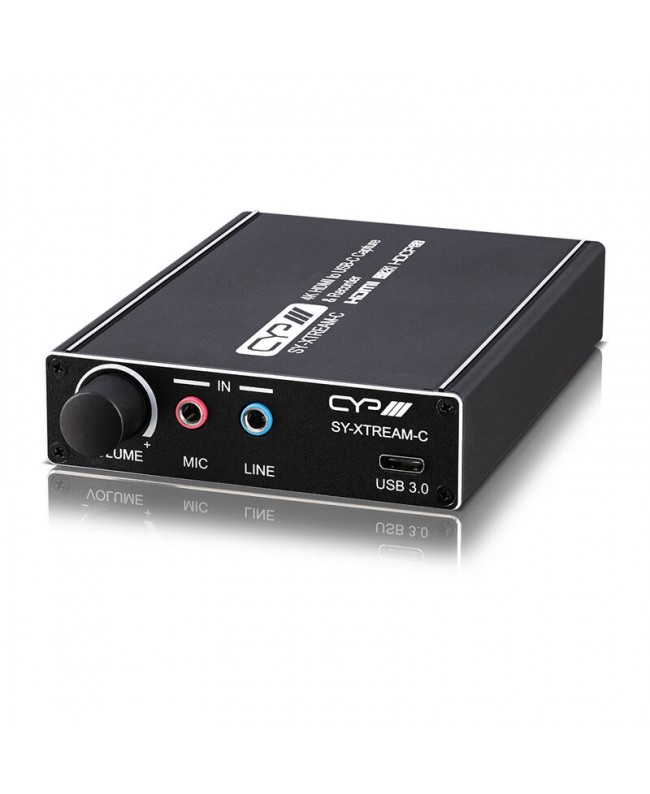

CYP SY-XTREAM-C

The SY-XTREAM-C is an HDMI capture device with USB-C output designed to record or stream video content up to 4K and #64; 30 Hz, while maintaining HDMI pass-through output up to 4K and #64; 60 Hz with HDR. In addition to embedded HDMI audio, the device can capture a second audio stream from the line input, MIC input, or a mix of the two using the built-in audio mixer.

Video timing stabilization technology ensures a stable USB stream even in the presence of intermittent HDMI signals or sudden disconnections. Compatibility with UAC / UVC standards ensures support for most streaming, video conferencing, and recording software, including OBS on Windows, mac. OS, and Linux.

The unit is powered directly via USB-C, eliminating the need for external power supplies, making it ideal for compact, portable, and professional setups.

• Main features

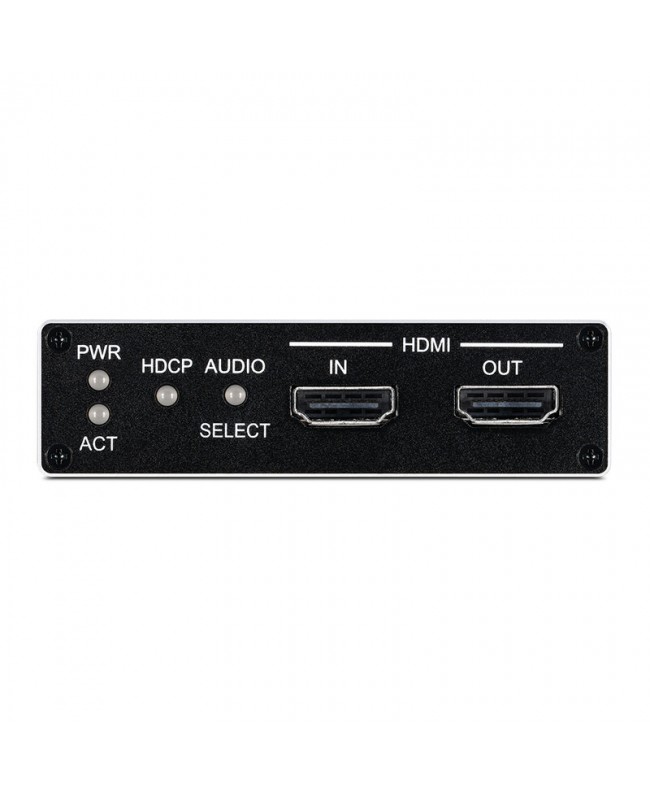

• HDMI input and output with support for up to 4K and #64; 60 Hz with HDR bypass
• USB-C capture up to 4K and #64; 30 Hz with uncompressed LPCM 2.0 audio
• Automatic conversion of 4K sources with frame rates above 30 Hz to 4K and #64; 30 Hz for USB capture
• HDCP 2.2 and 1.x compliant (capture of protected content is not supported)

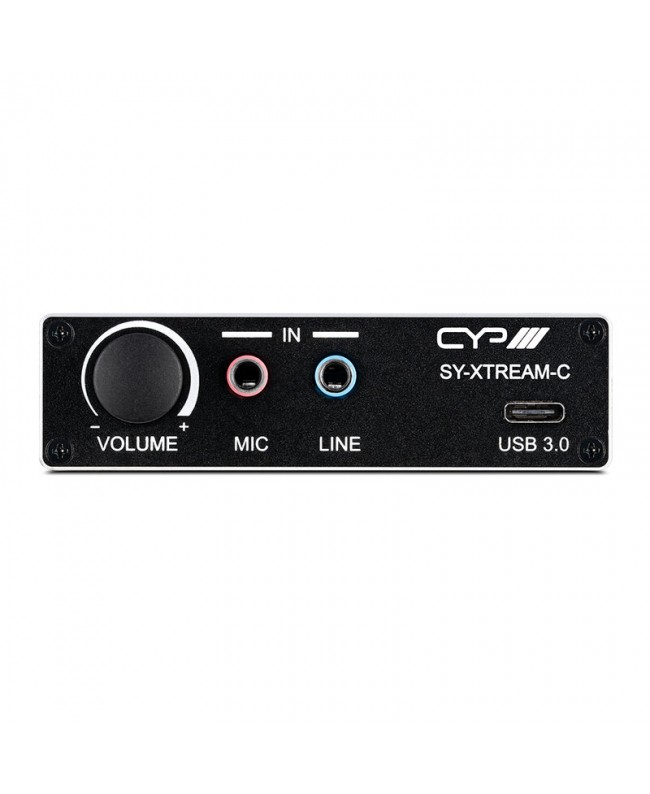

• Two additional analog audio inputs via 3.5 mm mini-jack: stereo line and microphone
• Built-in audio mixer to combine line and microphone inputs into a single stream
• HDMI audio capture (LPCM 2.0) as the primary stream and analog audio as the secondary stream
• UAC / UVC compatibility with most streaming and video conferencing software
• Support for OBS on Windows 10 (or later), mac. OS, and Linux
• Video timing stabilization function to ensure stable USB streaming even with high-frequency signals Intermittent signals
• Direct power supply via USB-C without an external power supply
• User benefits
• Universal compatibility with streaming and video conferencing software thanks to UAC and UVC standards
• Built-in audio mixer to combine microphone and line inputs without the need for external hardware
• HDMI pass-through up to 4K and #64; 60 Hz with HDR for high-quality content monitoring while USB capture is at 4K and #64; 30 Hz
• Direct power supply via USB-C
• Video timing stabilization for a stable USB stream even with intermittent HDMI signals
• Areas of use
• Live streaming in 4K and #64; 30Hz on platforms such as You. Tube, Twitch, and Facebook Live
• Gameplay recording from consoles or PC
• Video production, tutorials, online courses, and training content
• Webinars, video conferences, and corporate presentations
• Mobile broadcasting, live events, and corporate installations
• AV content capture for editing, archiving, or digital distribution
