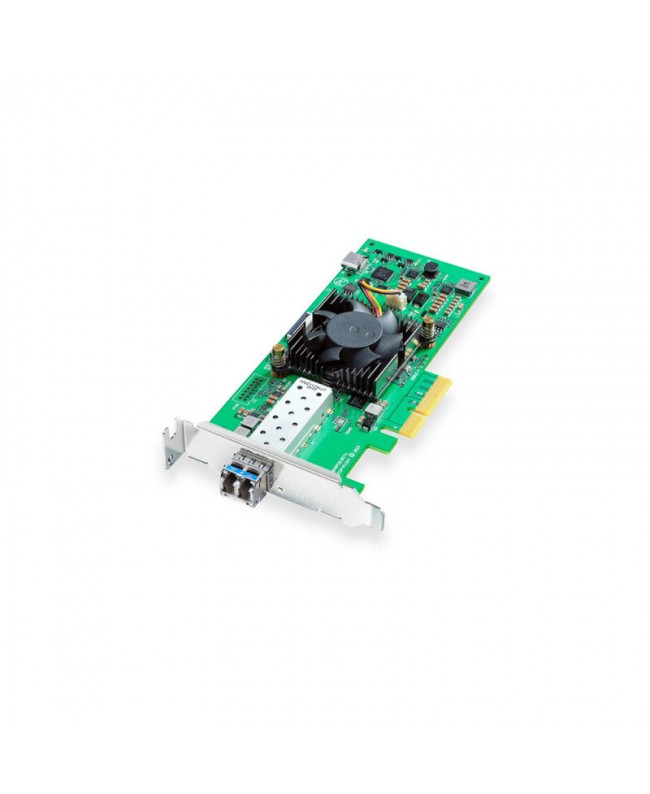

Blackmagic Design DeckLink IP HD Optical Capture & Playback
  • New

Blackmagic Design DeckLink IP HD Optical

€384.00
Tax included

3 Channels of capture and playback to 2110 IP broadcast systems via an SFP based optical fiber Ethernet connection

Qty

In Stock

Delivery

Do You want Your order by Friday, 03/07/2026? Order within 2 hours and 48 minutes

Free shipping

Compare

wishlist

Blackmagic Design DeckLink IP HD Optical



Deck. Link IP HD Optical is a video capture and playback card designed to integrate into SMPTE 2110-based IP broadcast systems using a fiber optic Ethernet connection via an SFP and #43; module. The interface is the classic PCI Express 4 lane Gen 2, compatible with PCIe x4, x8 and x16 slots on Windows, mac. OS and Linux.

It offers 3 simultaneous capture channels and 3 simultaneous video playback channels, each up to 1080p60 with 16 audio channels. It is designed to work with the highest quality video with common video formats including Apple Pro. Res, DNx. HD and even 10-bit uncompressed video.

Deck. Link IP connections are multi-rate and support all video standards 525i, 625i, 720p, 1080i and 1080p up to 1080p 60.

  • Technical characteristics
  • Connections
  • 10G optical fiber SFP+ Port: 1 x 10GBASE-LR supports 3 input channels and 3 output channels, each up to 1080p 60 with 16 audio channels
  • Computer interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots
  • Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, uncompressed 8-bit 4:2:2, uncompressed 10-bit 4:2:2, uncompressed 10-bit 4:4:4
  • Software
  • Software included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
  • Internal software upgrade: firmware built into software driver. Loaded at system start or via updater software
  • Physical installation: PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the support pages to see the full system requirements
  • Video standards
  • SD video standards: 525i 59.94 NTSC, 625i 50 PAL
  • HD video standards: 720p 50, 720p 59.94, 720p 60; 1080i 50, 1080i 59.94, 1080i 60; 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59, 1080p 59.94, 1080p 60; 1080PsF 23.98*, 1080PsF 24*, 1080PsF 25*, 1080PsF 29.97*, 1080PsF 30* * PsF SDI only
  • Audio sampling: television standard sample rate of 48 kHz and 24 bit
  • Color precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p 30 and 8, 10-bit YUV 4:2:2 in all modes
  • Color space: REC 601, REC 709, REC 2020
  • IP video compliance
  • SMPTE 2110-20 (uncompressed video): IGMP v2
  • SMPTE 2110-21 (traffic shaping): sender: narrow, receiver: narrow, wide synchronous, asynchronous
  • SMPTE 2110-30 (PCM): audio conformance level C
  • SMPTE 2110-40 (ancillary data): full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata
  • Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
  • NMOS IS-04 discovery and registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
  • NMOS IS-05 connection management: v1.1.2
  • NMOS BCP-002-01: natural grouping
  • NMOS BCP-004-01: receiver capabilities
  • Processing
  • Colorspace conversion: hardware based real time
  • Real Time effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects
  • Physical installation: PCI Express low profile
  • Power requirements
  • Power consumption: 10 W
  • Environmental specifications
  • Operating temperature: 5 to 40 °C
  • Storage temperature: -20 to 45 °C
  • Relative humidity: 0% to 90% non-condensing
  • Physical specifications
  • Dimensions: 12.7 cm x 6.9 cm, escluse staffe e connettori
  • Weight: 100 g
  • What's included
  • DeckLink IP HD Optical
  • 10GBASE-LR Optical Fiber SFP+ Module and Cage
  • Low profile slot bracket
  • Welcome wallet with QR code for software download

BLM-BDLKIPDIP/OPT/HD

Data sheet

Channels
3 channels
