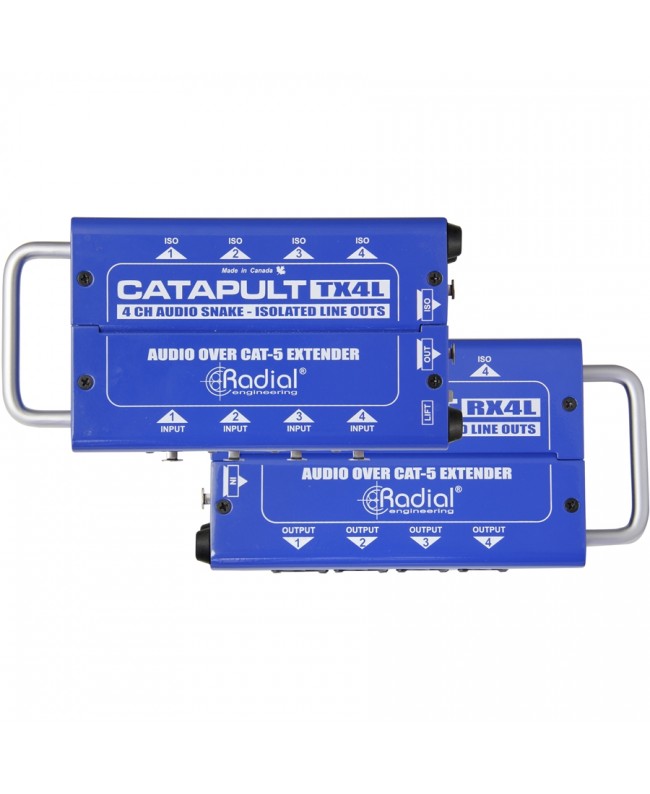

Radial Engineering Catapult RX4L

RX4L Reception Module with 4 isolated line-level XLR-M outputs (-20 ~ + 15dB) and 1 set of XLR-M pass-throughs

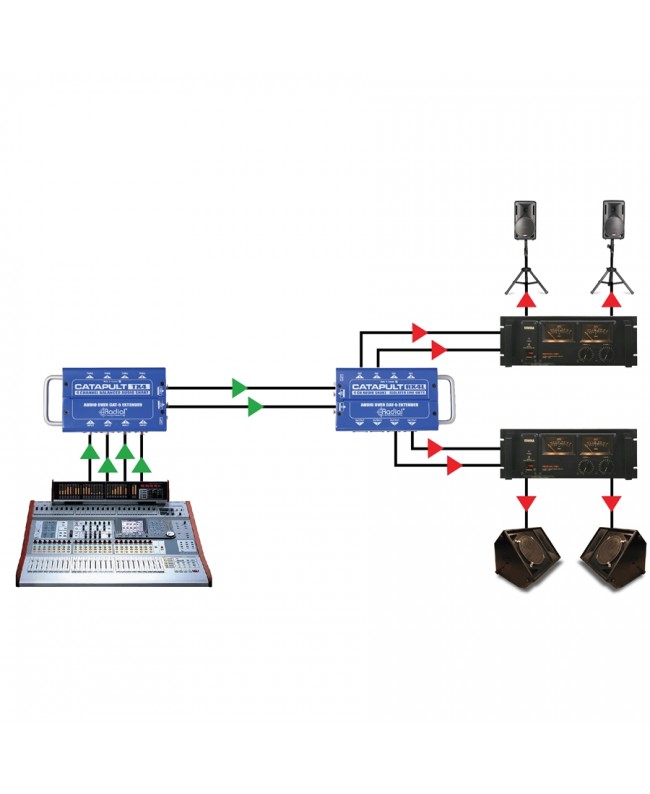

Catapult is a 4-channel audio snake that allows analog and digital AES audio signals to be sent over standard twisted-pair shielded Cat 5 or Cat 6 cable. This allows stage engineers to take advantage of the relatively low cost of this readily available cable for snake returns or for carrying balanced audio channels on large stages, and for system installers it allows them to take advantage of pre-wired networks to connect one room to another.

Available in 6 configurations, Catapult offers a choice of 3 input modules and 3 output modules. Each input module has 4 XLR inputs, 4 XLR thru-puts along with 2 Neutrik Ethercon outputs to connect Cat 5 cable to the desired output module. These have Ethercon-type RJ45 input and thru-put, as well as two sets of XLR outputs. Modules can be ordered without transformers for sub-snake or transmit AES audio signals; with microphone isolation transformers for signal splitting between FOH, monitor or recording system; with line-level isolation transformers to eliminate system noise. A ground lift switch on each terminal allows the Ethernet cable to be connected, eliminating noise and hum caused by ground loops.

As with all Radial products, Catapult is ideal for touring use due to its construction of rugged 14-gauge steel and powder coating that will keep it looking like new for years. Inside, a two-sided PCB was used to mount the connectors and transformers doubling the solder joints for maximum durability.
