Omnitronic PA Set AZX active M Home
  • New

Omnitronic PA Set AZX active M

€1,204.00
Tax included

2X AZX-115A PA Subwoofer active 400W, 2x AZX-212A 2-way Top active 250W and 2x Distance Tube

Qty

Available upon request

Free shipping

Compare

wishlist

Omnitronic PA Set AZX active M

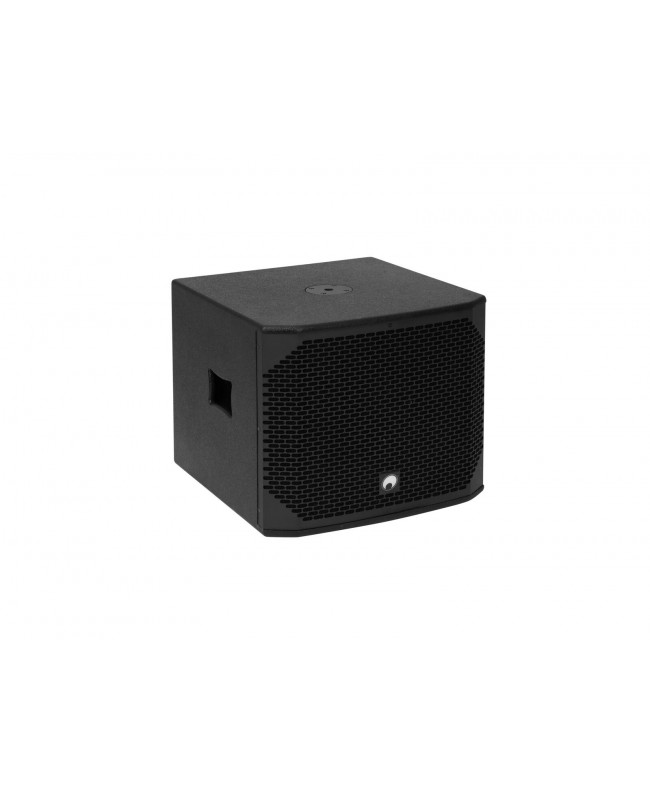

OMNITRONIC AZX-115A PA Subwoofer active 400W

Active 15 PA bassreflex subwoofer, 400 W RMS

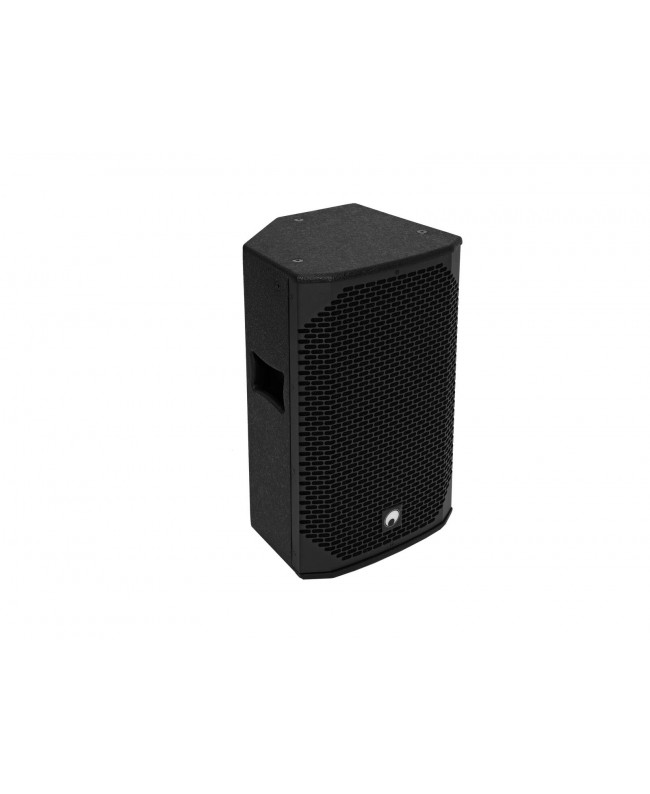

OMNITRONIC AZX-212A 2-way Top active 250W

Active speaker with 12 woofer, 1.35 driver, 200 W RMS LF, 50 W RMS HF

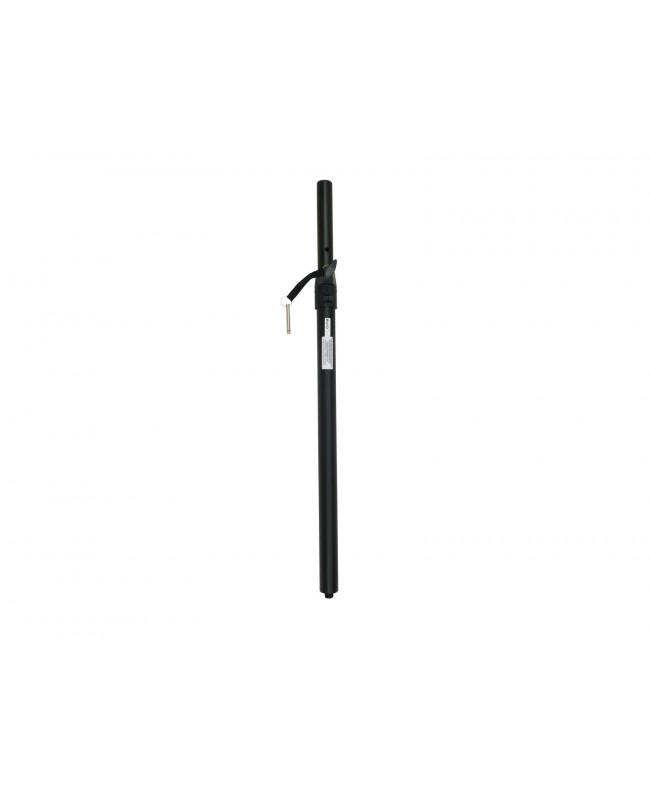

OMNITRONIC Distance Tube Subwoofer/Satellite M20

Variable distance tube, M20 thread, height adjustable 75-130 cm, max. load 30 kg

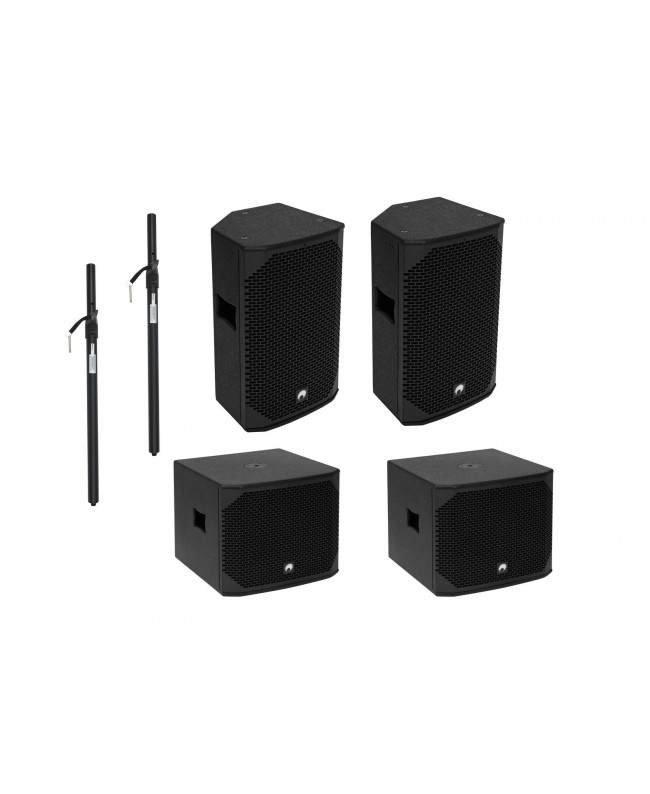

Scope of delivery

2 x OMNITRONIC AZX-115A PA Subwoofer active 400W

2 x OMNITRONIC AZX-212A 2-way Top active 250W

2 x OMNITRONIC Distance Tube Subwoofer/Satellite M20

  • 38 cm (15) bass speaker with 63 mm voice coil
  • Class D amplifier with 400 W
  • XLR inputs and parallel outputs L/R
  • XLR output L/R with high-pass filter
  • Adjustable crossover frequency 80-200 Hz
  • Black metal grille with acoustic foam
  • Rugged carrying handle
  • For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; rental
  • 2-way bass-reflex enclosure with 30 cm woofer and 3.5 cm titanium driver
  • Balanced signal input XLR/6.3 mm jack, switchable mic/line
  • HF adjustment -4 dB, -2 dB, 0 dB
  • Dual flange
  • With rigging points
  • Black metal grille with acoustic foam
  • Rugged carrying handle
  • Application possibility: Standing; suspended; monitoring; on stand
  • For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; rental
  • Connecting tube for satellite systems
  • Locking screw and bolt
  • Powder-coated steel version
  • Adjustable height
  • M20 thread
  • 1 x bass
  • 1 x user manual
  • 1 x power cord
  • 1 x user manual
  • 1 x power cord
  • 1 x compact cabinet speaker
  • 1 x distance tube
  • 1 x user manual
  • Weight: 92.40 kg
  • Power supply: 230 V AC, 50 Hz
  • Power consumption: 650 W
  • Protection class: Protection class I
  • Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
  • Device fuse: 5 x 20 mm, T 3.15 A fuse replaceable
  • Power: Rated: 400W RMS
  • Frequency range: 40 - 250 Hz
  • Sensitivity: 94 dB (1W/1m)
  • Attachment system: M20 thread
  • Circuitry: Class D
  • Control elements: Phase reversal switch
  • Controls: Limiter
  • Status LED: Limit, power, signal
  • Connections: Input: line via 2 x 3-pin XLR, Output: line via 2 x 3-pin XLR, Output: high-pass via 2 x 3-pin XLR
  • Crossover frequency: 80-200 Hz
  • Speaker: 1 x woofer 15, Basket material: steel, Voice coil lows 2.5
  • Type of speaker: Subwoofer
  • Type of construction: Vented
  • Carrying handle: 1 pc/pcs
  • Material: MDF (medium density fiberboard), 15 mm
  • Color: Black, textured coating, painted
  • Dimensions: Width: 53 cm, Depth: 55 cm, Height: 47 cm
  • Weight: 26.15 kg
  • Power supply: 230 V AC, 50 Hz
  • Power consumption: 650 W
  • Protection class: Protection class I
  • Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
  • Power: Rated: 200W RMS LF, Rated: 50W RMS HF
  • Frequency range: 55 - 20000 Hz
  • Sensitivity: 95 dB (1W/1m)
  • Attachment system: Dual flange: Ø 35mm (0° / 5°)
  • Flying points: 7 x M10 thread
  • Circuitry: Class D Biamp
  • Control elements: Power switch, Input sensitivity switch, tone control, level control
  • Controls: Limiter
  • Status LED: Limit, power, signal
  • Connections: Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 1 x 3-pin XLR
  • Input channels: 1 x mono with mic-line switch via Combination socket (XLR/jack), channel control via rotary dial
  • Equalizer: Master: 1 x 2-band tone control
  • Speaker: Woofer 12 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper, Voice coil lows 2, Voice coil compression tweeter highs 1.35
  • Type of speaker: Compact cabinet speaker
  • Carrying handle: 1 pc/pcs
  • Material: MDF (medium density fiberboard), 15 mm
  • Color: Black, textured coating, painted
  • Dimensions: Width: 37 cm, Depth: 35.2 cm, Height: 62.2 cm
  • Weight: 19.15 kg
  • Maximum carrying capacity: 30 kg
  • Tube diameter sector: 41 - 35 mm
  • Height: Maximum: 130 cm, Minimum: 75 cm
  • Attachment system: Ø 35mm
  • Type (general stands): Distance tube
  • Color: Black
  • Thread: M20 thread
  • Weight: 0.90 kg

20000527

Data sheet

Woofer inch
12"
Color
Black
