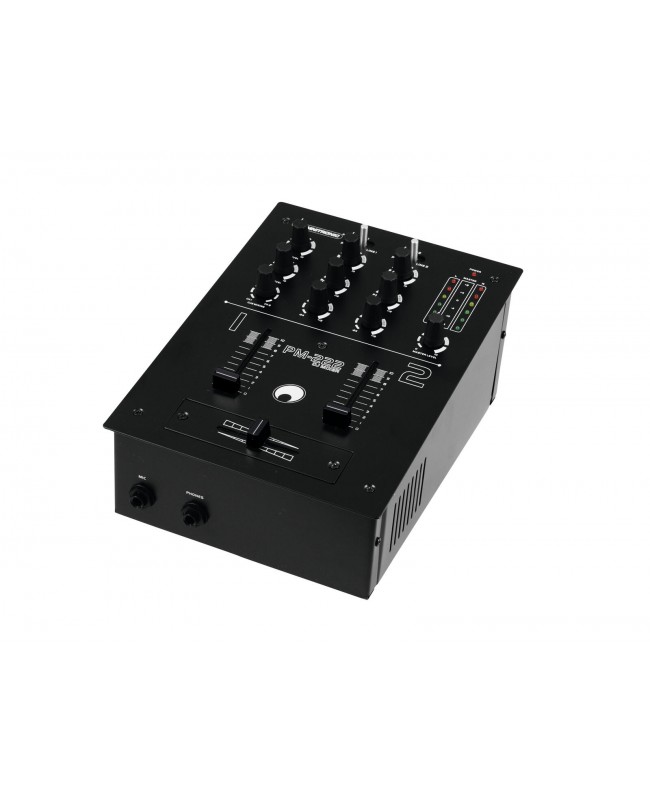

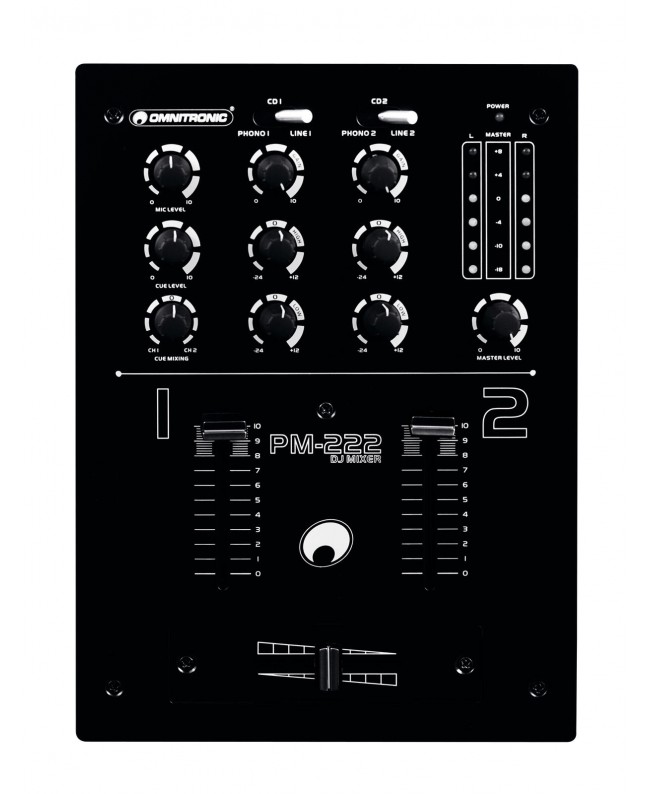

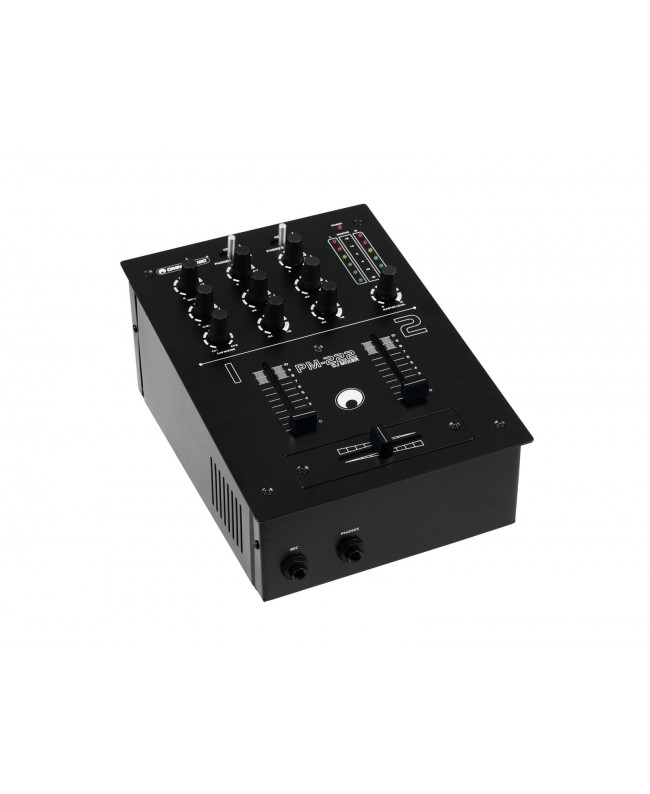

Omnitronic PM-222 2-channel DJ Mixer

• 2 input channels with gain control, 2-way equalizer and phono/line switching
• DJ microphone input with separate level control
• Pre-fader listening (CUE) to the input channels via adjustable headphones output, with cue mix control
• Replaceable crossfader for crossfading between both channels
• 6-digit stereo LED level meter and master level control
• Outputs: master and record (stereo RCA)
• Desktop console housing
• For application areas such as: Clubs/dancing school; mobile djs / entertainer; installation

Scope of delivery

• 1 x user manual
• 1 x power cord
• 1 x mixer

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 30.00 W
• Protection class: Protection class II
• Power connection: Mains input via C8 (M) figure 8 mounting version power supply cord with Euro plug (provided)
• Frequency range: 20 - 20000 Hz
• S/N ratio: 70 dB
• THD: 0.025 % at 1 kHz
• Impedance: Input: microphone 47 kOhm, Input: line 47 kOhm, Input: phono 47 kOhm
• Gain: Input: variable
• Control elements: Power switch, source selector, crossfader
• Status LED: Master level meter, power

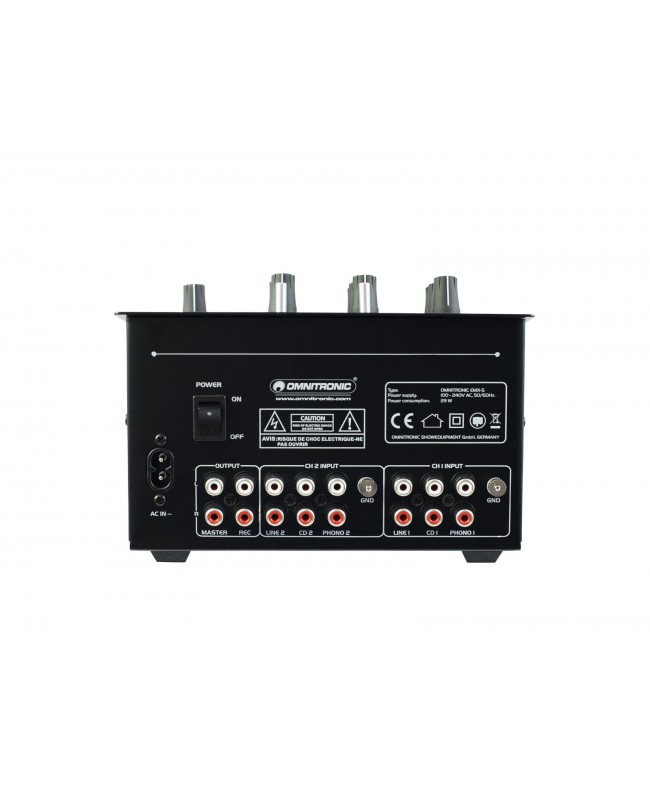

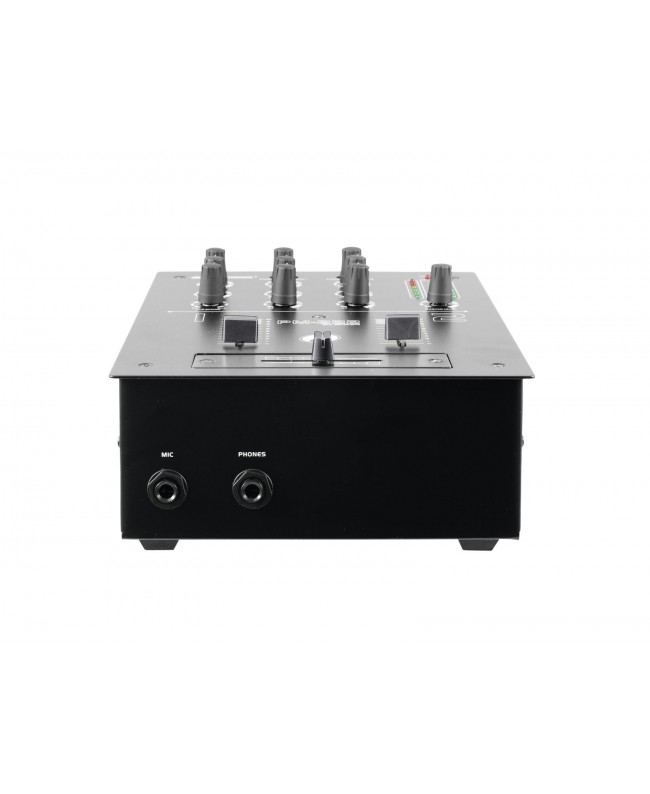

• Connections: Input: microphone via 1 x 6.3 mm jack socket (mono) mounting version, Input: line via 4 x stereo RCA, Input: phono via 2 x stereo RCA, Output: master via 1 x stereo RCA, Output: rec. via 1 x stereo RCA, Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
• Channels: Input chanel: 2 x stereo with line-line-phono switch via RCA, channel control via fader, 2-band tone control EQ, gain control, Microphon chanal: 1 x mono via jack, channel control via rotary dial, cue mix function, Master output: 1 x stereo via RCA, channel control via rotary dial, Headphones output: 1 x stereo via jack, channel control via rotary dial
• Max. level: Output: master +19 dBu
• Housing design: Desktop console housing
• Dimensions: Width: 19 cm, Depth: 26 cm, Height: 13.7 cm
• Weight: 2.00 kg
