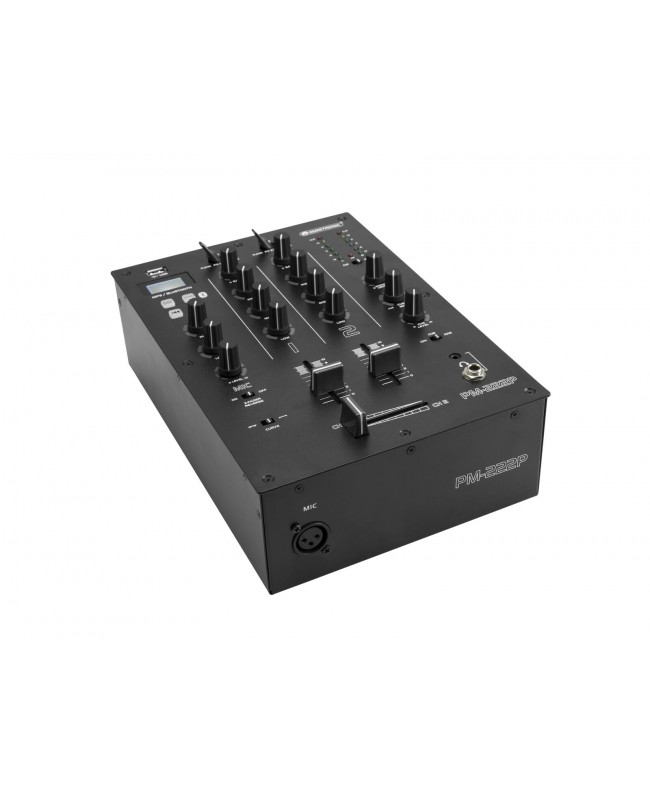

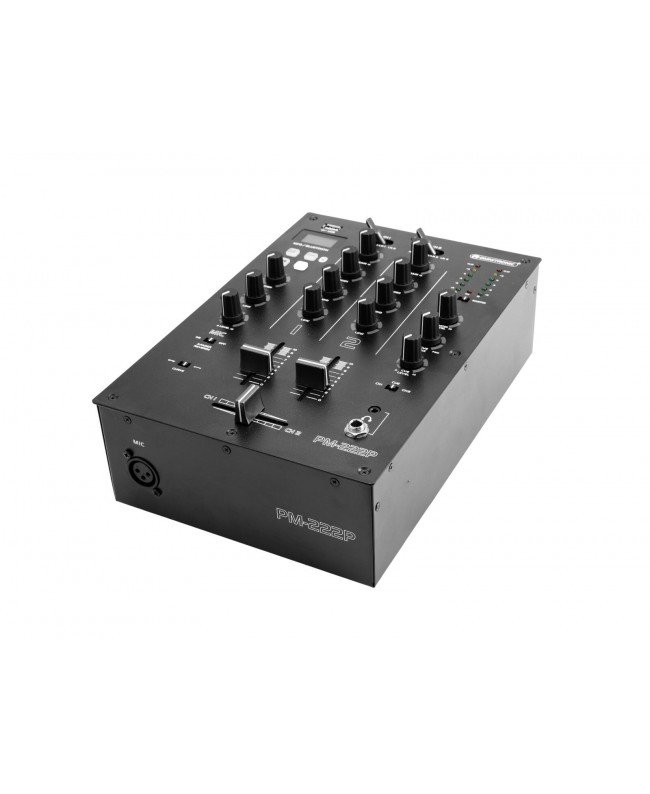

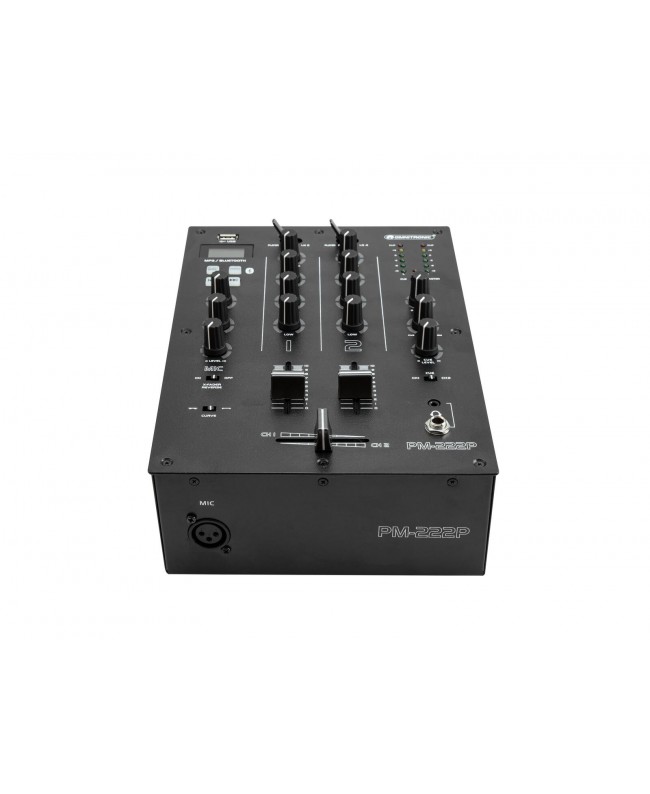

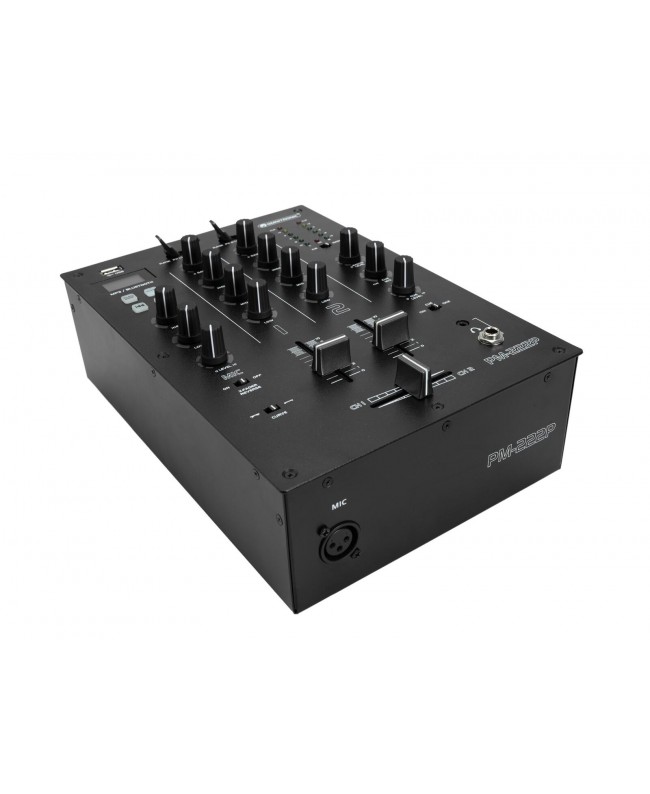

Omnitronic PM-222P 2-channel DJ Mixer with Player

• 2 input channels with gain control, 3-band equalizer and channel fader
• DJ microphone channel with level control and 2-band equalizer
• Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
• Crossfader with adjustable curve and reverse function
• Master channel with level control and 6-digit stereo LED level meter, switchable between master and PFL signal
• 4 line and 2 phono inputs via RCA jacks
• Additional recording output
• Control via Bluetooth
• LCD display
• Desktop console housing
• For application areas such as: Wedding/gala/events; party room; mobile use; mobile djs / entertainer

Scope of delivery

• 1 x user manual
• 1 x power cord
• 1 x mixer
• 1 x RCA cable

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: Max. 5 W
• Protection class: Protection class II
• Power connection: Mains input via C8 (M) figure 8 mounting version power supply cord with Euro plug (provided)
• Frequency range: 20 - 20000 Hz
• S/N ratio: 70 dB
• THD: 0.025 % at 1 kHz
• Impedance: Input: microphone 47 kOhm, Input: line 47 kOhm, Input: phono 47 kOhm
• Gain: Input: variable
• Control: Bluetooth
• Bluetooth: Version: 4.2 + EDR, Profiles: A2DP, AVRCP
• Bluetooth device name: PM-222P
• Audio player: Bluetooth; USB
• Carrier frequency: 2.4 GHz
• Housing color: Black
• Display type: LCD display
• Control elements: Audio player, crossfader, cue mix function, source selector, crossfade curve switch; crossfade reverse switch
• Status LED: Switchable master level meter, clip, CUE, power

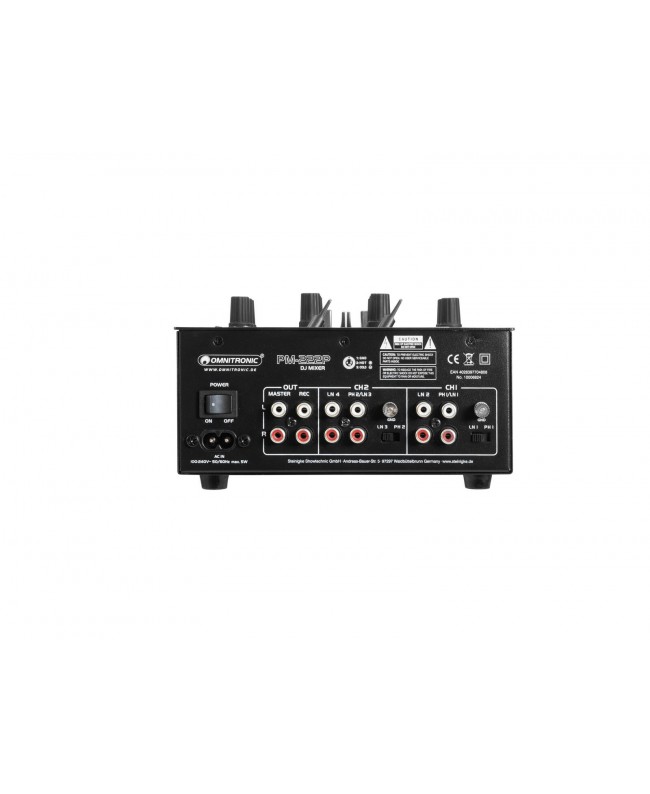

• Connections: Input: microphone via 1 x 6.3 mm jack socket (mono) mounting version, Input: line via 4 x stereo RCA, Input: phono via 2 x stereo RCA, Output: master via 1 x stereo RCA, Output: rec. via 1 x stereo RCA, Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
• Channels: Input chanel: 2 x stereo with line-line-phono switch via RCA, channel control via fader, 2-band tone control EQ, gain control, Microphon chanal: 1 x mono via jack, channel control via rotary dial, cue mix function, Master output: 1 x stereo via RCA, channel control via rotary dial, Headphones output: 1 x stereo via jack, channel control via rotary dial
• Music format: MP3, WAV; WMA
• Max. level: Output: master +19 dBu
• USB port: Type A
• Material: Steel
• Housing design: Desktop console housing
• Dimensions: Width: 19 cm, Depth: 26 cm, Height: 13.7 cm
• Weight: 2.15 kg
• Available storage media: USB devices max. 32GB (FAT 32)
