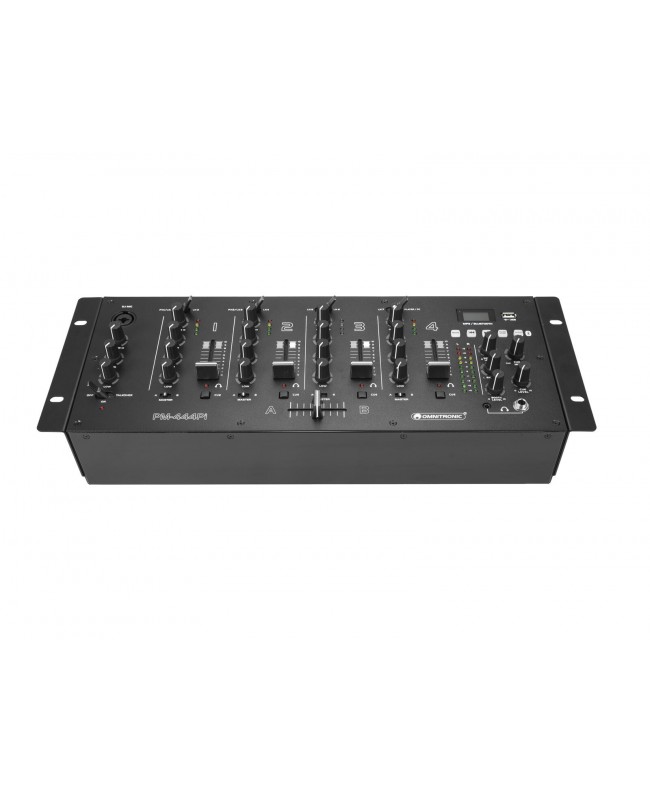

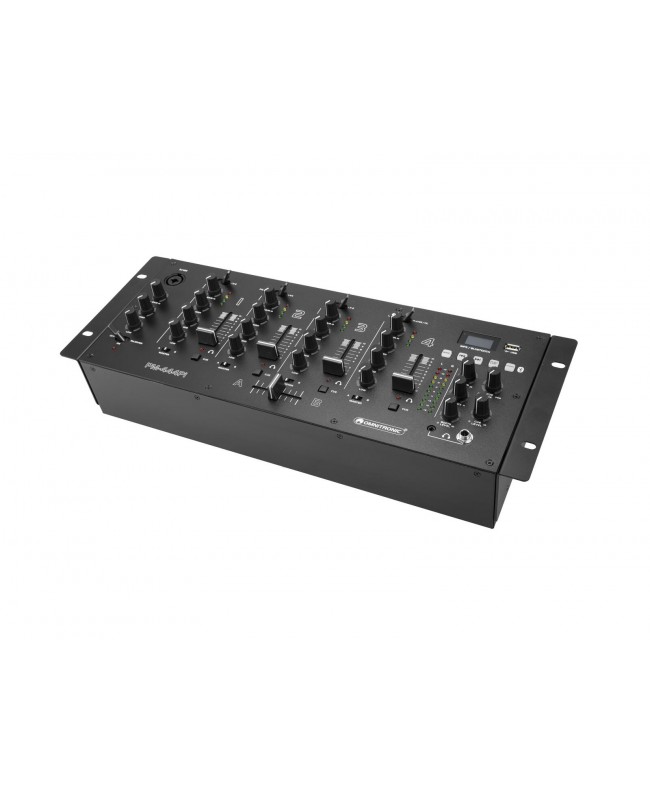

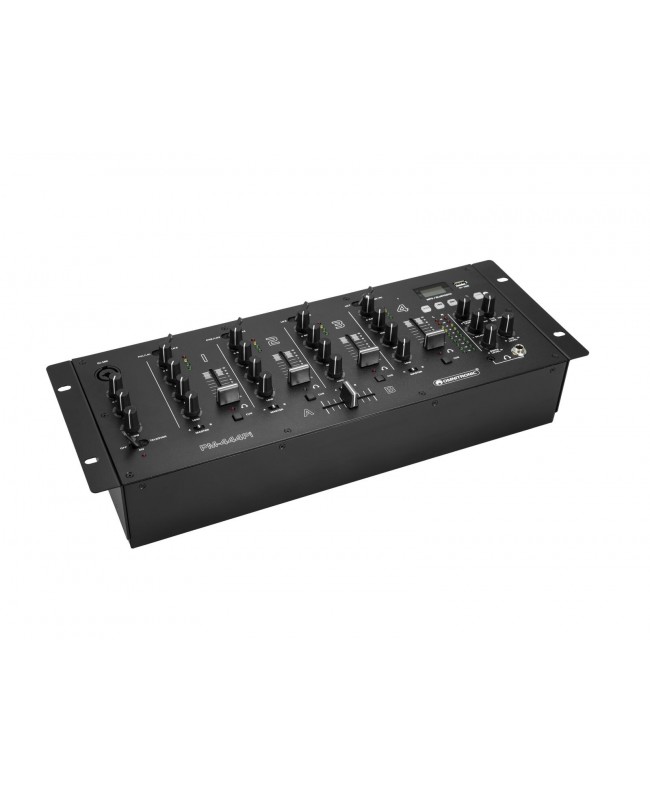

Omnitronic PM-444Pi 4-channel DJ Mixer with Player and USB Interface

• 4 input channels with gain control, LED level meter, 3-band equalizer, cue button and channel fader
• 1 DJ microphone channel with level control, 2-band equalizer, on/off and talkover switch
• Built-in USB audio interface allows playback of digital audio files from a computer (PC and Mac)
• Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
• Crossfader with assignment switches
• Master channel with level and balance control
• 10-digit stereo LED level meter
• Adjustable monitor output
• 7 line and 2 phono inputs via RCA jacks
• Balanced XLR and RCA outputs
• Additional recording output
• (19) 48.3 cm rack installation 4 U
• Control via Bluetooth
• LCD display
• The device can be connected via USB to the PC
• For application areas such as: Clubs/dancing school; installation; mobile djs / entertainer; restaurants, bars and hotels

Scope of delivery

• 1 x user manual
• 1 x power cord
• 1 x mixer
• 1 x RCA cable
• 1 x USB cable

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: Max. 10 W
• Protection class: Protection class II
• Power connection: Mains input via C8 (M) figure 8 mounting version power supply cord with Euro plug (provided)
• Frequency range: 20 - 20000 Hz
• S/N ratio: 60 dB
• Impedance: Input: microphone 1 kOhm, Input: line 1 kOhm, Input: phono 1 kOhm
• Gain: Input: variable
• Control: Bluetooth
• Bluetooth: Version: 4.2 + EDR, Profiles: A2DP, AVRCP
• Bluetooth device name: PM-444Pi
• Housing color: Black
• Display type: LCD display
• Control elements: Crossfader selector switch, crossfader, source selector, power switch
• Status LED: Power, CUE, master level meter, chanal level meter

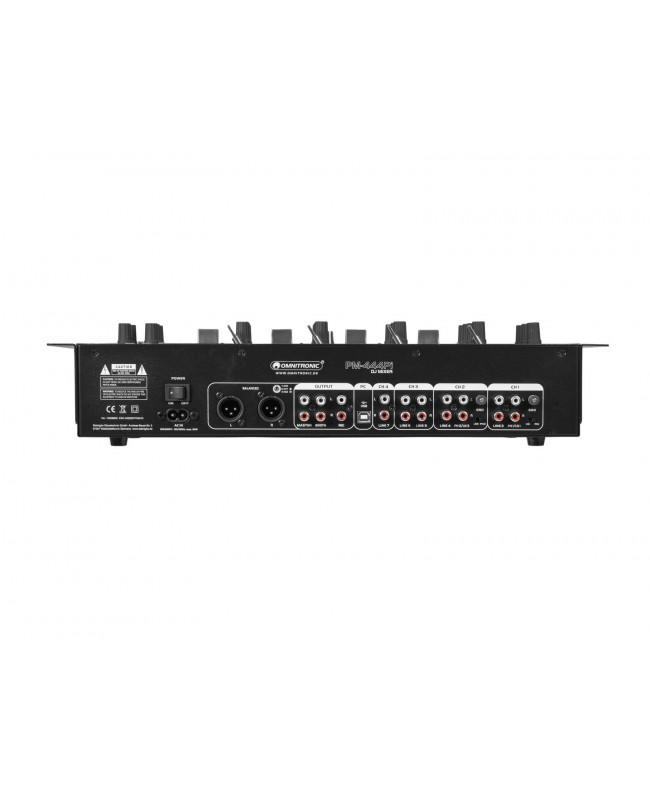

• Connections: Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 5 x stereo RCA, Input: phono via 2 x stereo RCA, Output: master via 2 x 3-pin XLR, Output: master via 1 x stereo RCA, Output: rec. via 1 x stereo RCA, Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
• Channels: Input chanel: 2 x stereo with line-phono switch via RCA, channel control via fader, 3-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control, CUE switch, crossfader selector switch, source selector, Input chanel: 1 x stereo with line-line switch via RCA, channel control via fader, 3-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control, CUE switch, Input chanel: 1 x stereo with line-USB switch via RCA or USB, channel control via fader, 3-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control, Microphon chanal: 1 x mono via Combination socket (XLR/jack), channel control via rotary dial, 2-band tone control EQ -30dB to12dB at 70Hz/13kHz, Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, Headphones output: stereo via jack, channel control via rotary dial
• Music format: MP3, WAV; WAV
• USB port: USB 2.0, type B, Type A
• PC connect: Via USB
• Housing design: (19) 48.3 cm rack installation 4 U
• Dimensions: Width: 48.3 cm, Depth: 17.8 cm, Height: 8.9 cm
• Weight: 3.50 kg
• Available storage media: USB devices max. 32GB (FAT 32)
