3 input channels, switchable 2 x phono/line and 1 x USB/line
All input channels with gain control, 3-band equalizer and cue button
DJ microphone input with talkover selector, level control and 3-band equalizer
Pre-fader listening (CUE) to the input channels and the master output via adjustable headphones output, with cue mix control
Crossfader for crossfading between the phono/line channels
5-digit stereo LED level meter, switchable between master and PFL signal
Additional recording output
Desktop console housing
For application areas such as: Party room; mobile djs / entertainer; mobile use
Scope of delivery
1 x mixer
1 x user manual
1 x external mains adapter
Power supply: 230 V AC, 50 Hz, 12V
Power consumption: 4.00 W
Protection class: Protection class III
Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: 75 dB
THD: 0.07 % at 1 kHz

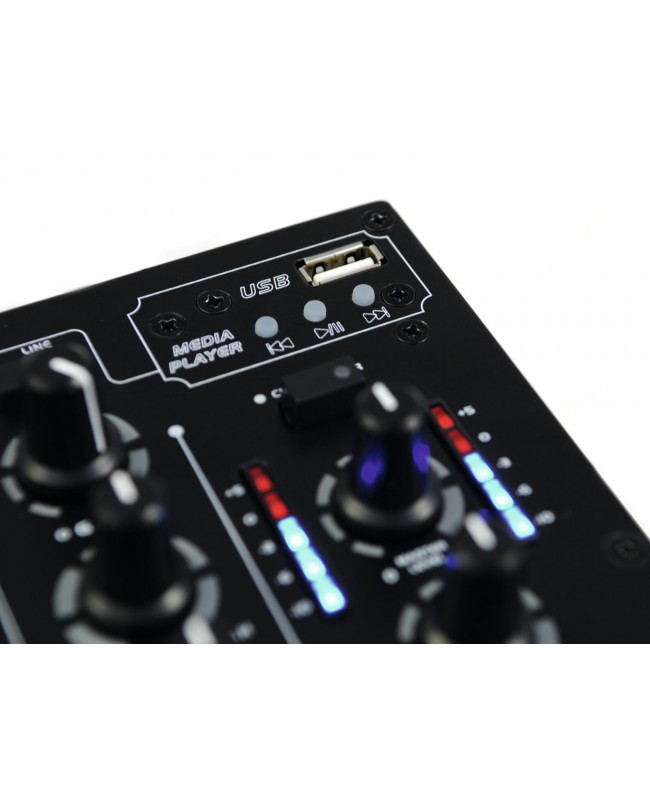

Audio player: USB
Housing color: Black
Control elements: Crossfader, source selector, talkover, power switch
Status LED: Switchable master level meter, chanal source, CUE, ON AIR

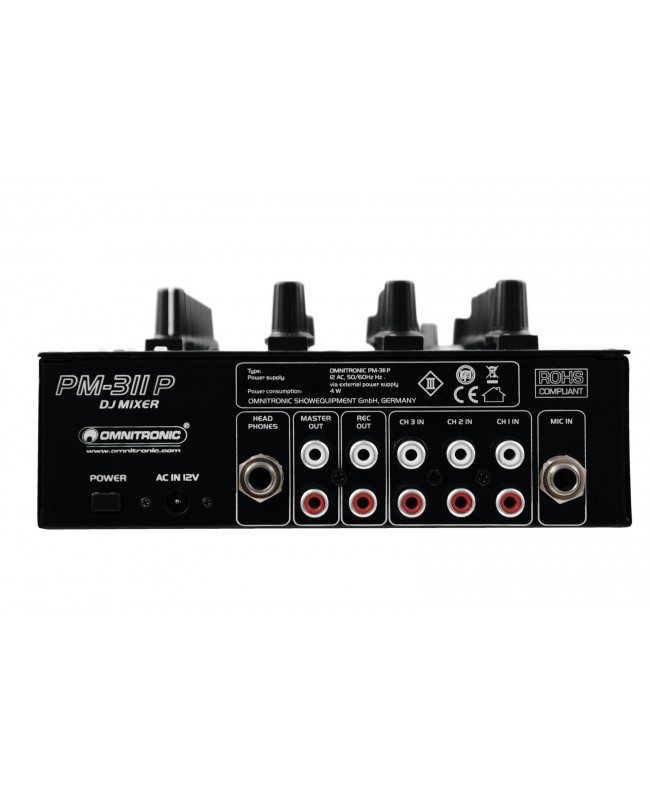

Connections: Input: line/phono via 2 x stereo RCA, Input: line via 1 x stereo RCA, Input: audio player via 1 x USB A (F) mounting version, Input: microphone via 1 x 6.3 mm jack socket (mono) mounting version, Output: master via 1 x stereo RCA, Output: rec. via 1 x stereo RCA, Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Channels: Input chanel: 2 x stereo with line-phono switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch, source selector, CUE switch, Input chanel: 1 x stereo with line-player switch via RCA or player, channel control via fader, 3-band tone control EQ, gain control, CUE switch, Microphon chanal: 1 x mono via jack, channel control via rotary dial, 2-band tone control EQ, ON AIR switch, Master output: 1 x stereo via RCA, channel control via rotary dial, cue mix function, Headphones output: 1 x stereo via jack, channel control via rotary dial
Music format: MP3, WAV
Available storage media: USB devices max. 32GB (FAT 32)
USB port: Type A
Housing design: Desktop console housing
Dimensions: Width: 17.2 cm, Depth: 26 cm, Height: 7.8 cm
