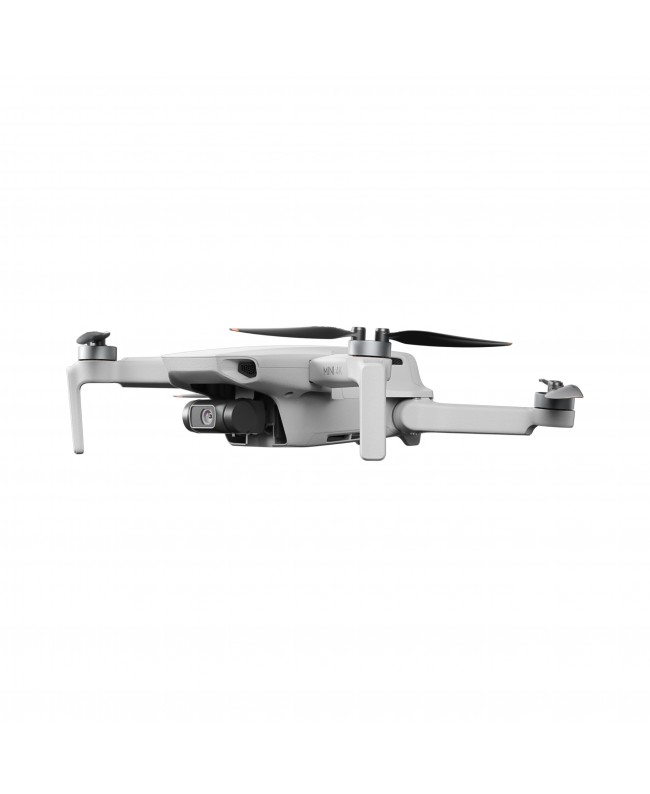

DJI Mini 4K

Technical Data Sheet

Aircraft

• Takeoff weight ‌< 249 g
• ‌ Standard aircraft weight (including Intelligent Flight Battery, propellers and a microSD card). Actual product weight may vary due to slight differences in materials and external factors. Examination and training not required in some countries or regions. Always check local laws and regulations before use. ‌With the Intelligent Flight Battery Plus*, the drone will weigh more than 249 g. Check and follow local laws and regulations before flying.
• Dimensions
• Closed (propellers not included): 148×94×64 mm (L×W×H)
• Open (propellers included): 298×373×101 mm (L×W×H)
• Maximum ascent speed
• 5 m/s (Mode S)
• 5 m/s (Mode N)
• 3 m/s (Mode C)
• Maximum descent speed
• 5 m/s (Mode S)
• 5 m/s (Mode N)
• 3 m/s (Mode C)
• Maximum horizontal speed (at sea level, in still air)
• 16 m/s (Mode S)
• 12 m/s (Mode N)
• 12 m/s (Mode C)
• Maximum horizontal speed is subject to local restrictions, which may change. Always follow local laws and regulations when flying.
• Maximum takeoff altitude
• With Intelligent Flight Battery for DJI Mini 4 Pro: 4000 m
• With Intelligent Flight Battery Plus for DJI Mini 3 series*: 3000 m
• Increased aircraft weight may affect flight propulsion. When the aircraft is using the Intelligent Flight Battery Plus, do not install additional loads such as parachutes or third-party accessories, as this will decrease propulsion.
• * The Intelligent Flight Battery Plus is not available in Europe.
• Maximum flight time
• 34 minutes (with Intelligent Flight Battery)
• 45 minutes (with Intelligent Flight Battery Plus*)
• Data acquired in a controlled test environment. The specific test conditions were as follows: forward flight at a constant speed of 21.6 km/h in a windless laboratory environment 20 meters above sea level, in photo mode (no photo capture during flight), with Obstacle Avoidance Action set to Off and from 100% battery level to 0%. Results may vary depending on environment, usage method and firmware version.
• * Intelligent Flight Battery Plus is not available in Europe.
• Hovering flight time
• 30 minutes (with Intelligent Flight Battery)
• 39 minutes (with Intelligent Flight Battery Plus)*
• Data was obtained in a controlled test environment. Specific test conditions include: hovering in a windless lab environment at 65 feet above sea level in Photo mode (no photo capture while flying), with Obstacle Sensing set to Off, and from 100% to 0% battery power. Results may vary depending on the environment, method of use, and firmware version.
• * Intelligent Flight Battery Plus is not available in Europe.
• Maximum flight distance
• 18 km (with the Intelligent Flight Battery and measured at a flight speed of 40.7 km/h in a windless environment at 20 meters above sea level)
• 25 km (with Intelligent Flight Battery Plus* and measured at a flight speed of 44.3 km/h in a windless environment at 20 meters above sea level)
• * Intelligent Flight Battery Plus is not available in Europe.
• Maximum wind speed resistance 10.7 m/s
• Pitch angle (max.) 35°
• Operating temperature Between -10° and 40°C (14° - 104°F)
• Global Navigation Satellite System GPS + Galileo + BeiDou
• Hovering accuracy (in the absence of wind or haze)
• Vertical:
• ±0.1 m (with visual positioning)
• ±0.5 m (with GNSS positioning)
• Horizontal:
• ±0.1 m (with visual positioning)
• ±0.5 m (with GNSS positioning)
• Internal memory 2 GB
• Class C0 (EU), with the option to request C1 (EU) in the DJI Fly app.

Camera

• 1/1.3” CMOS image sensor, effective pixels: 48 MP
• Lens FOV: 82.1°
• Equivalent format: 24 mm Aperture: f/1.7
• Focus: from 1 m to ∞ ISO range
• Video
• Normal and Slow Motion:
• 100-6400 (Normal)
• 100-1600 (D-Log M)
• 100-1600 (HLG)
• Night:
• 100-12800 (Normal)
• Photo
• 12 MP: 100-6400
• 48 MP: 100-3200
• Shutter speed
• 12 MP photo: 1/16000-2 s (2.5-8 s for long exposure)
• 48 MP photos: 1/8000-2 s
• Maximum image size 8064×6048
• Photo modes
• Single shot: 12 MP and 48 MP
• Burst shot:
• 12 MP, 3/5/7 frames
• 48 MP, 3/5 frames
• Auto Exposure Bracketing (AEB):
• 12 MP, 3/5/7 frames at 0.7 EV step
• 48 MP, 3/5 frames at 0.7 EV step
• Time:
• 12 MP, 2/3/5/7/10/15/20/30/60 s
• 48 MP, 5/7/10/15/20/30/60 s
• Photo format JPEG/DNG (RAW)
• Video resolution H.264/H.265
• 4K: 3840×2160 at 24/25/30/48/50/60/120*fps
• FHD: 1920×1080 at 24/25/30/48/50/60/120*/200*fps
• * Frame rate during recording. The corresponding video is played back in slow motion. 4K/100fps and HLG/D-Log M only support H.265 encoding.
• Video format MP4 (MPEG-4 AVC/H.264, HEVC/H.265)
• Max. video bit rate H.264/H.265: 150 Mbps
• Supported file systems exFAT
• Color mode and sampling method
• Normal: 4:2:0 8-bit (H.264/H.265)
• HLG/D-Log M: 10-bit 4:2:0 (H.265)
• Digital zoom 12 MP photos: 1-3x
• 4K: 1-3x FHD: 1-4x

Stabilizer

• Stabilization
• 3-axis mechanical (tilt, roll and horizontal rotation)
• Mechanical range
• Tilt: -135° to 80°
• Roll: from -135° to 45°
• Panorama: from -30° to 30°
• Controllable radius
• Tilt: from -90° to 60°
• Roll: from -90° to 0°
• Maximum control speed (tilt) 100°/s
• Angular vibration interval ±0.01°

Sensors

• Detection type
• Omnidirectional binocular vision system, integrated with a 3D infrared sensor in the lower part of the aircraft.
• Front
• Precision measurement range: 0.5-18 m
• Detection range: 0.5-200 m
• Effective detection speed: flight speed ≤ 12 m/s
• FOV: horizontal 90°, vertical 72°
• Rear
• Precision measurement range: 0.5-15 m
• Effective detection speed: flight speed ≤ 12 m/s
• FOV: horizontal 90°, vertical 72°
• Side
• Precision measurement range: 0.5-12 m
• Effective detection speed: flight speed ≤ 12 m/s
• FOV: horizontal 90°, vertical 72°
• Upper
• Precision measurement range: 0.5-15 m
• Effective detection speed: flight speed: ≤ 5 m/s
• FOV: front and rear 72°, side 90°
• Lower
• Accuracy measurement range: 0.3-12 m
• Effective detection speed: flight speed: ≤ 5 m/s
• FOV: front and rear 106°, side 90°
• Operating environment
• Front, rear, side and upward:
• Surfaces with recognizable patterns, with adequate lighting (>15 lux)
• Lower:
• Surfaces with distinguishable patterns, diffuse reflectivity >20% (e.g. walls, trees, people) and adequate lighting (lux > 15)
• 3D infrared sensor
• Measurement range: 0.1-8 m (reflectivity > 10%)
• FOV: Front and rear 60°, side 60°

Video transmission

• Video transmission system O4
• Image transmission quality (Live View)
• Radio control:
• Up to 1080p/60fps (available when the aircraft is in Photo or Video mode)
• Up to 1080p/30fps (available when the aircraft is in Video mode)
• Up to 1080p/24fps (available when the aircraft is on the ground in standby mode)
• Operating Frequency
• 2.4000-2.4835 GHz
• 5.170-5.250 GHz
• 5.725-5.850 GHz
• The 5.170-5.250 GHz frequency may only be used in countries and geographic areas where permitted by local laws and regulations.
• Transmitter power (EIRP)
• 2.4 GHz:
• < 33 dBm (FCC)
• < 20 dBm (CE/SRRC/MIC)
• 5.1 GHz:
• < 23 dBm (CE)
• 5.8 GHz:
• < 33 dBm (FCC)
• < 30 dBm (SRRC)
• < 14 dBm (CE)
• Maximum transmission distance (without obstacles or interference)
• FCC: 20 km
• CE: 10 km
• SRRC: 10 km
• MIC: 10 km
• Data acquired in an outdoor environment free of obstacles and interference. The data shown displays the farthest communication distance for one-way and round-trip flights based on each standard. Always pay attention to RTH notifications in the DJI Fly app during flight.
• Maximum transmission distance (without obstacles or interference)
• High interference: urban areas, approx. 1.5-4 km
• Medium interference: suburban areas, approx. 4-10 km
• Low interference: outskirts/seaside, approx. 10-20 km
• Data is measured in accordance with FCC standards, in open space free of interference. Used for reference purposes only and does not guarantee actual transmission distance.
• Maximum transmission distance (in the presence of obstacles, with interference)
• Low interference and obstruction from buildings: approx. 0-0.5 km
• Low interference and obstruction from trees: approx. 0.5-3 km
• Data is measured in accordance with FCC standards, in low-interference obstructed environments. Used for reference purposes only and does not provide any guarantee for the actual transmission distance.
• Maximum download speed
• O4:
• 10 MB/s (with DJI RC-N2)
• 10 MB/s (with DJI RC 2)
• Wi-Fi 5: 30 MB/s*
• * Data acquired in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to internal memory. Download speed may vary depending on actual conditions.
• Lowest latency
• Aircraft + Remote Control: approx. 120 ms
• Depending on the scenario and mobile device.
• Antennas
• 4 antennas, 2T4R

Battery

• Compatible battery
• Intelligent Flight Battery for DJI Mini 4 Pro, Intelligent Flight Battery Plus for DJI Mini 3 series*
• The Intelligent Flight Battery Plus is not available in Europe.
• Capacity
• Intelligent Flight Battery: 2590 mAh
• Intelligent Flight Battery Plus*: 3850 mAh
• * The Intelligent Flight Battery Plus is not available in Europe.
• Weight
• Intelligent Flight Battery: approx. 77.9 g
• Intelligent Flight Battery Plus*: approx. 121 g
• * Intelligent Flight Battery Plus is not available in Europe.
• Nominal voltage
• Intelligent Flight Battery: 7.32 V
• Intelligent Flight Battery Plus*: 7.38 V
• * Intelligent Flight Battery Plus is not available in Europe.
• Charging voltage (max.)
• Intelligent Flight Battery: 8.6 V
• Intelligent Flight Battery Plus*: 8.5 V
• * The Intelligent Flight Battery Plus is not available in Europe.
• Type
• Li-ion
• Energy
• Intelligent Flight Battery: 18.96 Wh
• Intelligent Flight Battery Plus*: 28.4 Wh
• * The Intelligent Flight Battery Plus is not available in Europe.
• Charging temperature
• 5° – 40°C
• Charging time
• Intelligent Flight Battery:
• 70 minutes (with the 30 W USB-C DJI charger and the battery installed on the aircraft)
• 58 minutes (with the 30 W USB-C DJI charger and the battery inserted in the Two-Way Charging Station)
• Intelligent Flight Battery Plus*:
• 101 minutes (with the DJI 30W USB-C charger and the battery installed on the aircraft)
• 78 minutes (with the DJI 30W USB-C charger and the battery inserted in the Two-Way Charging Station)
• The Intelligent Flight Battery Plus is not available in Europe.

Charger

• Recommended charger
• DJI 30 W USB-C Charger or other USB Power Delivery (30 W) chargers*
• When charging the battery while mounted on the drone or inserted in the Two-way Charging Dock, the maximum supported charging power is 30 W.

Charging dock

• Input
• 5 V, 3 A
• 9 V, 3 A
• 12 V, 3 A
• Output
• USB-A: maximum voltage: 5 V; maximum current: 2 A
• Charging type
• 3 batteries charged in sequence

Compatibility

• DJI Mini 4 Pro Intelligent Flight Battery, Intelligent Flight Battery/Intelligent Flight Battery Plus for DJI Mini 3 series

Package contents

• DJI Mini 4 Pro × 1
• DJI RC-N2 remote controller × 1
• Intelligent Flight Battery × 1
• Spare propellers (pair) × 1
• Screws × 6
• Screwdriver × 1
• Cable for DJI RC-N2 remote controller (USB-C connector) × 1
• Cable for DJI RC-N2 remote control (Lightning connector) × 1
• PD cable type C to type C × 1
• Gimbal protection × 1
• Wing protection band × 1
