Bralo 55944821 Fittings
  • New

Bralo 55944821


€0.10
Tax included

Pop-Rivet Truss-Head 4.8 x 21 mm


Qty

In Stock

Delivery

Do You want Your order by Tuesday, 28/04/2026? Order within 4 hours and 26 minutes



wishlist

Bralo 55944821

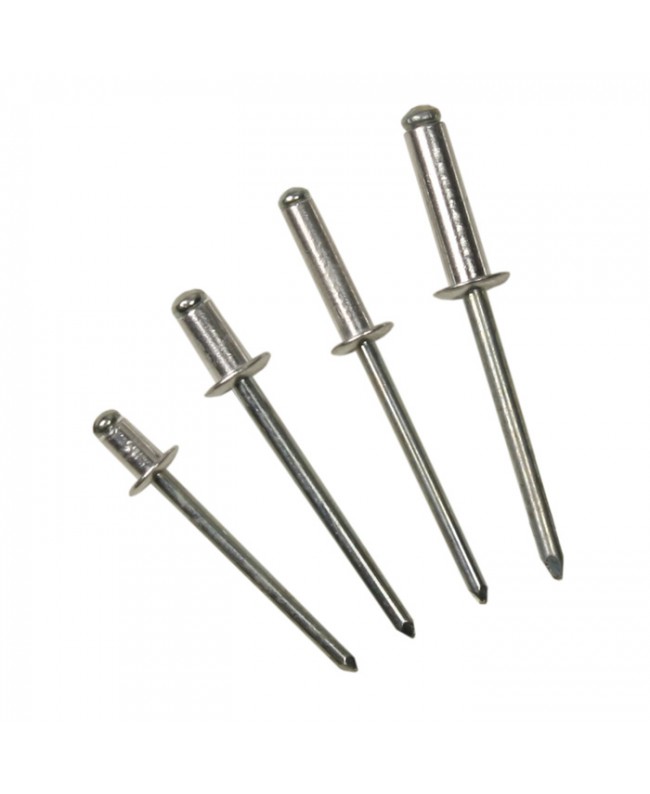

BLIND RIVETS FOR SOFT MATERIALS (ALUMINIUM)

This fixing ensures a secure and tight connection in soft materials. Therefore also particularly effective when used with materials such as plastic or wood.

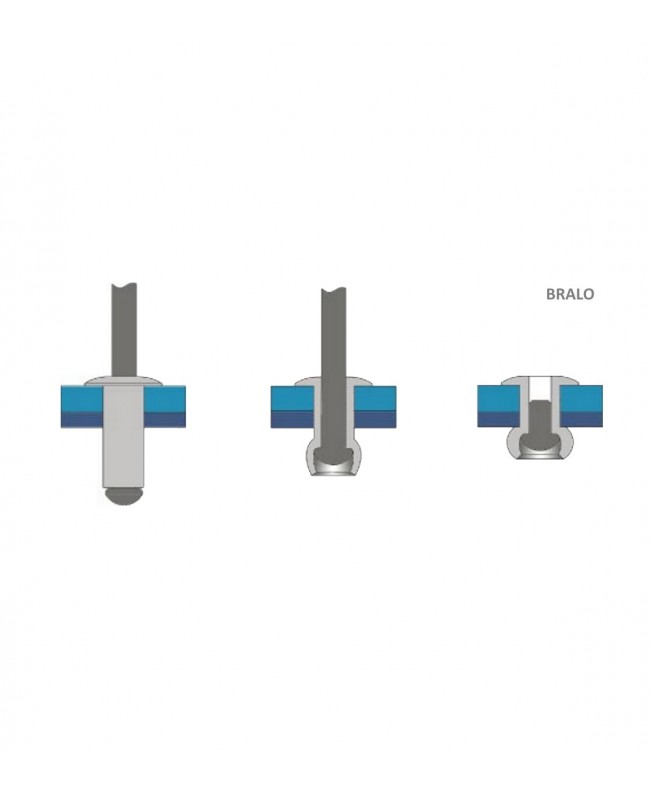

The Bralo for soft materials is a mandrel break blind rivet This rivet is particularly suitable for materials that are soft or brittle, because the mandrel break load is controlled. It provides exceptional clamping force. A 3.5% aluminium-magnesium alloy gives increased tensile and shear forces.

Other rivet versions for special applications and requirements available in the shop.

  • Single-sided application (blind rivet)
  • Blind rivets can be inserted from both sides
  • Can be used to connect soft and brittle materials, among other things (plastics, wood, glass fibre, metal to plastic )
  • No damage to the surface after riveting
  • Excellent resistance to temperature changes
  • No loosening by dynamic influences (vibration-resistant)
  • Available in aluminium with a magnesium content of 3.5%
  • High quality, simple and quick installation.
  • Ecological riveting process: no smoke, sparks or steam
  • Simple, lightweight and rapid use.
  • Product type: Fittings
  • Type: Rivets
  • Rivet diameter: 4.8 mm
  • Rivet length: 21 mm
  • Head diameter: 9.5 mm
  • Head height: 1.4 mm
  • Mandrel diameter: 2.73 mm
  • Clamping width: 14 - 17 mm
  • Load capacity (sheering strain): 2000 N
  • Tensile load: 2700 N
  • Rivet material: Aluminium
  • Rivet alloy: AIMg 3.5
  • Mandrel material: Steel
  • Mandrel surface: nature
  • Weight: 0,003 kg

55944821
