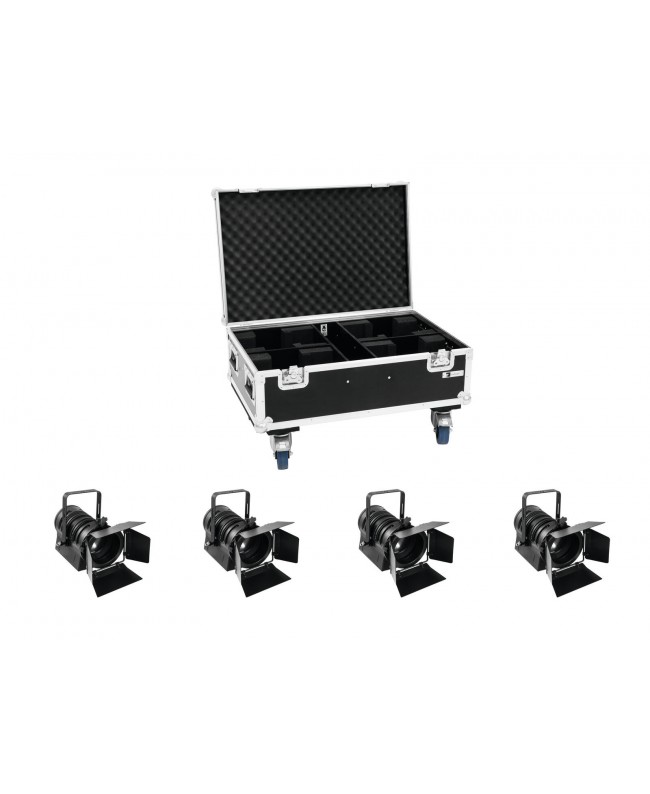

EUROLITE Set 4x LED THA-40PC bk + Case

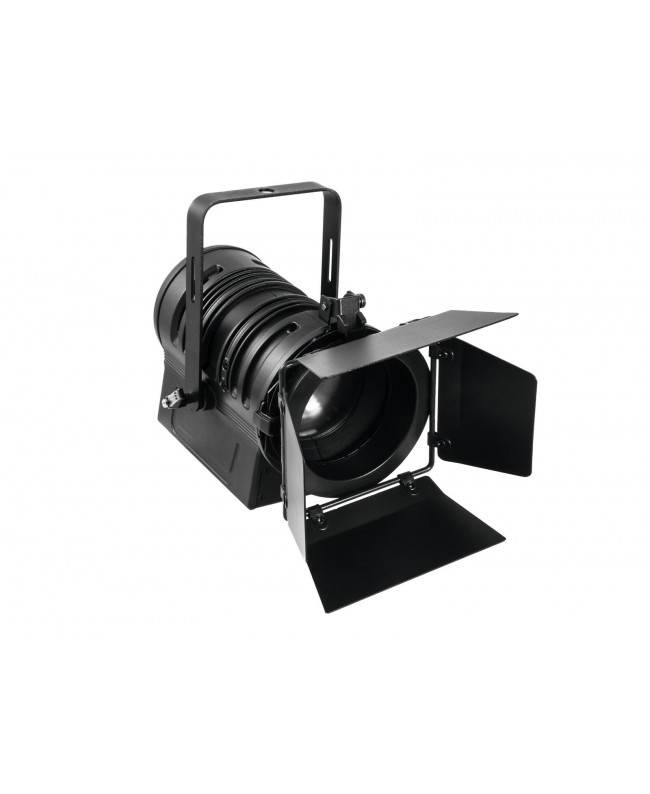

EUROLITE LED THA-40PC Theater Spot bkFanless PC spot (DMX), warm white 57 W LED, color rendering index (CRI) >90- 1 LED 57 W COB (chip-on-board) warm white (WW) Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response) adjustable

Strobe effect

The device is cooled by passive convection cooling Control via stand-alone; DMX Preprogrammed in LED PC-Control 512; Light´J; Light Captain; Colorchief

Flicker-free

• With a beam angle of 11° - 48°
• Very high color rendering index (CRI)
• With mounting bracket
• LCD display

Rubber feet

For application areas such as: Stage; decoration; wedding/gala/events; Trade fair and shop fitting; restaurants, bars and hotels; video and photography; advertisement/Shop window; theater

• Silent operation
• Application possibility: Suspended; on stand

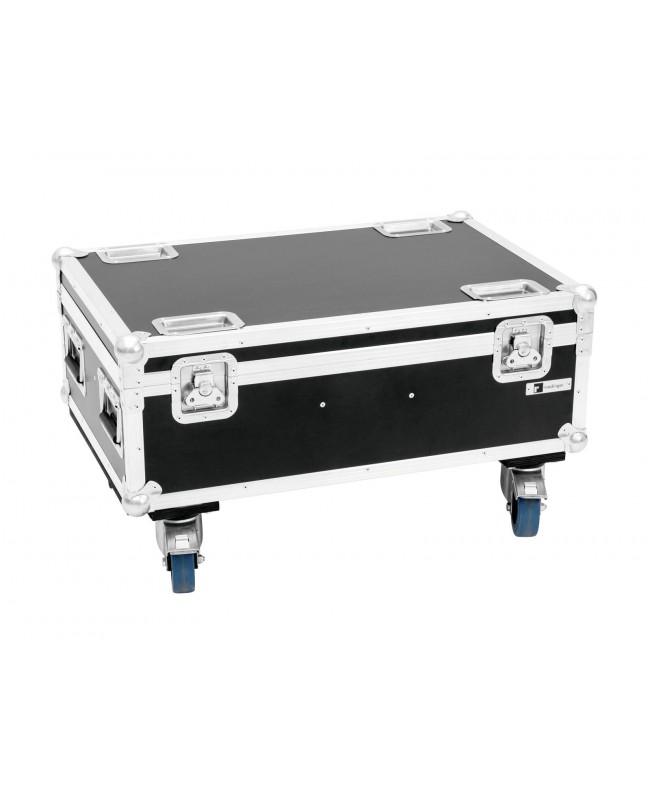

• ROADINGER Flightcase 4x THA-40 PC with wheelsTrunk case with castors, PRO version- With accessory compartment
• With 4 device compartments
• High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
• Interior with foam padding
• Aluminum profile frames 25 mm with rounded edges
• 4 Hinged, chromium plated case handles
• 2 Chrome tip-over locks
• 2 High-quality butterfly locks
• 4 X castors with 2 locking brakes
• 4 X built-in stacking trays in the cover
• Branded hardware
• Made in Europe
• For further information about this product, please refer to the Data Sheet under "Downloads"
• Scope of delivery
• 4 X EUROLITE LED THA-40PC Theater Spot bk- 1 x spotlight
• 1 X barndoor
• 1 X filter frame
• 1 X user manual

• Weight: 35.60 kg
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 40 W
• IP classification: IP20
• Protection class: Protection class I
• Power connection: Fixed power supply cord with safety plug
• Fuse: 5 X 20 mm, T 1 A fuse replaceable
• LED type: 1 X 57 W COB (chip-on-board) warm white (WW)
• DMX channels: 1; 2
• DMX input: 3-Pin XLR (M) mounting version
• DMX output: 3-Pin XLR (F) mounting version
• Cooling: Passive convection cooling
• Control: Stand-alone; DMX
• Preprogrammed in: LED PC-Control 512; Light´J; Light Captain; Colorchief
• Projection: Flicker-free
• Beam angle: 11° - 48°
• Beam angle (1/2 peak): 11 - 37°
• Beam angle (1/10 peak): 17 - 48°
• Color temperature: 3100K
• Color rendering index (CRI): 91 Ra
• Illuminance in Lux (lx): Narrow 3 m: 1656 lx, 6 m: 424 lx, Wide 3 m: 348 lx, 6 m: 103 lx
• Housing color: Black
• Attachment system: Mounting bracket
• Display type: LCD display
• Transport aid: Rubber feet
• Material: Aluminum casting
• Slot for spot length: 13.1 cm x 13.1 cm
• Dimensions: Length: 27,5 cm, Width: 20,5 cm, Depth: 25 cm
• Weight: 3.85 kg
• Noise classification: Class 0 (no noise at all)
• Diameter mounting holes: 1 X Ø10 mm; 2 x Ø6 mm
• Material: Metal, 3 mm
• Cable construction: 3 X 0.75 mm² H05VV-F
• Cable length: Approx. 1 m
• Material: Aluminum, 1.5 mm; metal
• Ring diameter: Outside: 12.9 mm, Inside: 10.9 mm
• Diameter mounting holes: 1 X Ø4 mm
• Shape: Octagonal
• Material: Aluminum, 0.8 mm
• Dimensions: Width: 13 cm, Height: 13 cm, Diameter: Ø 10.5 cm
• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
• Maximum load: 100 kg
• Aluminum profile frames: 25 mm
• Case handle: 4 Pc/pcs
• Stop hinge: 2 Pc/pcs
• Lock: Butterfly lock: 2 pc/pcs
• Transport aid: 4 X castors with 2 locking brakes, 4 x built-in stacking trays in the cover
• Use of brands: Branded hardware
• Material: Birch multiplex, 7 mm
• Color: Dark brown, laminated
• Device compartment: 31 cm x 13 cm x 15 cm
• Accessory compartment: 9.5 cm x 47 cm x 18 cm
• Inside dimensions: 71.5 cm x 47 cm x 18 cm
• Dimensions: Width: 78 cm, Depth: 52 cm, Height: 42,5 cm
• Weight: 16.75 kg
