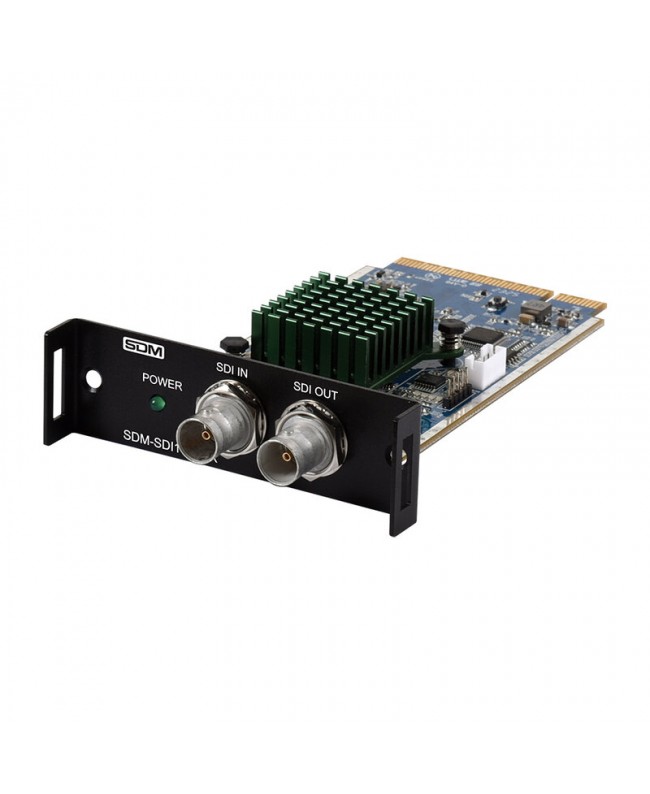

CYP SDM-SDI12G-RX

12G SDI input receiver module designed for integrating SDI signals into CYP SDM products, such as matrix switchers, video processors, or modular systems.

The module converts 12G, 6G, 3G, HD, and SD-SDI signals to the host SDM device (such as the OR-32SDMI), enabling direct integration of broadcast, medical, or industrial sources into advanced AV systems.

It features an SDI input and an SDI loop-out output for signal distribution to additional devices. It supports resolutions up to 4K and #64; 60 4:2:2 and can extend SDI signals over various distances (depending on the transport standard) using high-quality SDI cables.

• Main features
• SDI to HDMI signal conversion when integrated with one of CYP and #039;s SDM series products

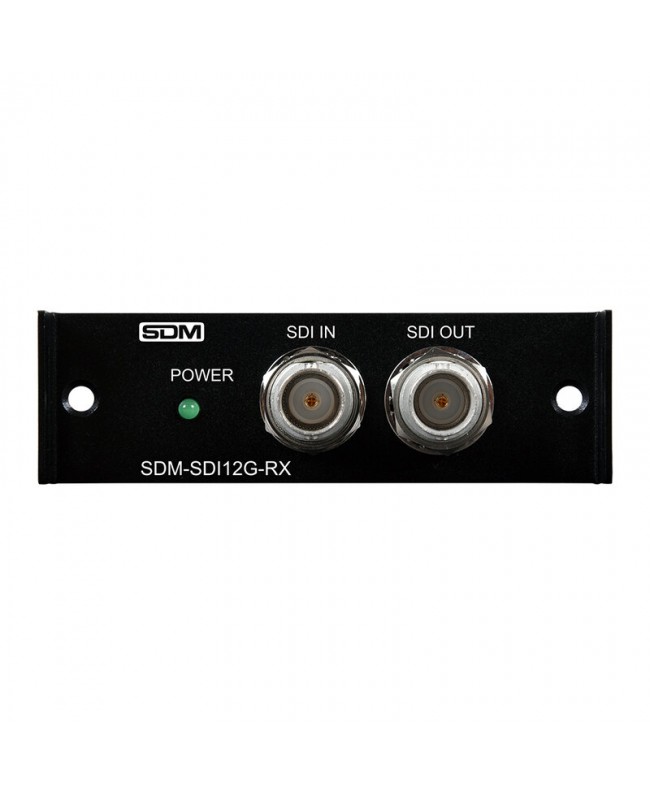

• One SDI input port and one SDI loop-out port
• Supports 12G, 6G, 3G, HD, and SD SDI video formats
• Output resolution up to 4K and #64; 60 4:2:2
• Extend SDI signals up to 70 m (12G SDI), 100 m (6G SDI), 200 m (3G SDI), or 260 m (HD SDI)
• User benefits
• Instant integration of SDI sources into SDM systems without external converters
• Full compatibility with all SDI formats up to 12G for broadcast and medical applications
• Signal distribution via loop-out without the need for additional splitters
• High-volume SDI extension using professional cables for large installations
• Simplified installation thanks to the SDM format and power supply from the device Host
• Stable and reliable signal quality even in critical environments
• Areas of use
• Corporate
• Industrial
• Broadcast (mobile broadcasting stations, television studios)
• Integration of SDI cameras and professional equipment into SDM matrix switchers and processors

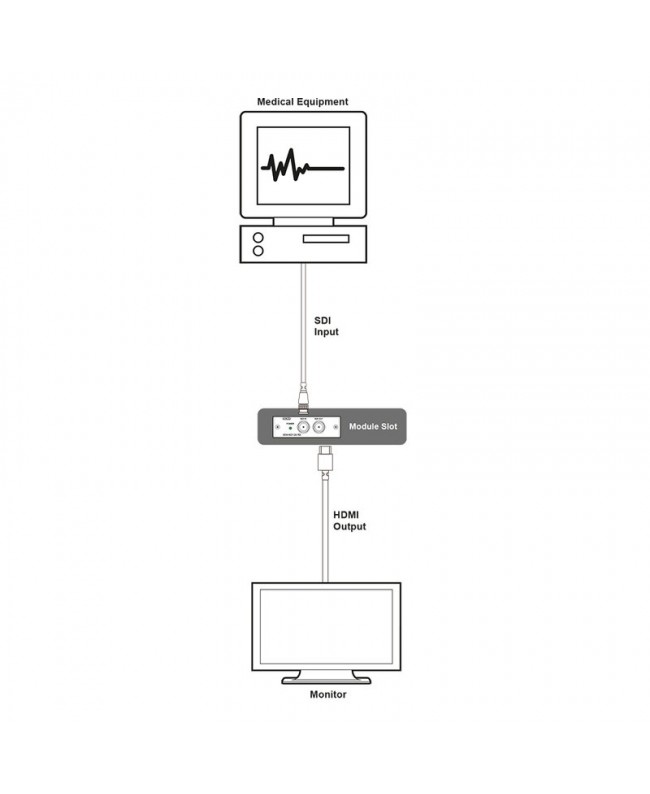

• Medical applications
• Live events with 12G-SDI video distribution
• Installations requiring SDI conversion to HDMI SDM modules or other formats
• Advanced AV systems requiring native SDI inputs
