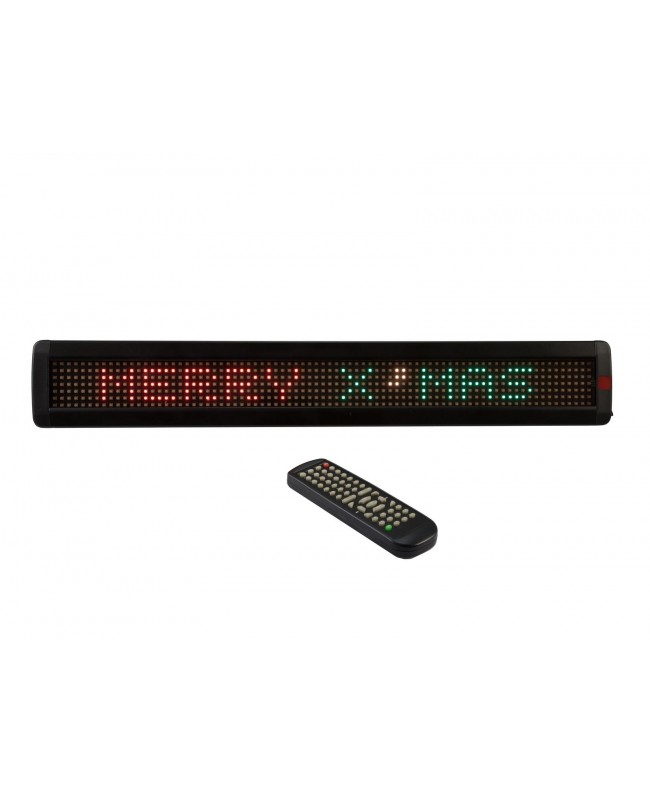

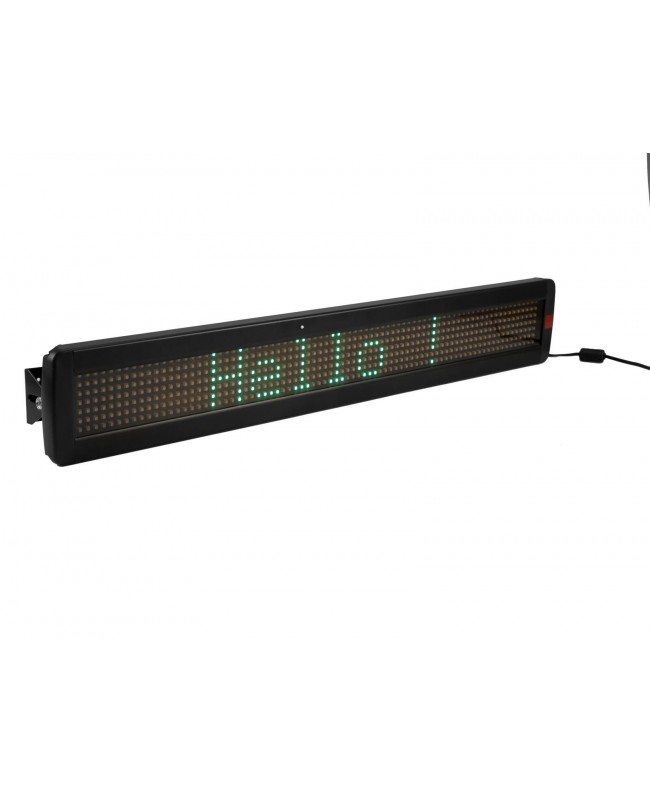

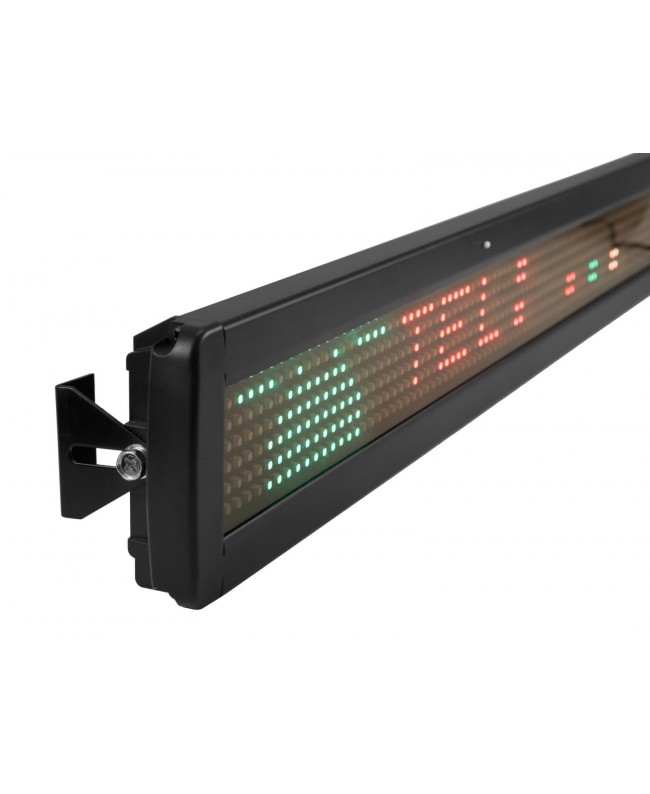

Eurolite ESN 7x80 USB LAN LED Moving Message Architectural Light
  • New

Eurolite ESN 7x80 USB LAN LED Moving Message

€186.00
Tax included

RG moving message display (7x80 pixels) with network connectivity, PC software and IR remote control

Qty

Available upon request

Free shipping

Compare

wishlist

Eurolite ESN 7x80 USB LAN LED Moving Message



  • Fully programmable via supplied IR remote control or with PC software via USB port and RJ45 network port
  • Dot matrix with 560 super bright SMD LEDs
  • Large database with various display effects, symbols and graphics
  • 99 editable memory locations
  • 8 editable bitmap memory locations, 7 font sizes, 16 color combinations, 8 display speeds, 24 display effects, 30 integrated symbols
  • 8 animated messages (Welcome, Merry X'Mas, Happy New Year etc.)
  • Programming of sequences
  • Timer function
  • 560 LEDs SMD 3535 R/G
  • The device is cooled by passive convection cooling
  • Control via IR remote control; network cable; via USB; wired remote control
  • With mounting bracket
  • For application areas such as: Advertisement/Shop window; Trade fair and shop fitting; wedding/gala/events; clubs/dancing school; restaurants, bars and hotels

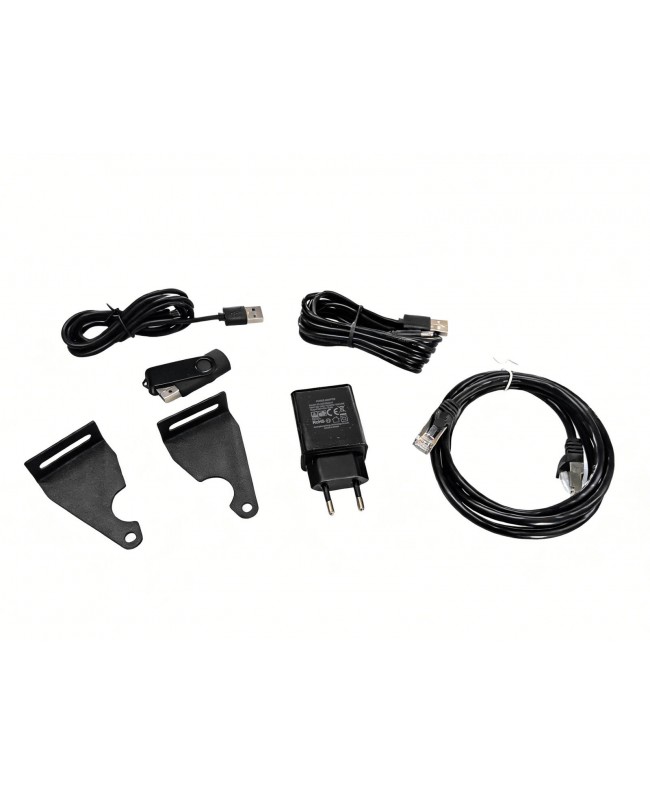

Scope of delivery

  • 1 x device
  • 1 x external mains adapter
  • 1 x USB stick
  • 1 x remote control
  • 1 x USB cable
  • 1 x network cable
  • 2 x angle
  • 2 x battery
  • Power supply: 5V DC
  • Power consumption: 12 W
  • IP classification: IP20
  • Protection class: Protection class III
  • Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included
  • Battery: 1.5 V AAA Micro LR03 alkaline manganese included
  • Lamp type: LED lamp
  • LED type: 560 x SMD 3535 R/G

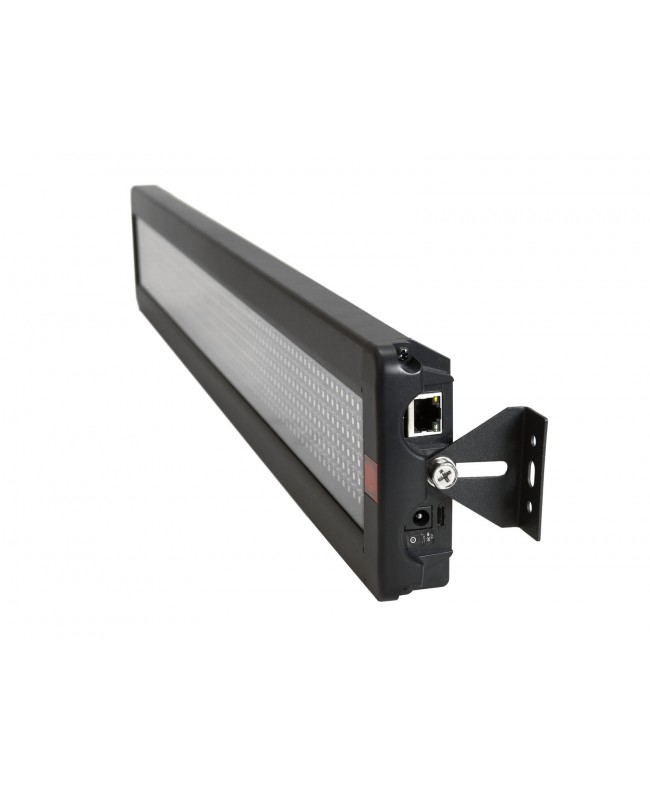

  • Network connection: Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version
  • Cooling: Passive convection cooling
  • Control: IR remote control; network cable; via USB; wired remote control
  • Image: Max. 7x80 px
  • Presentation: 1-line, 13 visible characters, 16 colors
  • Text: 7 fonts
  • Housing color: Black
  • Attachment system: 2x mounting bracket
  • USB port: USB 2.0, type micro USB (F) mounting version
  • Display: 60.5 cm x 5.5 cm
  • Dimensions: Width: 64.7 cm, Depth: 9.7 cm, Height: 3.5 cm
  • Weight: 1.25 kg
  • Power supply: 100-240 V AC, 50/60 Hz
  • Pin configuration: Inside + / outside -
  • IP classification: IP20
  • Protection class: Protection class II
  • Cable length: Approx. 1.5 m
  • Output: 5 V DC; 3 A; 15 W
  • Color: Black
  • Battery: 2 x Micro (AAA) included
  • Cable length: Approx. 1.5 m
  • Plug A: 1 x USB, type A
  • Plug B: 1 x micro USB (M)
  • Color: Black
  • Cable length: Approx. 1.5 m
  • Connector type: RJ-45 (M)
  • Color: Black
  • Diameter mounting holes: 1 x Ø8mm; 1 x Ø6mm
  • Material: Metal, 1.4 mm
  • Color: Black, matte

80500107
