Allen & Heath SQ MADI

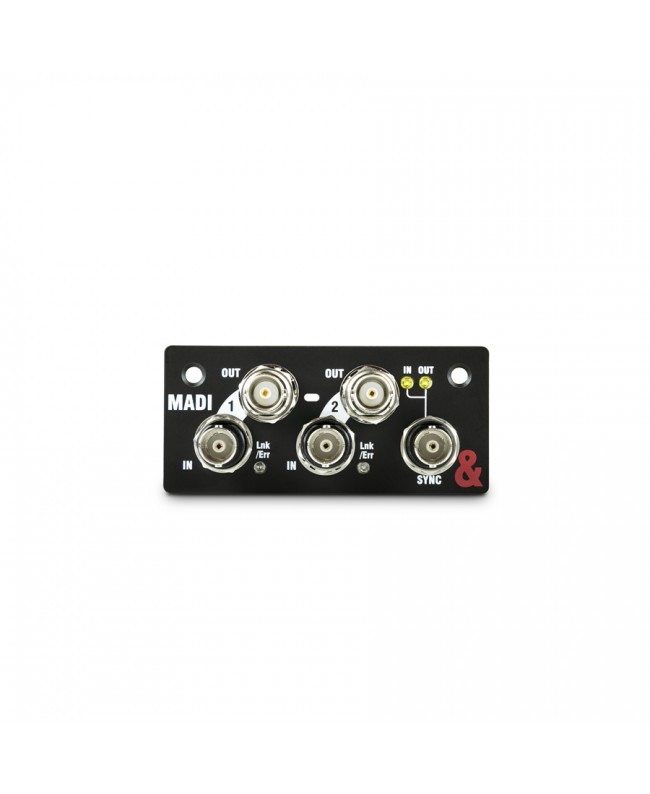

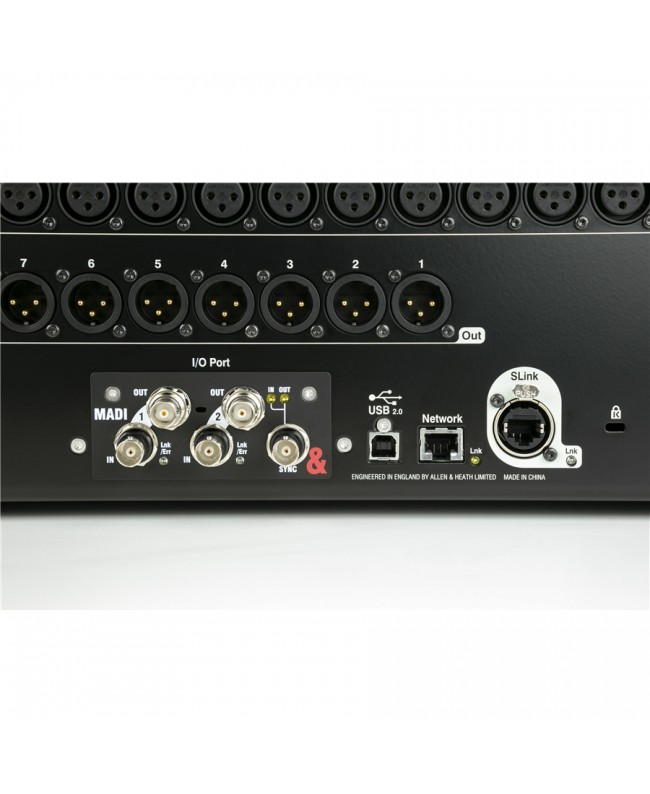

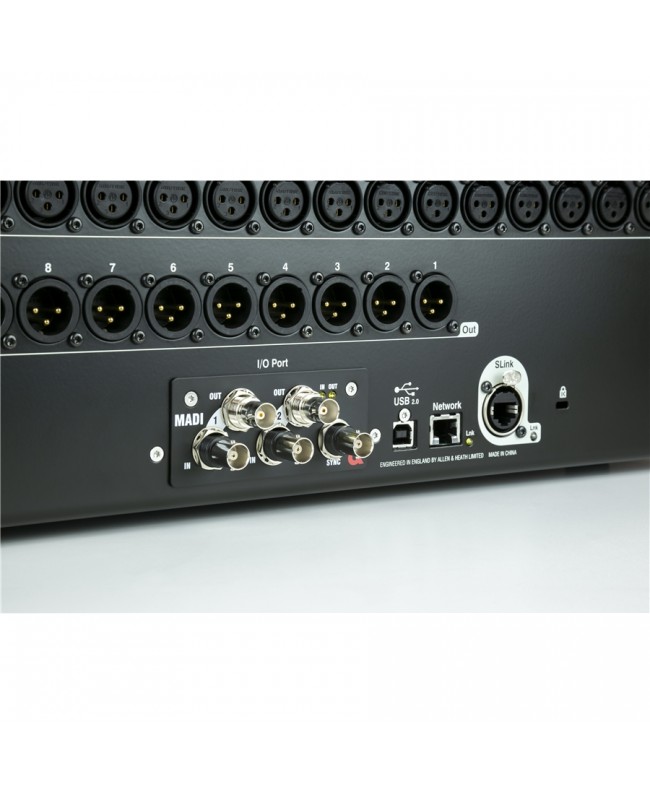

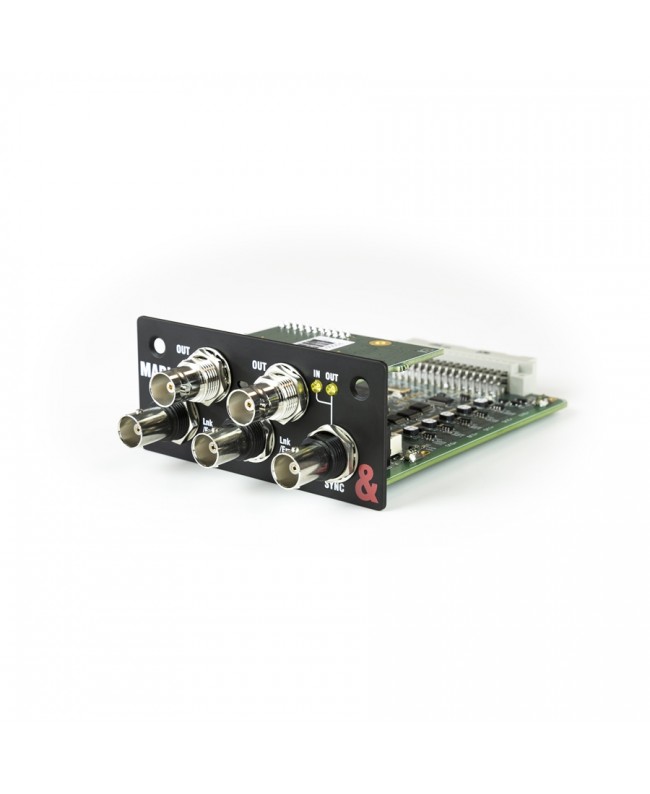

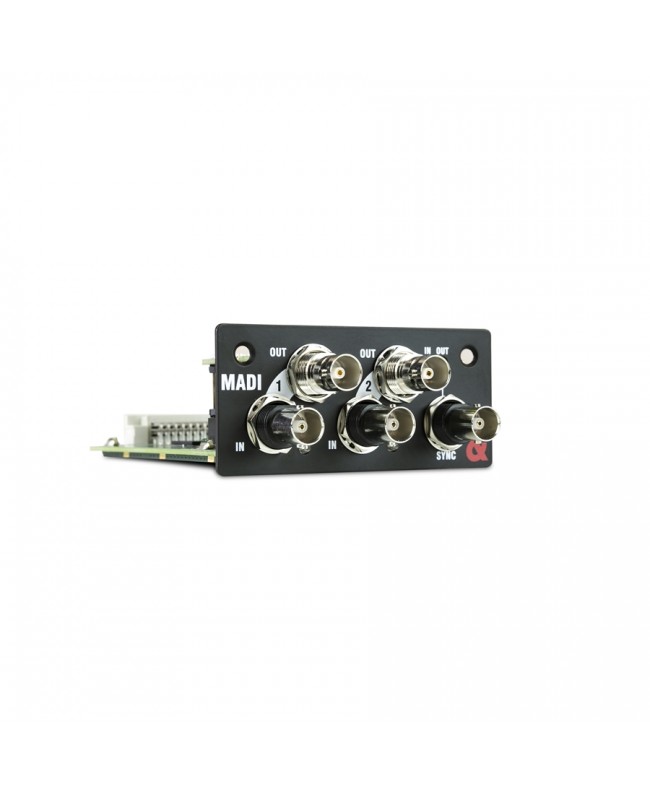

The SQ MADI Expansion Board allows any Allen & Heath SQ series mixer to add 64x64 MADI connectivity at 48kHz or 96kHz. Two pairs of BNC inputs and outputs allow operation in split or redundant configurations, while In and Out Sync connections-also in BNC format-allow the console to be configured in Master or Slave mode to fit any System or Setup.

The Allen & Heath SQ MADI card allows you to connect and synchronize to broadcast or multi-track recording systems, mobile or OB Van directories, and any third-party console to transmit and receive over coaxial cables a significant number of separate audio channels.

Features of the Allen & Heath SQ MADI

- 64x64 digital audio channels
- Operates at 96kHz or 48kHz
- Smux or HighSpeed modes at 96kHz
- Synchronization from inputs or via word clock
- Error handling from console
- 4 BNC connectors (2 links)
- BNC connections for Sync I/O Word Clock
