Quik Lok UA/1000-K Alimentatore Universale 1000 mA

Quik Lok - UA/1000-K

Multi-voltage power supply 12 W

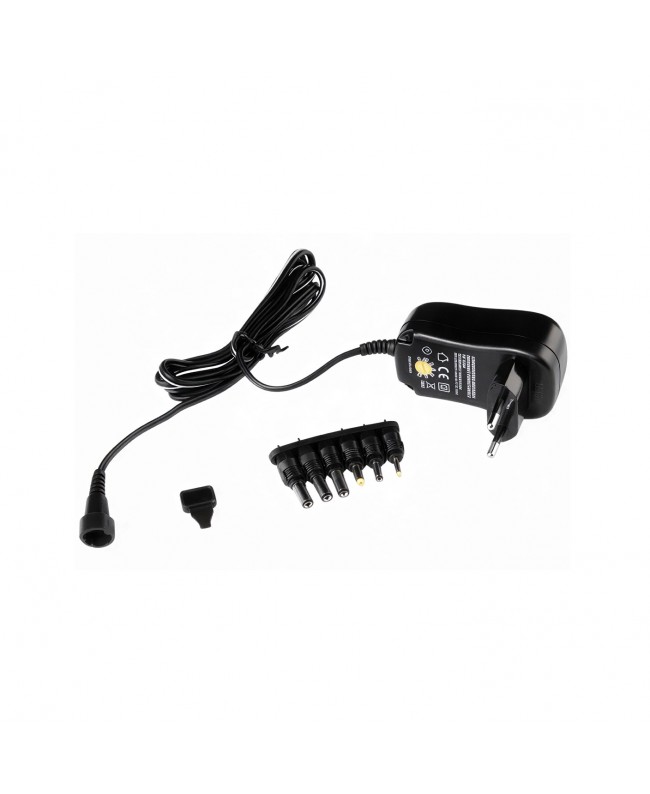

Universal stabilized switching power supply 1000 mA / 12 W of ultra-compact size. Direct input on socket 100 ÷ 240 VAC - 50/60 Hz and adjustable DC output (3/4.5/5/6/7.5/9/12 VDC - 1000 mA) via special rotary switch. The power supply has a universal connector to which one of the six supplied coaxial DC power plugs can be attached. It is possible to select the output voltage by operating the rotary switch with the supplied key. Equipped with a red status LED, it is suitable for supplying power to a variety of devices while ensuring a high degree of protection and high efficiency.

Specifications

Supplied power connectors:

- 0.75 x 2.35 mm

- 1.35 x 3.5 mm

- 1.5 x 5.5 mm

- 1.7 x 4.0 mm

- 2.1 x 5.5 mm

- 2.5 x 5.5 mm

Dimensions: 75 x 43 x 32 mm

Weight: 170 g

The Quik Lok UA universal power supply range consists of the models:

- universal switching power supply 600 mA / 7.2 W

- universal switching power supply 1000 mA / 12 W
