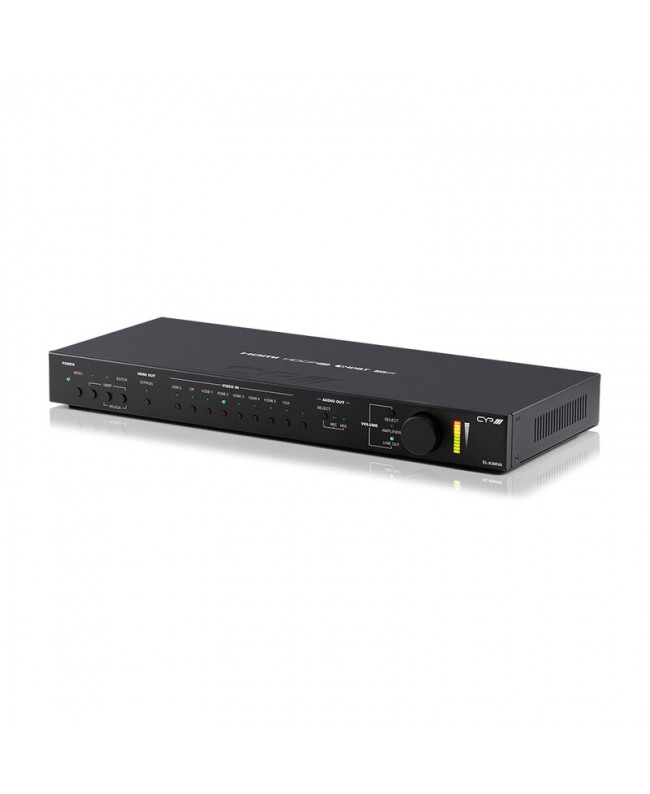

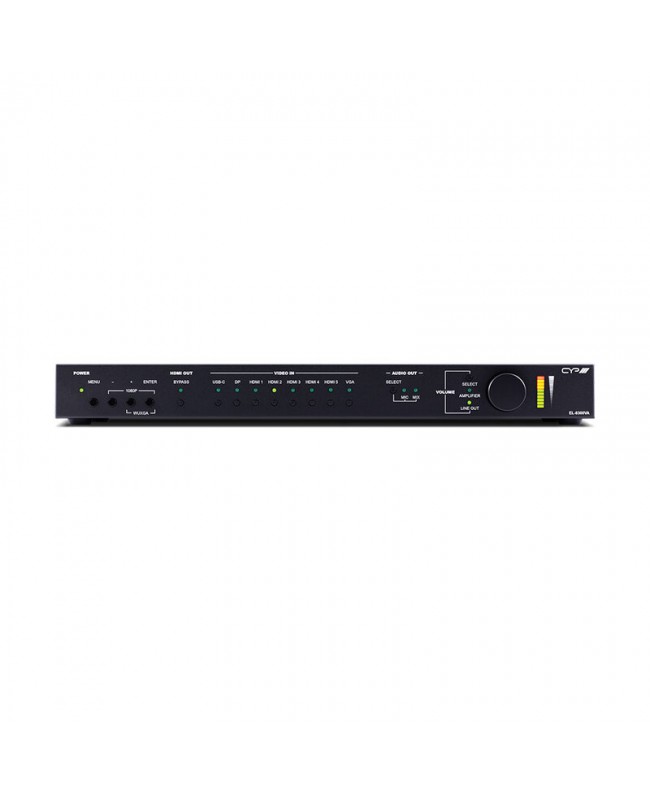

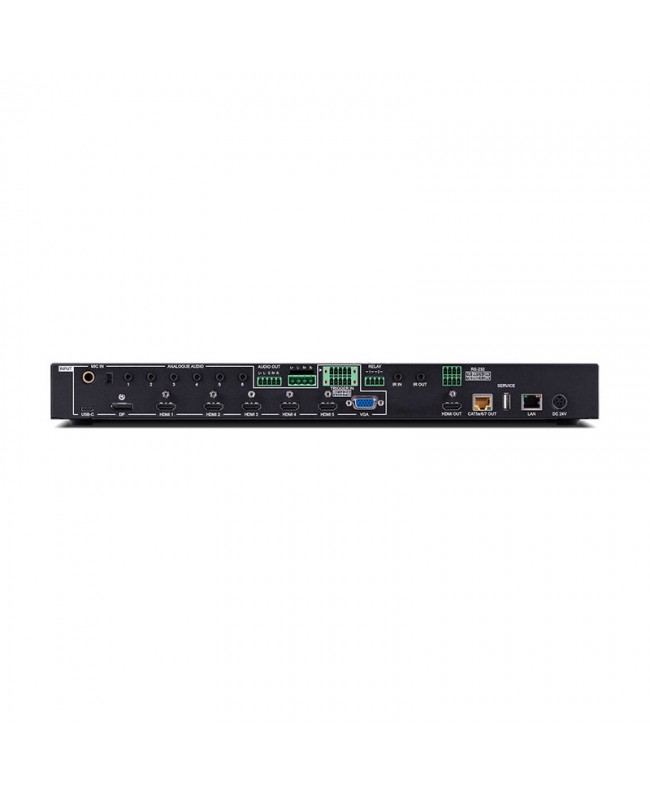

CYP EL-8300VA

The EL-8300VA is an advanced multi-format presentation switcher with built-in scaling, designed to handle HDMI, USB-C, Display. Port, and VGA signals with HDMI and HDBase. T outputs.

It supports video up to 4K and #64; 60 4:4:4, includes upscaling and downscaling, EDID and HDCP management, and features an extensive audio section with analog inputs, a microphone input, a built-in audio mixer, and a 2 x 20 W stereo amplifier. The HDBase. T output allows video, audio, control, and Ethernet transmission up to 100 m. Control is available via front-panel buttons, OSD, Web GUI, IP Telnet, triggers, and RS-232, making it ideal for conference rooms, classrooms, and presentation environments.

HDBase. T output transmits video and audio over a single Cat.5e/6/7 cable up to 100 m at 1080p and 70 m at 4K; automatic 6G signal conversion for HDBase. T compatibility

• Main features
• 8 X 2 presentation switcher with HDMI, Display. Port, VGA, and USB-C inputs
• Compliant with HDMI 2.0, DVI 1.0, and HDCP 2.2
• Split HDMI and HDBase. T outputs with scaling capabilities
• Supports up to 4K UHD video (18 Gbps, 4K and #64; 50/60 Hz 4:4:4, 8-bit) input and output (HDMI)
• Audio DSP function allows audio mixing from multiple inputs plus balanced microphone input
• Built-in 2 x 20W audio amplifier
• Trigger Control Keypad support for simple one-button control (optional)
• Control via OSD, RS-232, Telnet, Web GUI, and trigger
• Full EDID and HDCP management
• Supports standard Po. H from the unit to compatible HDBase. T receivers
• USB-C port provides up to 60 W of power to connected devices
• User benefits
• Greater presentation flexibility thanks to immediate management of heterogeneous sources
• Video quality is always optimized regardless of the resolution of the connected sources
• Reduces cabling and simplifies installation
• Professional audio experience with integrated mixing and microphone management for clear presentations
• Powers laptops and mobile devices without external power supplies via USB-C
• Quick and intuitive control even in non-USB-C environments manned
• Reduction in equipment requirements thanks to integrated amplification for passive loudspeakers
• Areas of use
• Conference rooms and meeting rooms
• Classrooms and educational environments
• Multi-format corporate installations
• Professional presentations
• AV systems with long-distance distribution
