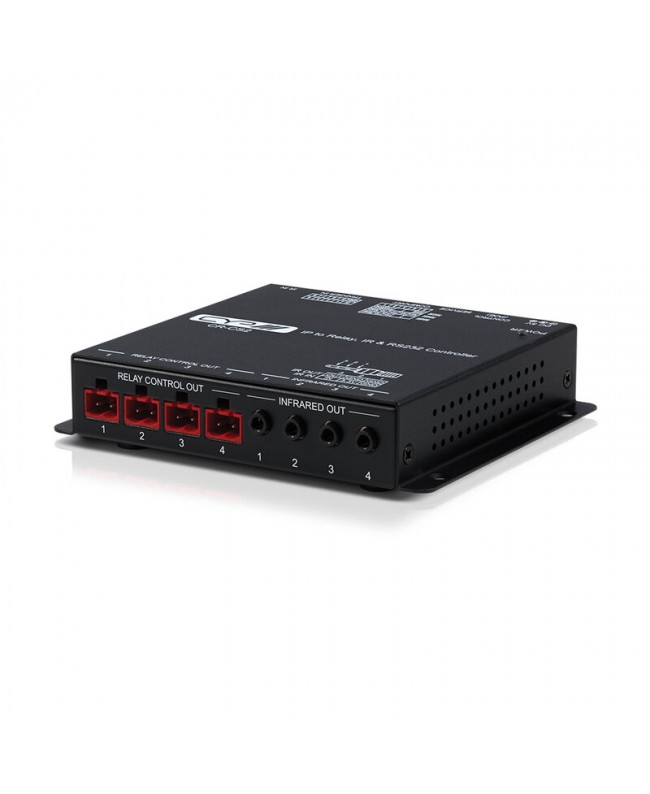

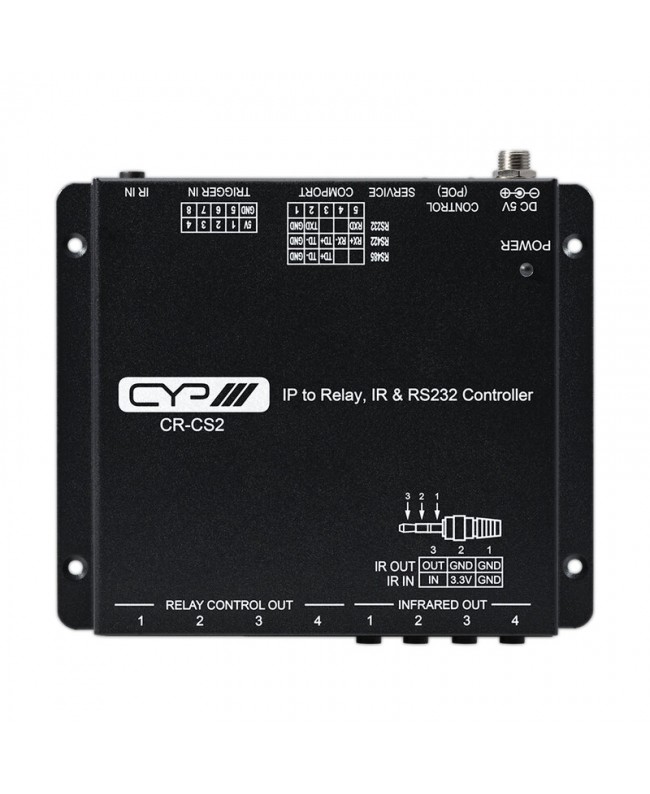

CYP CR-CS2

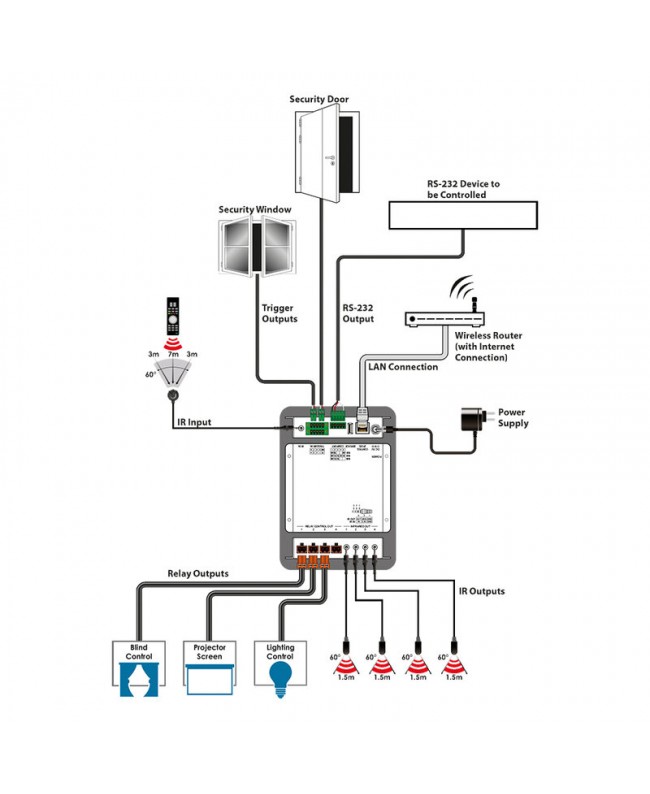

CR-CS2 is an IP controller designed to centrally coordinate AV devices and heterogeneous systems. It allows you to control multiple devices (screens, projectors, matrix switches, amplifiers, lights, curtains, etc.) from a single point, even if they use different protocols.

The unit offers 16 customizable macros, stored internally, which can be recalled via Web GUI, Telnet, or via the 8 dedicated trigger inputs. Each macro can send commands via network, IR, relay, or RS-232/422/485 serial port, allowing you to manage screens, sources, matrix switches, and other devices with a single interface.

The device also integrates an IR learning function, useful for acquiring and replicating standard remote control codes, simplifying the control of non-IP devices. Management can be performed via Web GUI, Telnet, or RS-232 console, offering flexibility during configuration. Thanks to Po. E support, the CR-CS2 can be powered directly from the network switch, reducing cabling and simplifying installation.

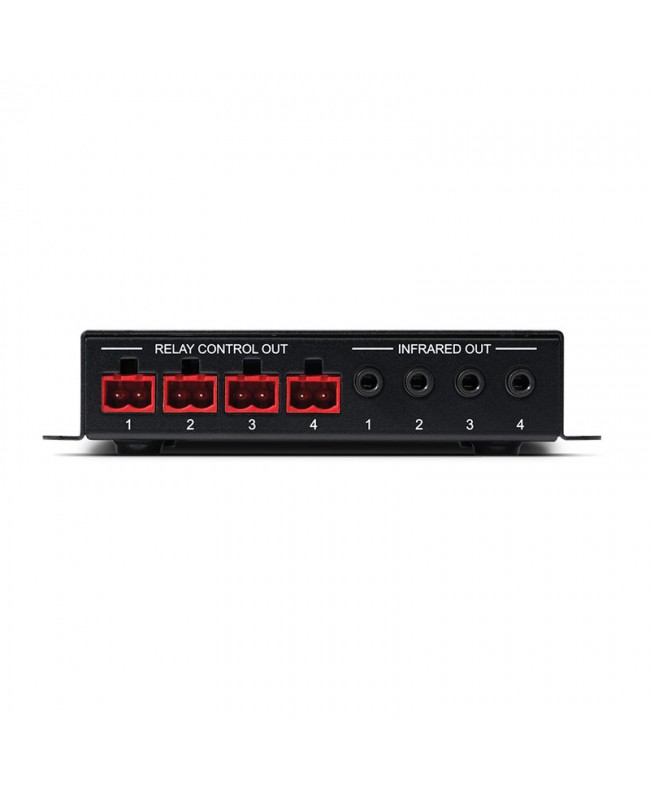

4 Relay outputs for controlling devices such as projection screens, lights, curtains, etc.

• Main features
• 16 User-defined macro events stored within the device

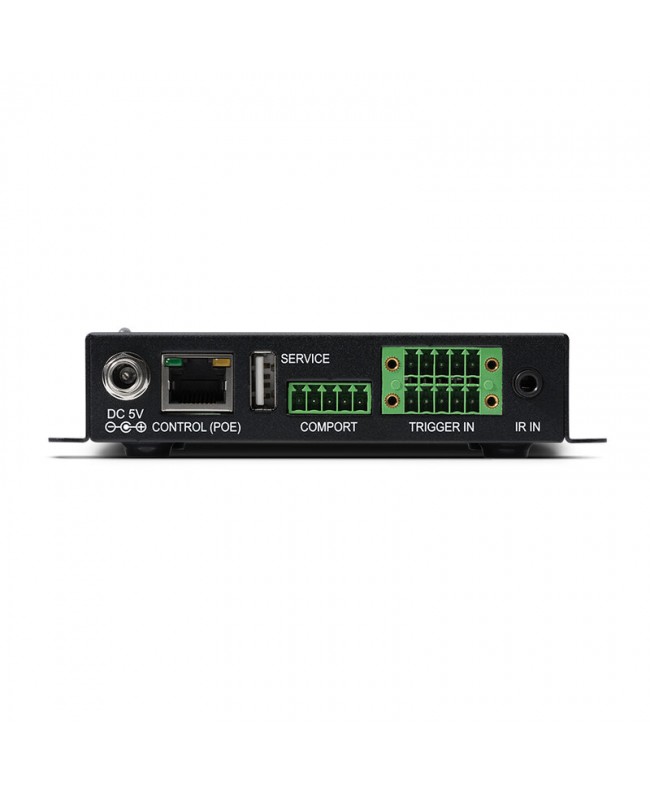

• 8 Trigger inputs connected directly to 8 user macros for immediate control activation
• 4 IR outputs for controlling devices such as sources and displays
• Built-in IR code learning function
• Multiple control interfaces including Web GUI, Telnet, and RS-232
• Easy configuration of macros, triggers, and relay settings via Web GUI
• Po. E (Power over Ethernet) support
• User benefits
• Centralized control of heterogeneous AV devices
• Instant activation via external triggers or custom macros
• Compatibility with relays, IR, and RS-232/422/485
• Built-in IR learning to manage existing remote controls
• Simplified installation with Po. E support
• Intuitive web interface for configuration and management
• Areas of use
• Conference rooms and meeting rooms
• AV automation in hotels, hospitality facilities, and corporate spaces
• Integration into classrooms and educational environments
• Centralized control in showrooms, shops, and exhibition spaces
• Professional AV systems requiring triggers, relays, and IR
• Installations with projectors, motorized screens and AV matrix switchers
