CYP XA-8P

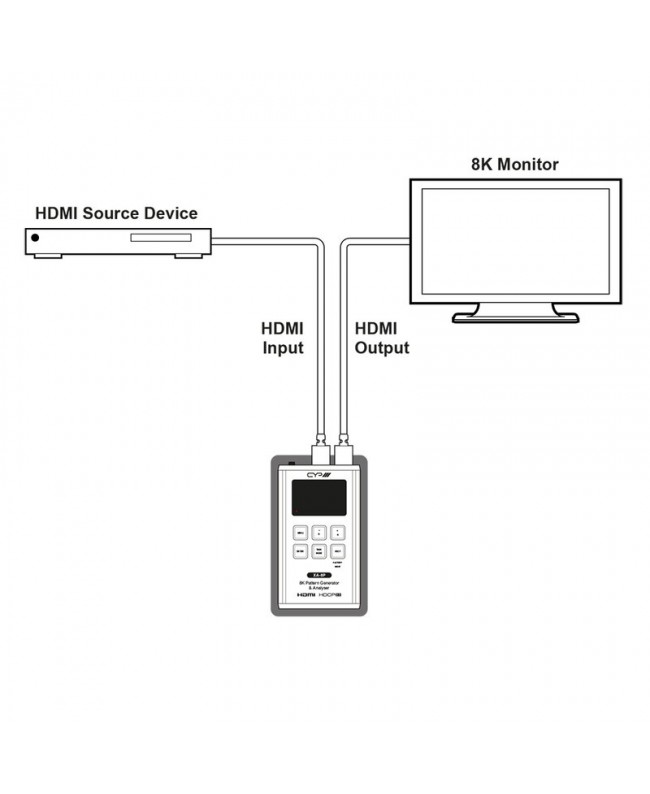

Verifying the integrity of an HDMI system is essential for any professional AV installer, especially with the increased demands of 8K, 4K HDR, and high-bandwidth signals. The XA-8P is an advanced, battery-powered portable instrument designed to comprehensively test and analyze the entire HDMI signal path, including source and display.

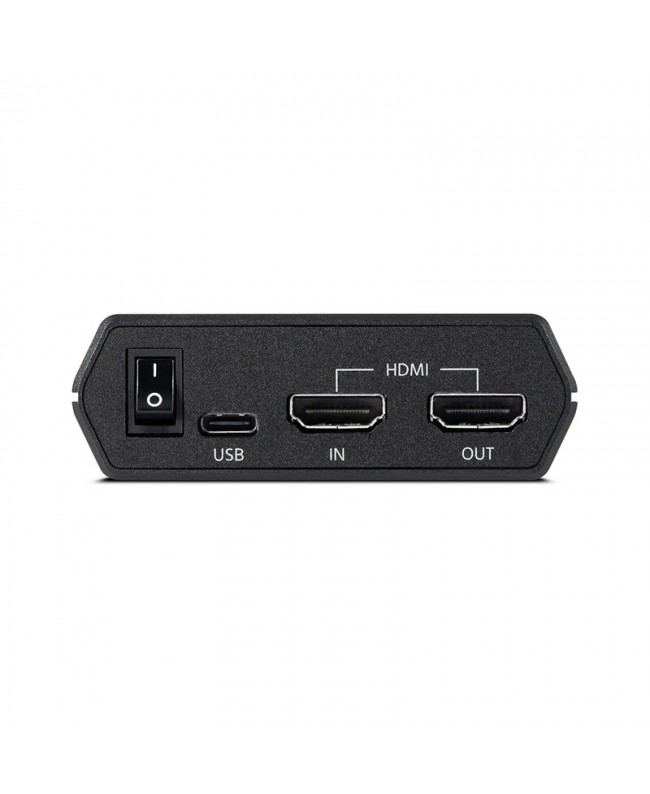

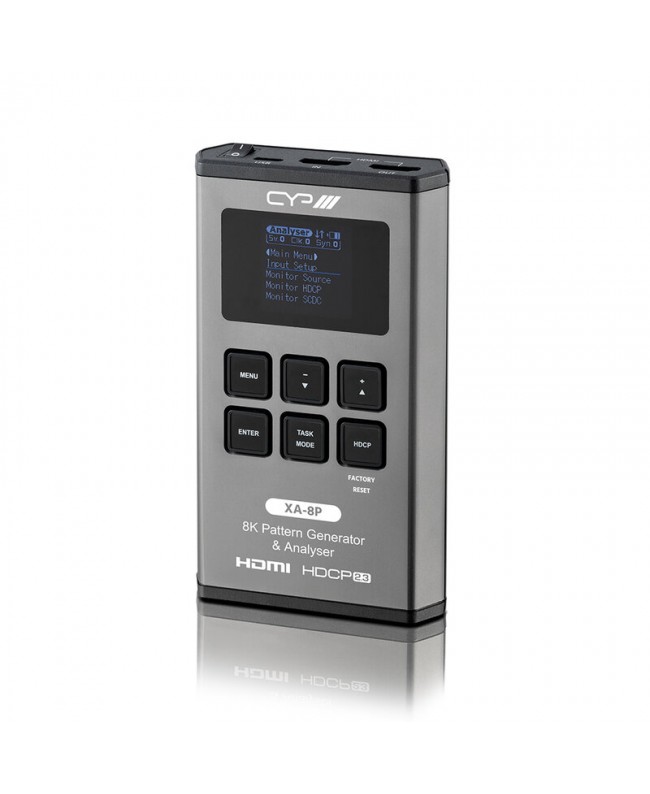

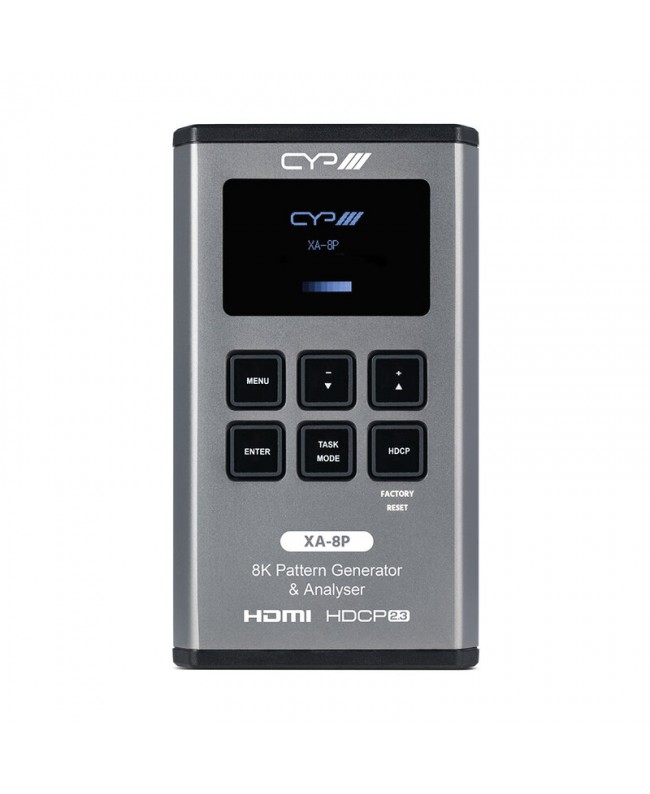

Compliant with HDMI 2.1 and HDCP 1.4/2.2/2.3, it integrates system analysis, pattern generation, and EDID management, offering a comprehensive set of tools for in-field diagnosis and verification. The front panel is designed for immediate use, while the HDMI connections are easily accessible on the top of the unit.

Battery power provides maximum flexibility for even the most complex installations; charging is via the USB-C port, which can also be powered by an external power supply or power bank.

• General features
• The generator (Test Pattern Mode) supports 40 selectable output resolutions up to 8K and 20 selectable test patterns
• HDMI 8K UHD and #43; input and output at 40 Gbps
• Resolutions up to 7680 x 4320 and #64; 60 Hz (4:2:0, 8-bit)
• Analyzer mode supports video, audio, timing, and packet analysis of 8K sources
• Comprehensive EDID management with analysis and emulation, 12 preset EDIDs, and 10 user-definable EDIDs
• Portable design fits in the palm of your hand with easy-to-use front controls
• OLED display with rapidly updated status information
• HDCP and SCDC monitoring functions
• HDR bypass, analysis, and generation function compliant with CEA HDR static metadata extensions CEA-861-G and CEA-861.3
• Supports the generation of up to 8 channels of LPCM audio with frequencies Adjustable sine waves for each channel
• Powered by a single lithium-ion battery (not included) or a USB-C power supply or external power bank
• DVI 1.0 compliant via HDMI-DVI adapter
• HDCP 1.4 and 2.3 compliant
• User benefits
• Instant diagnosis of HDMI issues directly in the field
• Reduced response times thanks to comprehensive testing without external devices
• Increased reliability in high-bandwidth 8K and 4K HDR installations
• Complete portability thanks to battery power and a handheld format
• Quickly check compatibility between sources, cables, and displays
• Single tool that replaces separate generators, analyzers, and testers
• Areas of use
• Professional and residential AV installations
• Corporate
• Broadcast and post-production studios
• Testing labs for integrators and manufacturers
• 8K and 4K HDR installations in retail and showrooms
• Technical support and maintenance for complex AV systems
