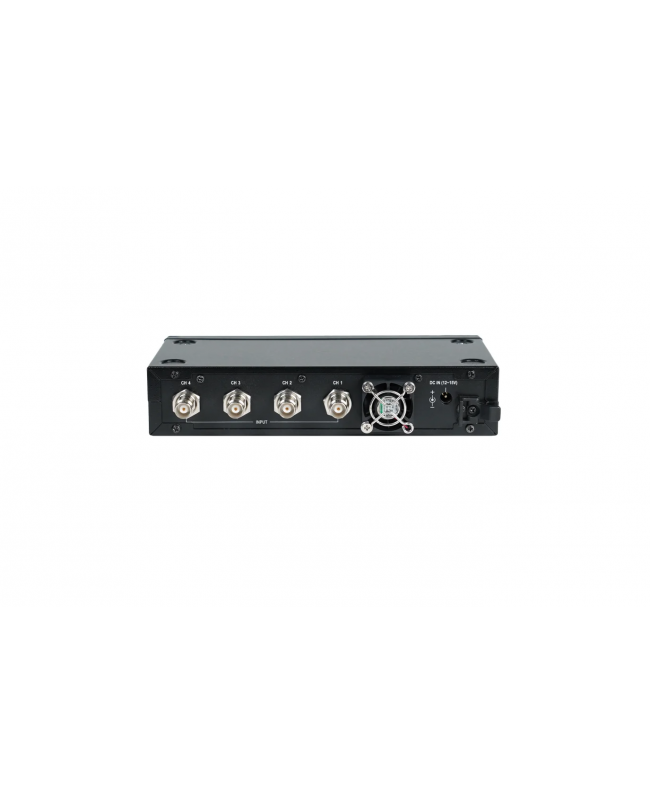

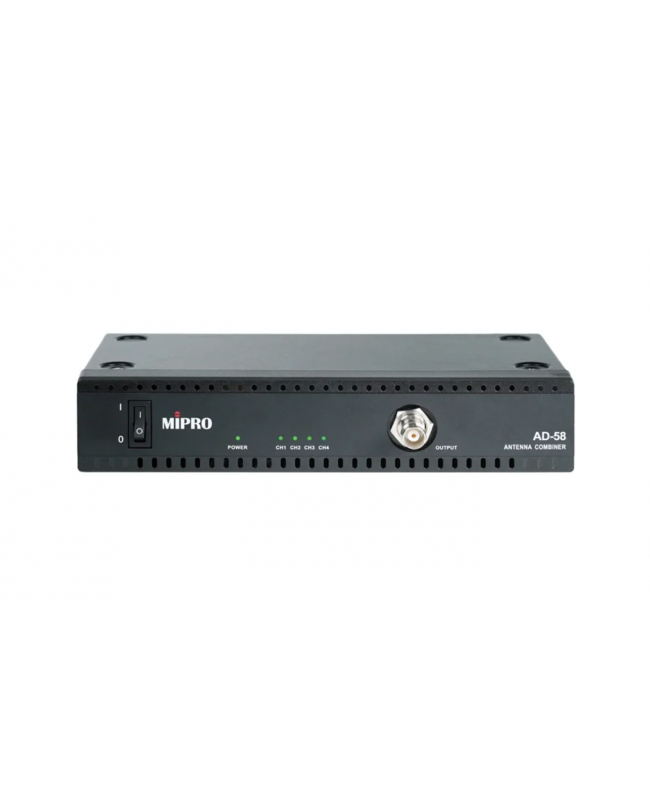

Mipro AD-58 Splitters & Combiners

Mipro AD-58


€317.00
Tax included

5 GHz 4-Channel Transmitting Antenna Combiner


Out of Stock

Free shipping


wishlist

Mipro AD-58



The AD-58 is a 5 GHz combiner that merges up to four MI-58 transmitters into a single antenna output. With a built-in 10 dB gain and RF overload indicators, it simplifies installation and ensures clean, interference-free IEM transmission. The AD-58 is a 5 GHz combiner that merges up to four MI-58 transmitters into a single antenna output. With a built-in 10 dB gain and RF overload indicators, it simplifies installation and ensures clean, interference-free IEM transmission. Combines up to four 5 GHz MI-58T / MI-58TD transmitters into a single antenna output, streamlining antenna infrastructure. Built-in high-linearity amplifier reduces signal loss and intermodulation distortion, ensuring clear and stable output quality. Reduces interference from multiple antennas and simplifies adjustments, enhancing multi-channel transmission stability and reliability.

  • 5 GHz 4-Channel Transmitting Antenna Combiner: Frequency Range
  • ISM 5.6: 5.9 GHz
  • Gain: 10 dB
  • Max. RF Input Power: 55 DBc
  • System Impedance: 50 Ω
  • Input Connectors: 4 × TNC
  • Output Connectors: 1 × TNC
  • DC 12: 15 V, AC 100 - 240 V
  • Dimensions: 210 × 44 × 101 Mm (W × H × D)
  • Weight: Approx. 840 g
