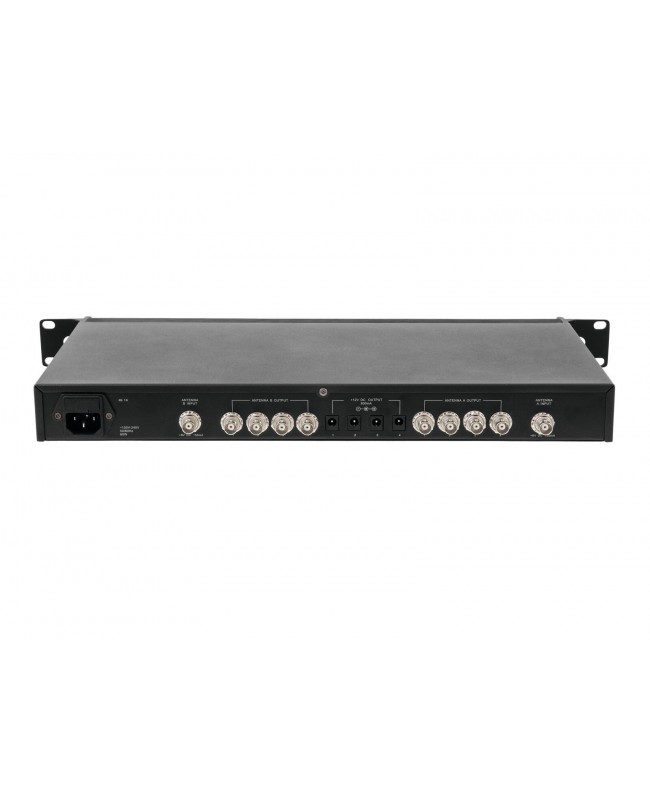

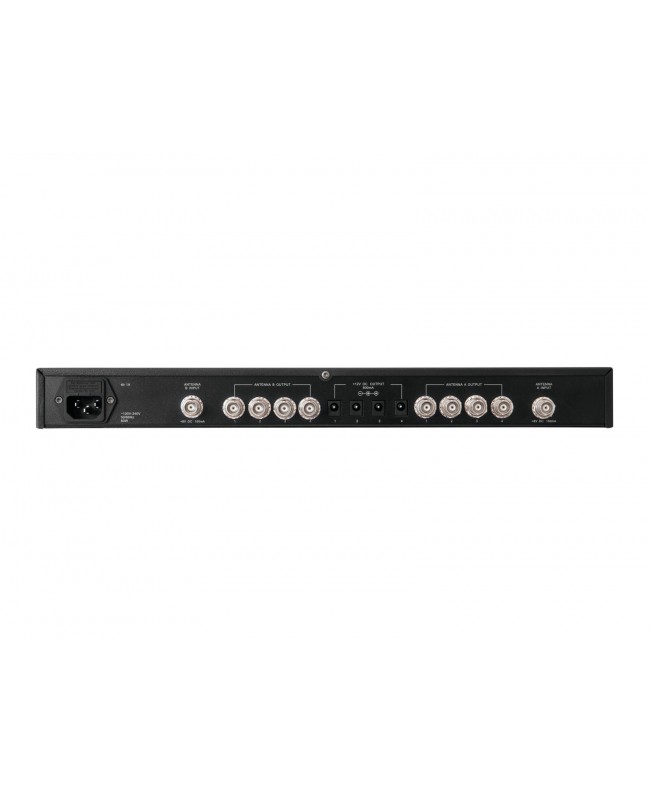

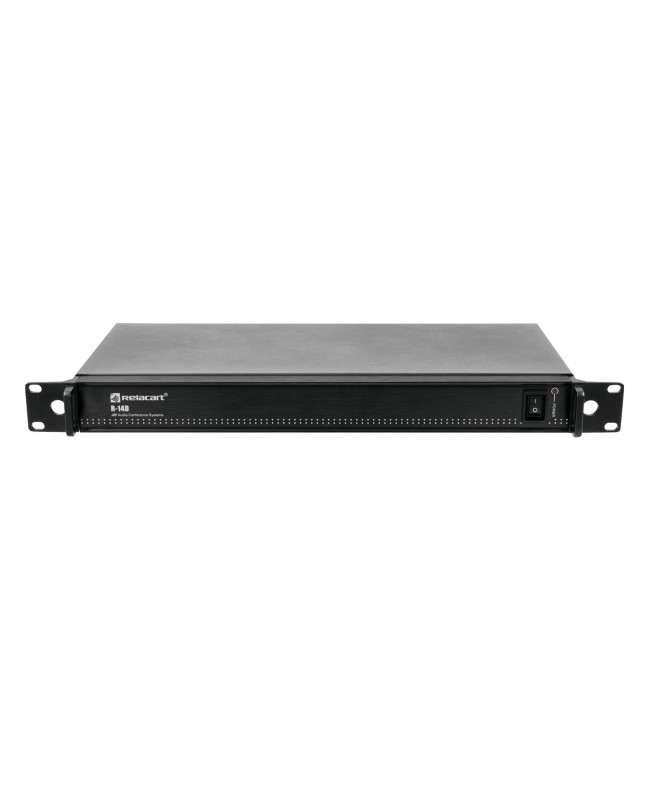

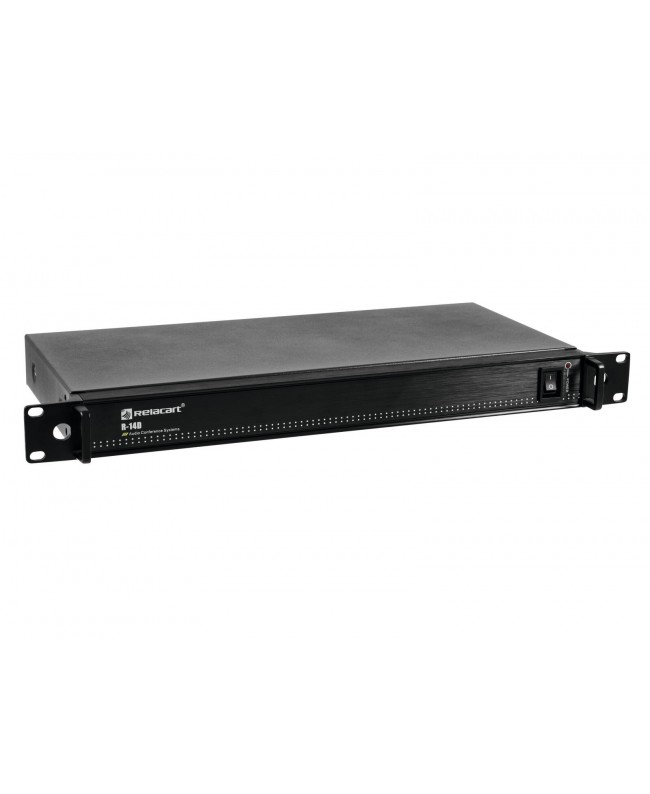

Relacart R-14D Antenna Distribution System

€368.00
Tax included

Antenna distributor (470 - 900 MHz)

Qty

Available upon request

Free shipping

Compare

wishlist

Relacart R-14D Antenna Distribution System



  • Active antenna distributor for operating up to four true diversity UHF receivers on one pair of multi-antennas
  • Improves the interference safety and enlarges the range
  • Replaces the respective antennas and PSUs of the individual receivers
  • Up to five antenna distributors R-14D can be connected among each other for use of 16 microphones in total
  • Low-voltage outputs for supplying four UHF receivers, incl. matching DC-connection cables
  • Use in the entire UHF frequency range (470 - 900 MHz)
  • All antenna connections via BNC jacks, incl. 10 x BNC cable
  • UHF 470 - 900 MHz License-free and approved in large parts of Europe
  • (19) 48.3 cm rack installation

Scope of delivery

  • 1 x device
  • 1 x power cord
  • 10 x BNC cable
  • 4 x adapter cable
  • 1 x user manual
  • 1 x declaration of conformity
  • Type: Antennas and distributors
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: Max. 60 W
  • Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
  • Impedance: 50 Ohm
  • Gain: Output: 0 dB
  • Frequency band: UHF 470 - 900 MHz
  • Output voltage: 4 x 12 V DC
  • Status LED: Power
  • Connections: Input: antenna via 2 x BNC (F) 8 V, Output: antenna via 8 x BNC (F)
  • Switch: On/off switch
  • Material: Metal
  • Color: Black
  • Housing design: (19) 48.3 cm rack installation
  • Dimensions: Width: 48.3 cm, Depth: 24.2 cm, Height: 4.45 cm
  • Weight: 3.00 kg
