LTECH LED Driver TRIAC
  • New

LTECH LED Driver TRIAC

LTECH
€65.30
Tax included

150 W - 24 V - NFC

Out of Stock

Compare

wishlist

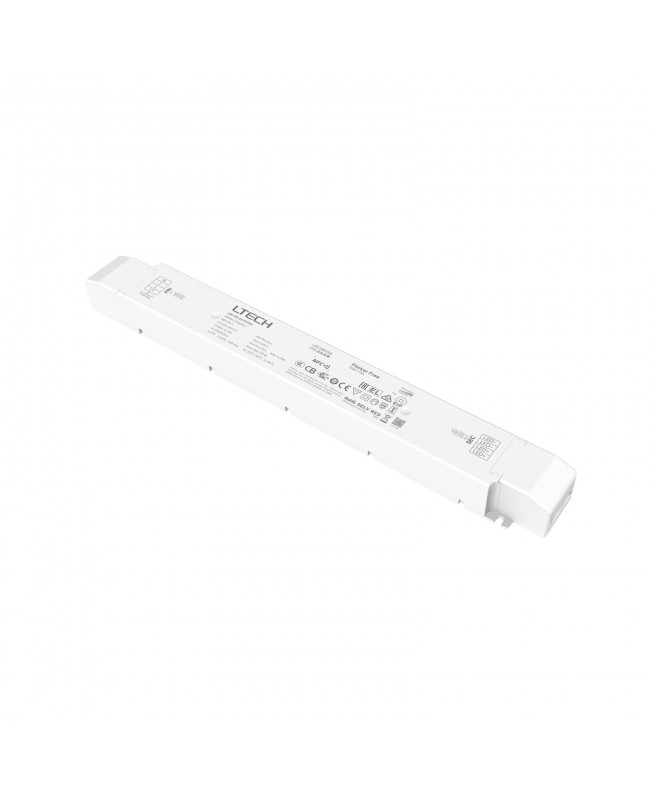

LTECH LED Driver TRIAC



This 150 W, 24 V LED Driver TRIAC has a soft-on and fade-in dimming function to enhance visual comfort. It offers flicker-free dimming from 0 to 100%. In addition to support for TRIAC (leading edge), it supports ELV (trailing edge) and Push DIM. As well as thermal management technology that protects the life of the LED driver, it has built-in safety features including overheat, over voltage, overload and short circuit protection with automatic recovery. It is also NFC capable, meaning that parameters like lighting voltage, PWM frequency and power translation time can be adjusted with a mobile app. Thanks to a dismountable end cap, the length of the V0 flame-retardant housing is adjustable.

  • Support for TRIAC, ELV and Push DIM
  • Flicker-free dimming from 0 to 100%
  • Built-in protection
  • Soft-on and fade-in dimming function
  • NFC
  • Control Mode: Push-dim / Triac (Phase cut dimming)
  • Dimmable: Yes
  • BT: No
  • Power Supply: 220-240 V AC 50/60 Hz
  • Output voltage: 24 V DC
  • Maximum Output Current (A): 6.25 A
  • Power Connector In: Open End
  • Power Connector Out: Open End
  • Length (mm): 352 mm
  • Height (mm): 30 mm
  • Width (mm): 43 mm
  • Weight: 0.46 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Plastic
  • Colour: White
  • Maximum Ambient Temperature: 50 °C
  • Minimum Ambient Temperature: -20 °C
  • Maximum Surface Temperature: 90 °C

LTECH
A9915409
