LTECH DMX LED Driver

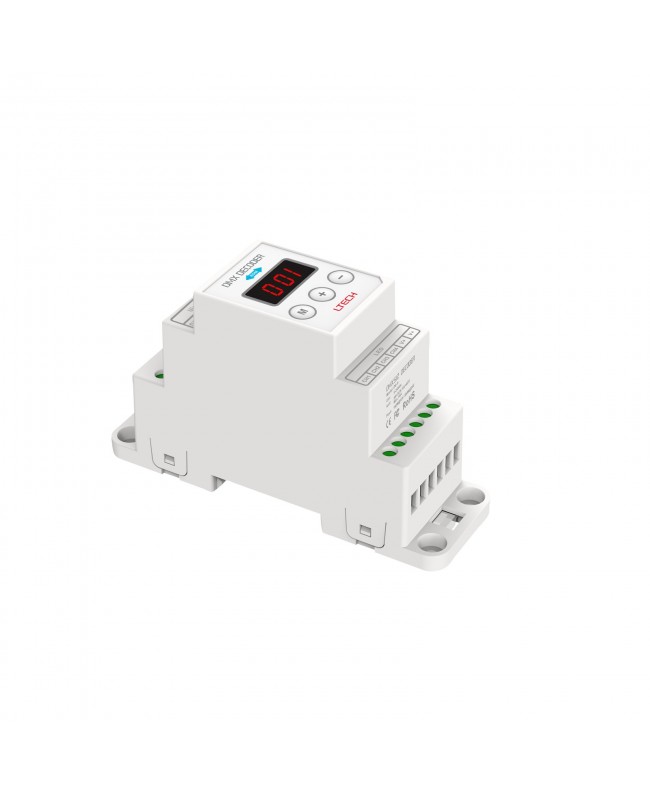

This 3x 5A / 4x 4A DMX LED Driver is designed for mounting on a DIN rail. It's equipped with DMX/RDM signal terminals. In DMX mode, its digital display shows information about the DMX address, the Bit depth, the PWM frequency, the dimming time and mode (standard and smooth) and the screen timeout. In custom mode, the display shows information about the lighting effects, the speed of colour changes, the brightness and more. The built-in control buttons can be used to easily adjust parameters. With the RDM protocol on board too, operations can also be completed via the RDM master console.

  • DIN rail mountable
  • Digital display and control buttons
  • 8-Bit/16-bit
  • Standard or smooth dimming
  • Built-in circuit protection
  • Control Mode: DMX / RDM
  • DMX Channels: 512
  • Dimmable: Yes
  • BT: No
  • Power Supply: 5-24 V DC
  • Maximum Output Current (A): 16 A
  • Power Connector In: Open End
  • Power Connector Out: Open End
  • Length (mm): 112 mm
  • Height (mm): 67 mm
  • Width (mm): 35 mm
  • Weight: 0.135 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Plastic
  • Colour: White
  • Mounting Options: DIN-rail
  • Maximum Ambient Temperature: 50 °C
  • Minimum Ambient Temperature: -25 °C

A9915307

Data sheet

Color
White
