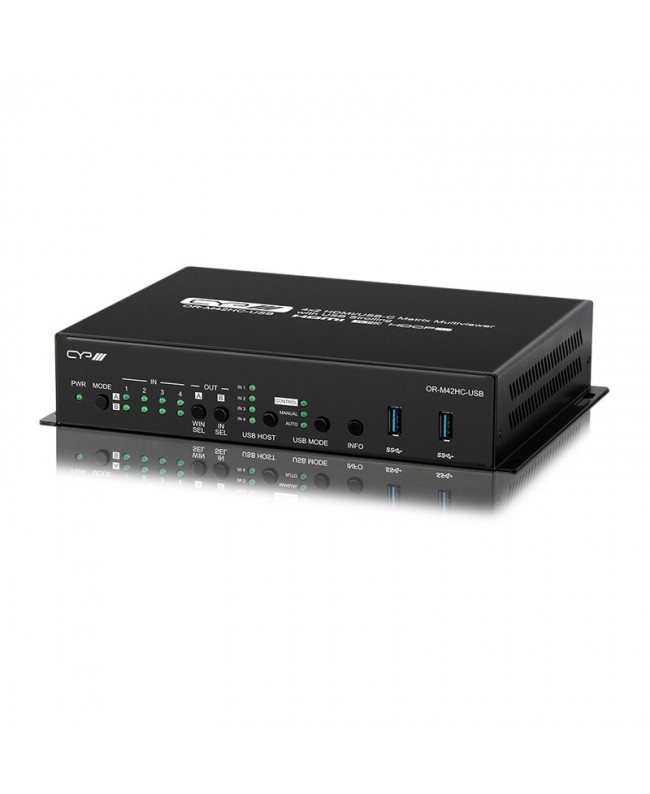

CYP OR-M42HC-USB

OR-M42HC-USB is a high-performance 4 x 2 HDMI/USB-C matrix switcher with built-in scaling, multi-window mode, and USB mouse control.

It allows you to simultaneously display and manage up to four different sources, including HDMI, USB-C AV, and USB data, outputting to two HDMI displays. Seamless switching prevents any loss of sync when switching between sources, making it ideal for control rooms, meeting rooms, corporate environments, and classrooms.

The system supports advanced display modes such as quad-view, Pi. P, and Po. P, with the ability to adjust the window size, position, and layout via a USB mouse. The two USB-C ports support USB 3.1 Gen 1 to Ethernet and DP video, while also providing 45 W and 30 W power delivery to connected devices. Management can be done via the front panel, Telnet, RS-232, or OSD with a USB mouse and keyboard.

Compatible with video signals up to 4K and #64; 60 4:4:4 and with HDCP 1.x and 2.2 standards, the matrix offers a complete and flexible solution for managing multiple AV sources in real time.

• Main features
• 2 HDMI inputs, 2 USB-C inputs, and 2 HDMI outputs up to 4K and #64; 60Hz 4:4:4

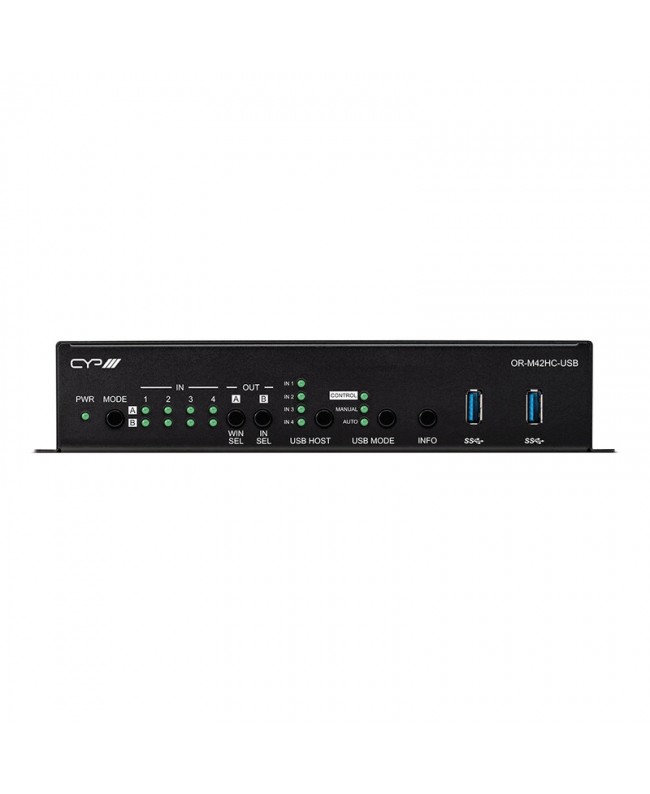

• Control via front buttons, Telnet, RS-232, and OSD with USB mouse/keyboard
• The 2 USB-C ports support USB 3.1 Gen 1 to Ethernet and DP video
• The 2 USB-C ports provide 4 5W and 30 W of power to connected devices, respectively
• Pi. P, Po. P, and quad-view support with independent audio selection or auto-switching via USB function
• Seamless switching without sync loss in matrix and multiview modes
• Adjust window size, position, and settings via USB mouse
• Save multiview presets for later recall
• The selected window is highlighted with a live border
• DVI 1.0 compatible via HDMI-DVI adapter
• HDCP 1.x and 2.2 compliant
• User benefits
• Fluid operation thanks to Control layouts and sources directly with a USB mouse
• Reduced switching times thanks to seamless switching between sources
• Simultaneous display of sources for real-time monitoring and comparison
• Instant integration into existing AV systems thanks to industry-standard control protocols
• Ability to recall saved configurations to speed up setup in recurring scenarios
• Areas of use
• Control and monitoring rooms
• Meeting rooms
• Corporate environments
• Classrooms and training environments
• AV installations with multiview management
• IT/AV applications requiring centralized USB switching and control
