CYP EL-21PIP

The EL-21PIP is a 2x1 HDMI switcher with integrated multiview and Picture-in-Picture technology, designed to display two sources simultaneously on a single display with free-positioning modes and multiview configurations.

It supports inputs up to 4K and #64; 30Hz (4:4:4, 8-bit) and outputs up to 1080p and #64; 60Hz, offering advanced features such as Chromakey, bitmap logo loading, OSD, Web GUI, Telnet, RS-232, and IR control. It includes de-embedded audio output, trigger input, and RAX-600 compatibility, making it ideal for commercial and residential AV installations.

• Main features

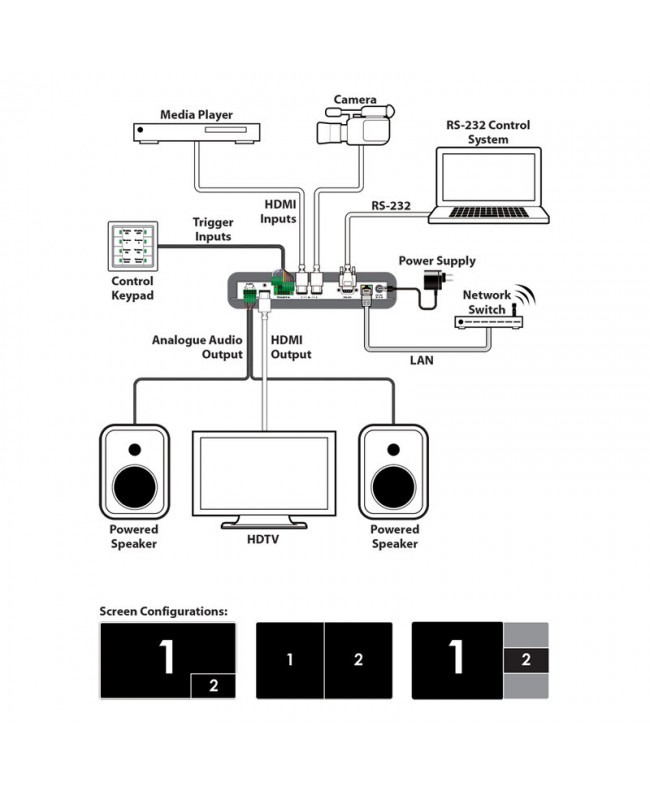

• 3 Multiview configuration modes
• Free positioning mode
• Upload and display of bitmap logos
• Input supports HD resolutions up to 4K and #64; 30 Hz (4:4:4, 8-bit)
• Output supports HD resolutions up to 1080p and #64; 60Hz
• Chromakey support
• OSD, Web GUI, Telnet, RS-232, and IR remote control
• Direct Trigger Input (CR-TG1 compatible)
• De-embedded audio output
• Compatible with RAX-600
• User benefits
• Simultaneous display of two sources on a single display
• Free window positioning for custom layouts
• Flexible control via network, serial, or IR remote
• Insertion of logos for branding or graphic overlays
• Audio extraction for external audio systems
• Trigger compatibility for AV automation
• Areas of use
• Meeting rooms and conferences
• Multi-screen commercial installations
• Digital Signage
• Classrooms and training (education)
• Control and supervision stations
• Hospitality
