CYP EL-8500VA


€2,882.00
Tax included

Advanced multi-format 4K presentation switch, HDMI, USB-C, VGA and HDBaseT inputs, integrated scaler, audio mixer, 2 x 20 W amplifier, flexible control options


Qty

Available upon request

Free shipping


wishlist

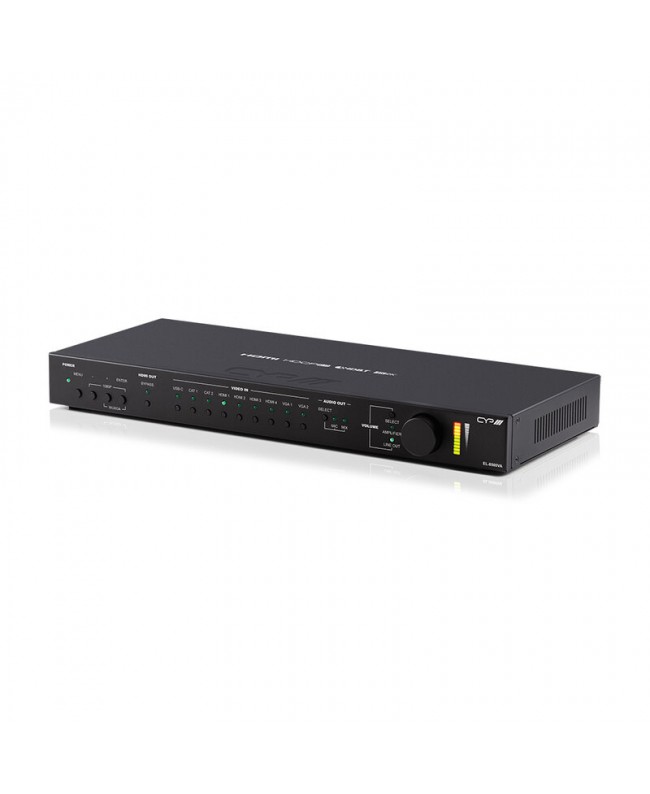

CYP EL-8500VA

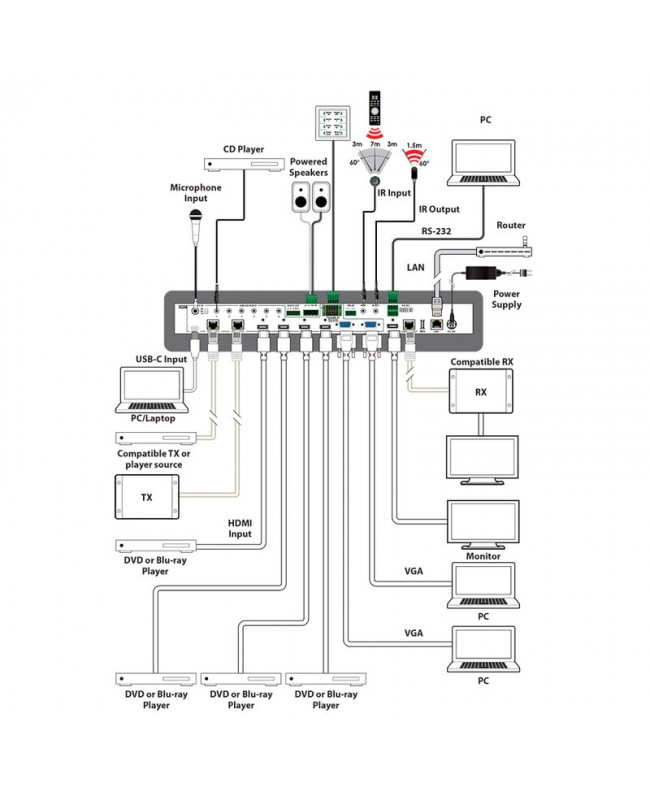

The EL-8500VA is a multi-format presentation switcher with a built-in scaler, designed to handle HDMI, USB-C, HDBase. T and VGA inputs and send the signal to duplicate HDMI and HDBase. T outputs.

It supports resolutions up to 4K and #64; 60 4:4:4 on HDMI and USB-C, with automatic downconversion for HDBase. T output. It enables AV transmission up to 70 m in 4K and 100 m in 1080p over a single Cat.5e/6/7 cable, also providing Po. H to compatible receivers. It includes analog audio inputs, a microphone input, a built-in audio mixer and a 2 x 20 W stereo amplifier, offering extensive flexibility for presentations and teaching environments.

Control is available via front-panel buttons, OSD, web GUI, Telnet, RS-232, and triggers for simplified automation.

Supports up to 4K UHD video (18 Gbps, 4K and #64; 50/60 Hz 4:4:4, 8-bit) input and output. N.B. HDBase. T output automatically downconverts 4K and #64; 50/60 (4:4:4) sources to 4K and #64; 50/60 (4:2:0) to maintain compatibility

  • Main features
  • Switching and scaling of all AV inputs for display on duplicated HDMI and HDBase. T outputs
  • HDBase. T output transmits video and audio over a single Cat. 5e/6/7 cable up to 100 m at 1080p and 70 m at 4K
  • Supports pass-through of many audio formats, including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
  • Audio mixer function allows audio from any analog input to be mixed with the microphone input
  • Built-in 2 x 20 W audio amplifier
  • Trigger Control Keypad support for easy one-button activation of functions (optional)
  • Supports standard Po. H from HDBase. T output (PSE) to a connected HDBase. T receiver (PD) (compatible receivers only)
  • Full EDID and HDCP management (HDCP 2.2)

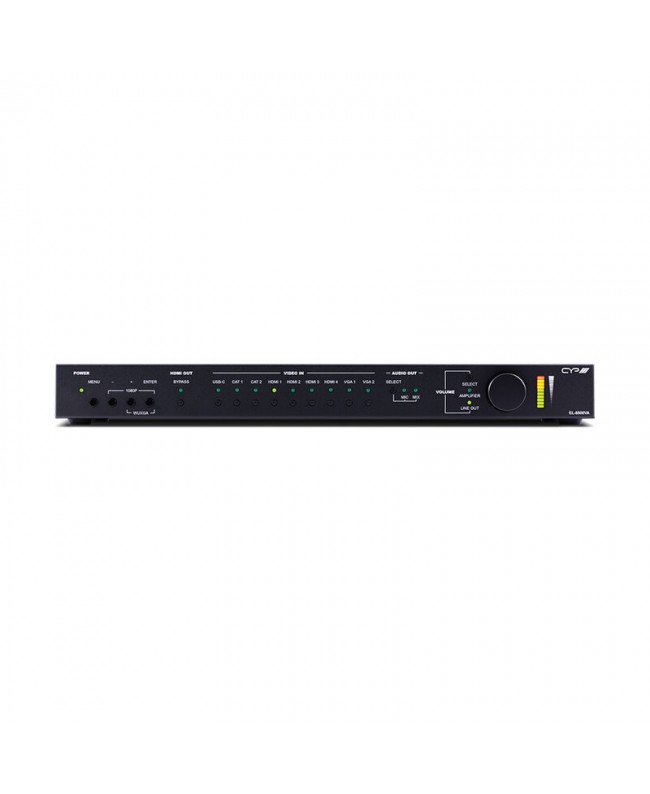

  • Controlled via front buttons with OSD, RS-232, Telnet, Web GUI, and triggers
  • USB for service/firmware updates
  • User benefits
  • Simplified integration of heterogeneous sources in conference rooms and classroom environments
  • Consistently optimized video quality thanks to automatic source scaling
  • Reduced cabling and increased reliability with long-distance AV transmission via HDBase. T
  • Microphone/line input mixing
  • Ability to directly drive passive speakers without the need for external amplifiers
  • Intuitive control thanks to multiple management interfaces
  • Simple automation via triggers for single-button scenarios
  • Areas of use
  • Conference rooms and meeting rooms
  • Classrooms and educational environments
  • Multi-format corporate installations
  • Professional presentation spaces
  • Long-distance AV systems
  • Technical characteristics

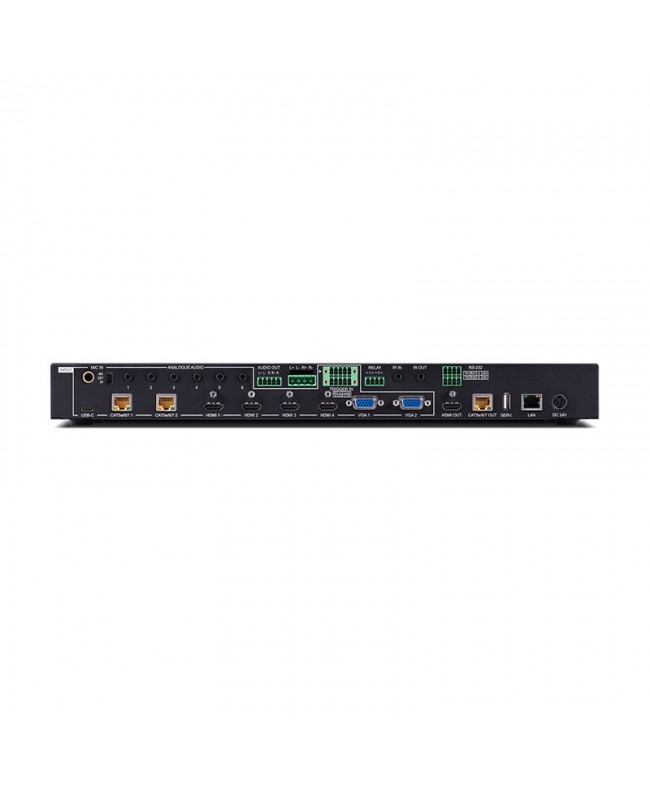

Inputs

  • 4 x HDMI (uncompressed AV and data)
  • 2 x RJ45 (HDBaseT HDMI and propriety data)
  • 2 x 15-Pin Dsub (VGA RGBHV)
  • 1 x 6.35 Mm stereo jack (microphone)
  • 6 x 3.5 Mm stereo mini-jack (stereo L/R)
  • 1 x Phoenix (10-pin) (trigger in 8)
  • 1 x 9-Pin dsub (RS-232 control data)
  • 1 x 3.5 Mm stereo mini-jack (infra red receiver)
  • 1 x RJ45 (IP control)
  • 1 x USB-C (USB-C / Thunderbolt)

Outputs

  • 1 x HDMI (uncompressed AV and data)
  • 1 x RJ45 (HDBaseT HDMI and propriety data)
  • 2 x 3.5 Mm stereo mini-jack (stereo L/R)
  • 1 x 3.5 Mm stereo mini-jack (infra red emitter)
  • POE PSU: PoH
  • PSU: 24 VDC 6.25 A
  • Dimensions (W x H x D): 43.2 x 4.3 x 17.4 cm
  • Net weight: 2.6 kg

CYP-EL-8500VA
