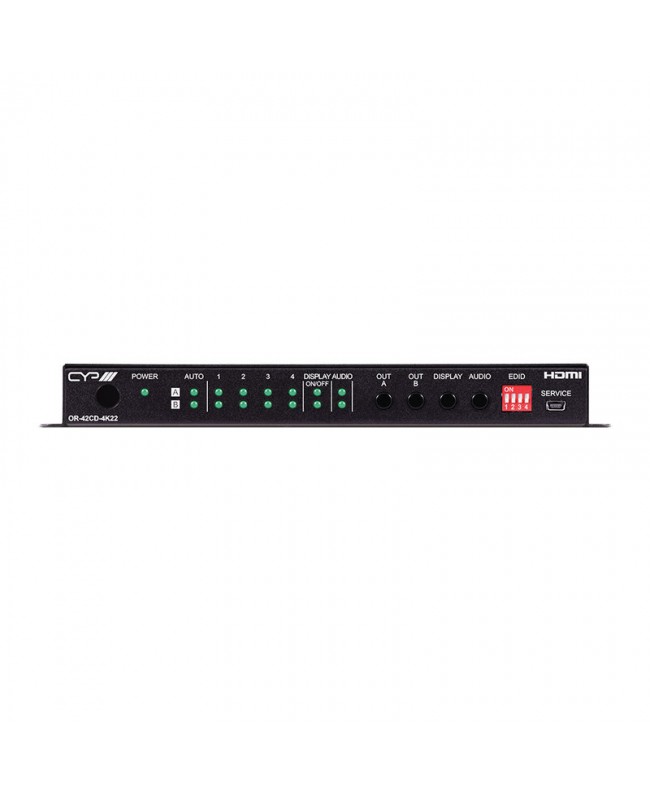

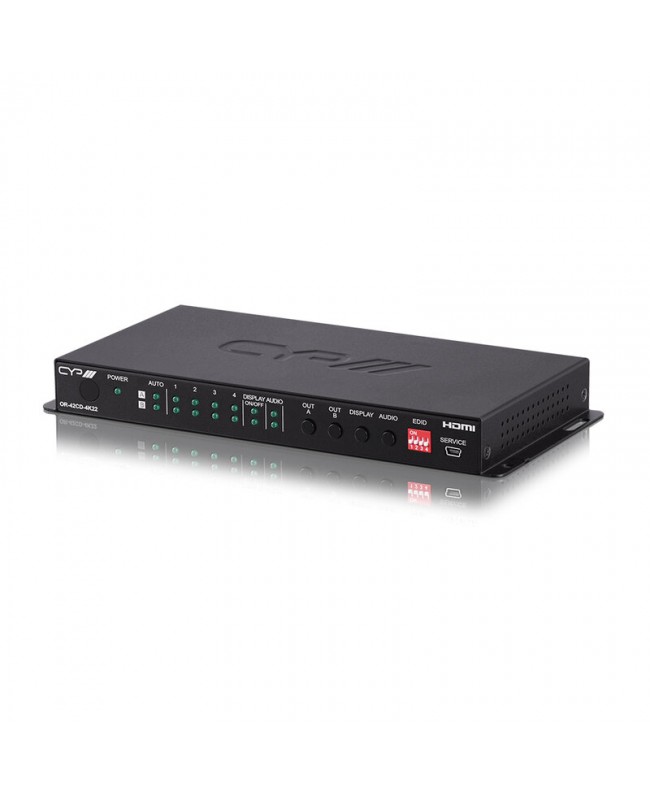

CYP OR-42CD-4K22

The OR-42CD-4K22 is a 4 x 2 HDMI matrix switcher designed to handle 4K HDR sources and displays with full HDMI 2.0, HDCP 2.2, and HD audio format support.

It allows seamless switching between four HDMI inputs and two HDMI outputs, with sequential or discrete selection. It supports 4K and #64; 60 4:4:4, 16-bit Deep Color, HDR, 3D, and high-definition audio. It includes an analog stereo audio output derived from the selected HDMI output and offers independent EDID management for each input.

The matrix switcher also integrates output auto-switching and display power control via CEC or RS-232. Control is available via front panel buttons, RS-232, and IR remote control.

Supports up to 4K UHD and #43; video input and output (18 Gbps, 4K and #64; 50/60 Hz 4:4:4, 8-bit, and HDR)10-bit and 12-bit HDR (High Dynamic Range) inputs and outputs

• Main features
• HDMI 2.0 and DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant

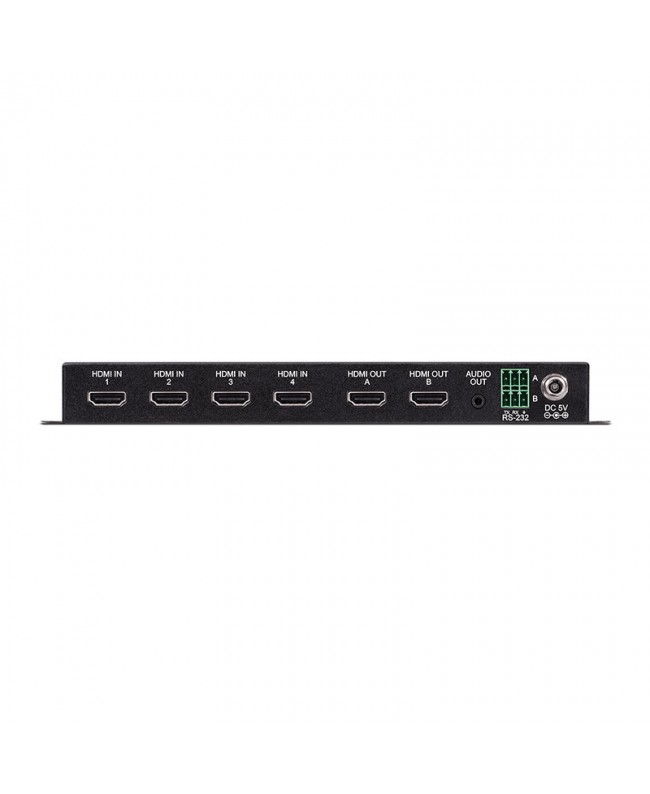

• 4 HDMI inputs and 2 HDMI outputs
• Matrix switching with sequential input selection via front-panel controls or discrete input selection via IR and RS-232 remote control
• Pass-through of many audio formats, including 8-channel LPCM, Bitstream, and HD Bitstream
• High-quality DAC provides local analog stereo audio output from the selected HDMI output (LPCM 2.0 sources only)
• Independent EDID management per input with internal or external EDID options
• Basic display power automation via RS-232 and CEC
• Controlled via front buttons, RS-232, and IR remote control
• User benefits
• Easily manage multiple sources and displays in meeting rooms and AV installations
• Consistently optimal video quality thanks to full 4K HDR support
• Increased operational reliability thanks to independent EDID management for each input
• Immediate and intuitive control via front buttons, IR, and RS-232
• Easy integration with automation systems thanks to CEC and RS-232 control
• Stereo audio extraction for direct connection to local audio systems
• Areas of Use
• Meeting rooms and meeting rooms
• Classrooms and educational environments
• Corporate multi-display installations
• All applications requiring audio de-embedding
