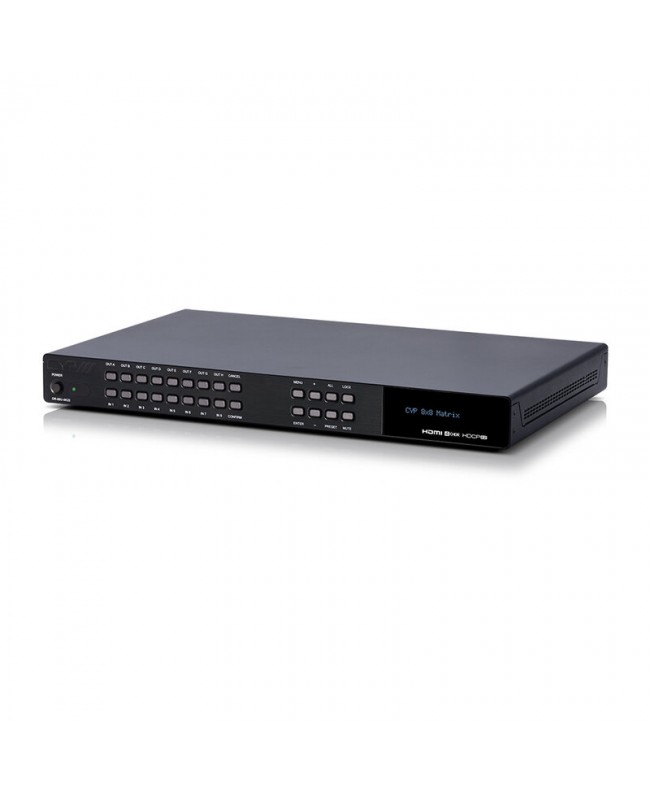

CYP OR-88U-4K22

This 8 x 8 HDMI matrix switcher is designed to route eight HDMI sources to eight HDMI displays, ensuring full compatibility with the latest 4K UHD 60 Hz 4:4:4 content, HDR, and high-definition audio. Compliant with HDMI 2.0 and HDCP 2.2 standards, it ensures maximum interoperability with 4K players, decoders, consoles, and professional monitors.

It supports all the advanced features of the HDMI 2.0 standard, including Deep Color, HDR, and audio formats such as LPCM 7.1, Dolby Digital, Dolby True. HD, Dolby Atmos, and DTS-HD Master Audio. Each HDMI output also features a 5 V / 1 A USB power port, useful for powering external devices such as extenders, dongles, or small players.

Management is extremely flexible: the matrix can be controlled via front buttons, IR remote control, RS-232, Telnet, or Web. GUI, allowing for easy integration into professional AV systems.

• Main features

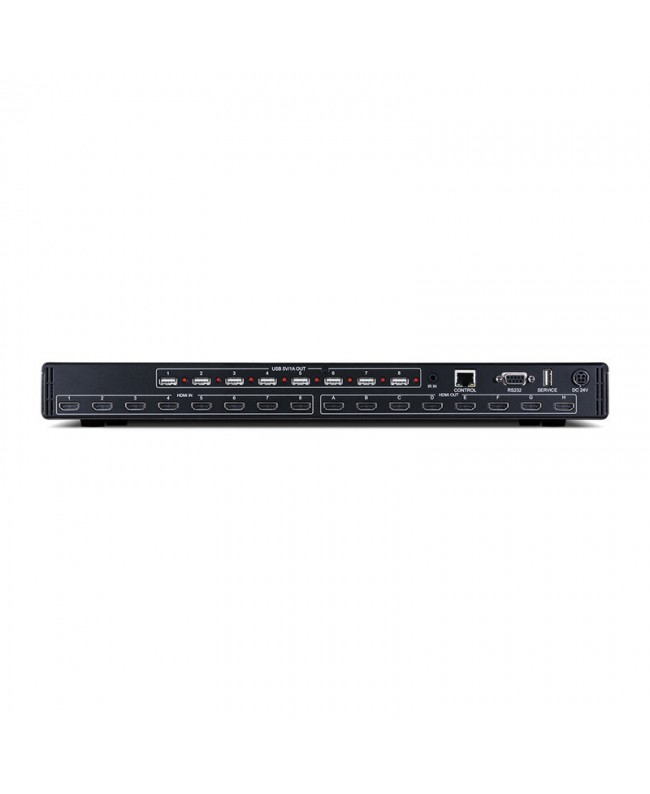

• Inputs: 8 x HDMI, 1 x IR (3.5 mm), 1 x RS-232 (DB9), 1 x RJ45 (IP control)
• Outputs: 8 x HDMI, 8 x USB Power 5 V / 1 A for powering AOC cables or external devices
• Compliant with HDMI 2.0a, DVI 1.0 and HDCP 2.2
• Routes eight HDMI sources to eight HDMI displays
• Full support for 4K UHD 60 Hz (4:4:4, 8-bit) and 4096 x 2160 and #64; 60 Hz (4:4:4, 8-bit)
• HDR and Deep Color support up to 16-bit (1080p 60)
• HD audio format pass-through: LPCM 2.0 / 5.1 / 7.1, Bitstream, and HD Bitstream
• Advanced EDID support: 6 EDIDs internal, 8 external EDIDs copied from displays, 4 user EDIDs
• OSD menu with customizable information text

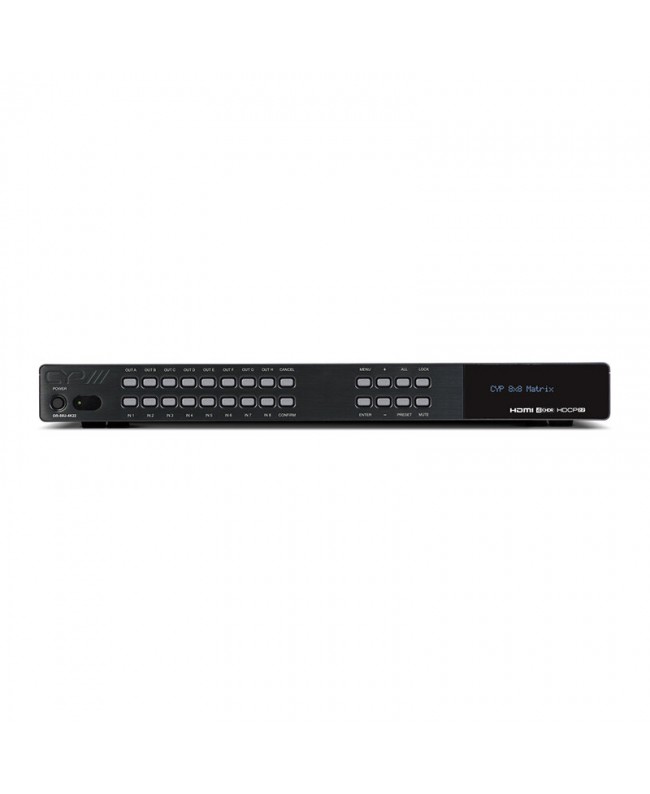

• Control via front buttons with LCD, IR, RS-232, Telnet, and Web. GUI
• User benefits
• 4K 60 Hz 4:4:4 video quality
• Easy and instant management of multiple 4K sources
• Full compatibility with the latest high-definition video and audio formats
• Flexible control via Web GUI, Telnet, RS-232, or IR remote control
• Direct power supply of external devices via USB Power 5 V / 1 A on each HDMI output
• Areas of use
• Boardrooms and meeting rooms with simultaneous management of multiple sources and displays
• Corporate environments
• Digital signage with UHD distribution across multiple screens
• Retail, hospitality, and exhibition spaces
• Classrooms and training centers
