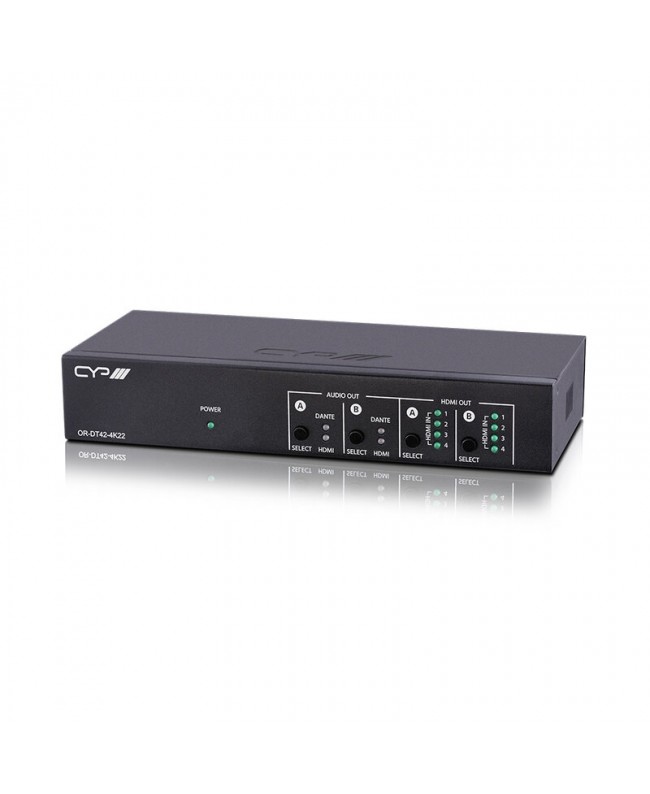

CYP OR-DT42-4K22

The OR-DT42-4K22 is a 4 x 2 HDMI matrix switcher with integrated Dante technology, designed to handle 4K UHD and #43; (18 Gbps) video signals and Dante / AES67 network audio in a single compact unit. It allows you to switch four HDMI sources to two HDMI outputs, with the option of extracting analog audio for each output or replacing it with a Dante stream from the network.

It supports resolutions up to 4K and #64; 60 Hz 4:4:4, 8-channel LPCM audio, and HD bitstream formats. Dante audio is managed via third-party software such as Dante Controller. The matrix switcher is controlled via the front panel, Web. GUI, RS-232, or Telnet.

• Main features
• HDMI 2.0 and DVI 1.0 compliant (with HDMI-to-DVI adapter)
• HDCP 1.x and 2.2 compliant

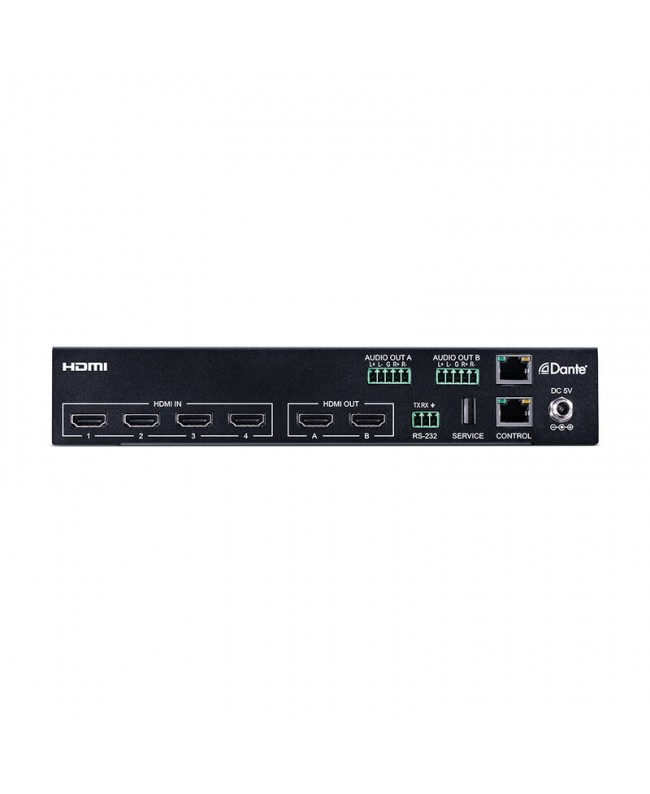

• 4 HDMI inputs and 2 HDMI outputs
• 4 X 2 matrix switcher with analog audio extraction for each output
• Supports up to 4K UHD and #43; video (18 Gbps, 4K and #64; 50/60 Hz 4:4:4, 8-bit) input and output
• Supports pass-through for numerous audio formats, including 8-channel LPCM, Bitstream, and HD Bitstream
• Audio for each output can be selected between the routed HDMI source or an independent Dante audio source
• Compatible with Dante and AES67 networks for near-zero-latency transmission and reception of uncompressed audio
• Easy network audio routing via third-party software (Windows and mac. OS)
• EDID management for each input with internal or external EDID options
• User benefits
• Direct integration with Dante / AES67 networks
• Independent analog audio extraction for each output
• Ability to replace HDMI audio with Dante audio

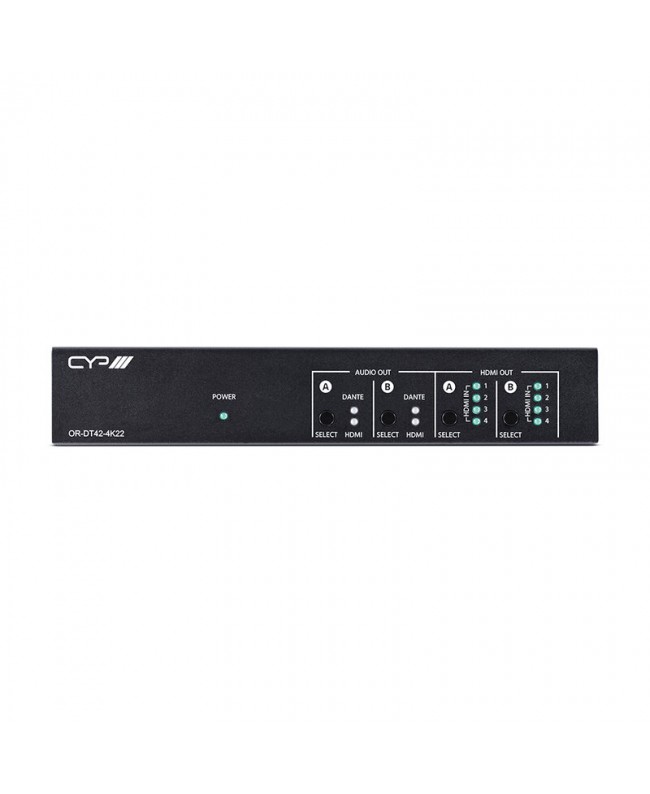

• Flexible control via Web GUI, RS-232, Telnet, and front panel
• Areas of use
• Conference rooms
• Control rooms
• Classrooms
• Professional AV installations
