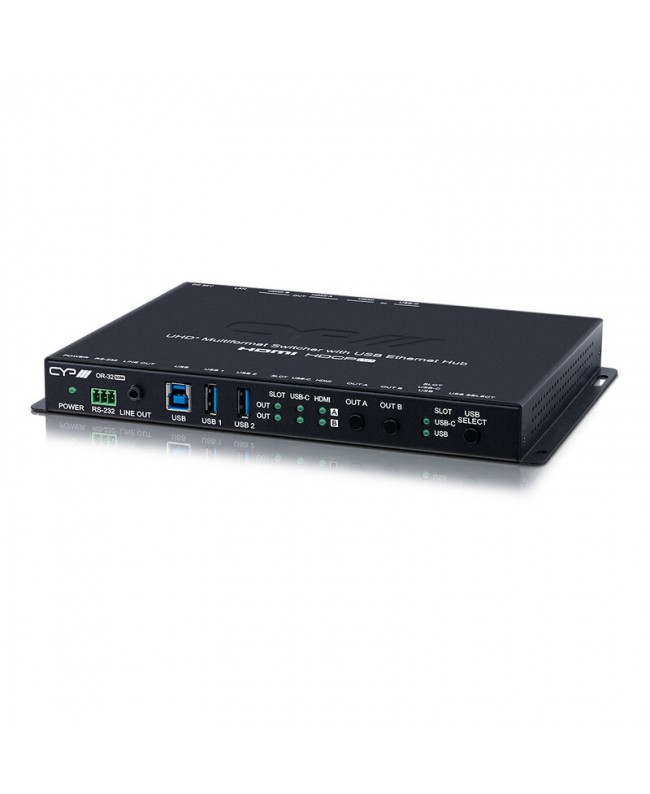

CYP OR-32SDMI

The OR-32SDMI is a next-generation 3 x 2 video switching matrix switcher designed to handle multi-format signals.

It supports HDMI, USB-C inputs, and an SDM slot for optional modules, offering greater flexibility than traditional fixed switchers. The two HDMI outputs allow simultaneous distribution to displays, projectors, or video conferencing systems.

The device integrates a USB 3.0 hub with two host ports and two device ports, ideal for advanced KVM configurations and sharing webcams, keyboards, mice, and peripherals between multiple computers.

Compatible with signals up to 4K and #64; 60 Hz 4:4:4, HDR10, HLG, and Dolby Vision, the OR-32SDMI ensures professional-level video quality and full HDCP 2.2 compatibility.

Control is possible via Web. GUI, Telnet, and RS-232, with event automation and remote management features. The modular SDM architecture allows for expandable functionality based on the application scenario.

• Main features
• USB 3.0 with one USB-B port, one USB-C port for connecting to a host PC, and two USB-A ports for peripherals and storage devices
• Supports Gigabit Ethernet
• Pass-through of 8-channel LPCM, bitstream, and HD bitstream audio formats
• Supports HDR video formats including HDR10, HLG, and Dolby Vision
• Basic event automation functions via RS-232, IP, or CEC
• Includes a slot for CYP SDM series module cards
• User benefits
• Simultaneous management of HDMI, USB-C, and SDM signals for maximum flexibility
• Video support up to 4K and #64; 60 Hz 4:4:4 with HDR10, HLG, and Dolby Vision
• Built-in USB 3.0 hub for KVM configurations and peripheral sharing
• Advanced control via Web GUI, Telnet, and RS-232
• Event automation via RS-232, IP, or CEC
• Areas of use
• Conference rooms
• Hybrid meetings
• Classrooms
• Corporate environments
