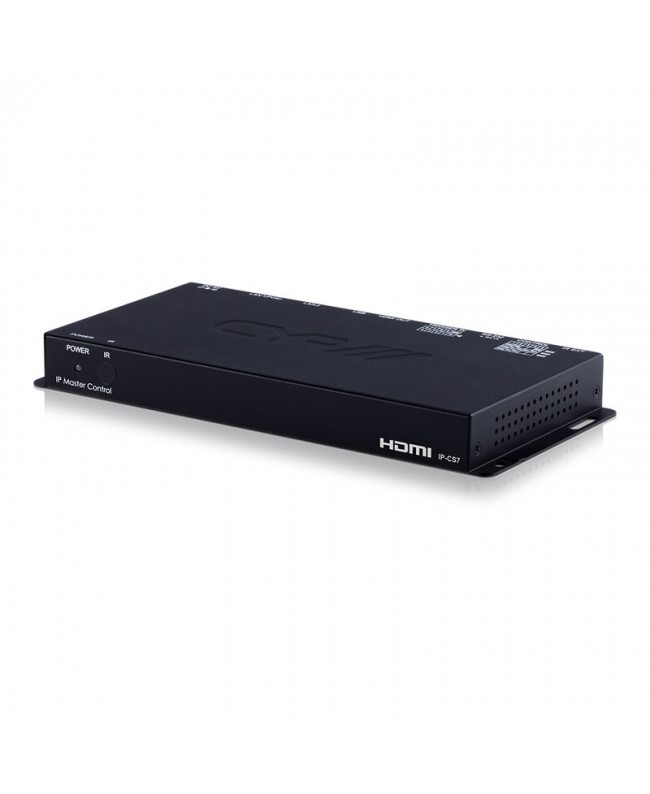

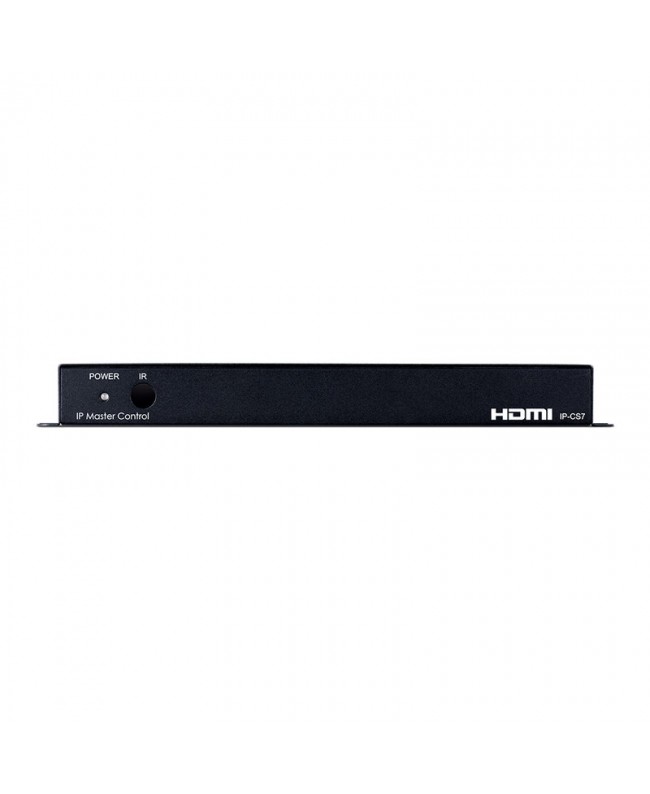

CYP IP-CS7

The IP-CS7 is an advanced controller designed to simplify management of the entire CYP 1G series AV over IP ecosystem.

Thanks to its centralized architecture, it automatically discovers all transmitters and receivers on the network and configures them through a single Web GUI, eliminating the need to access individual devices. Once installed on the network, the controller automatically discovers all extenders and allows you to define and manage unicast and multicast routing, create display groups, organize presets, and control distributed AV matrices or complex video walls with ease.

The Web GUI offers a Monitor and amp; Control area with drag-and-drop control and preview of content from sources, making it easy to switch between channels and manage zones. The system configuration area is protected by access rights to prevent unauthorized changes and ensure the security of the installation.

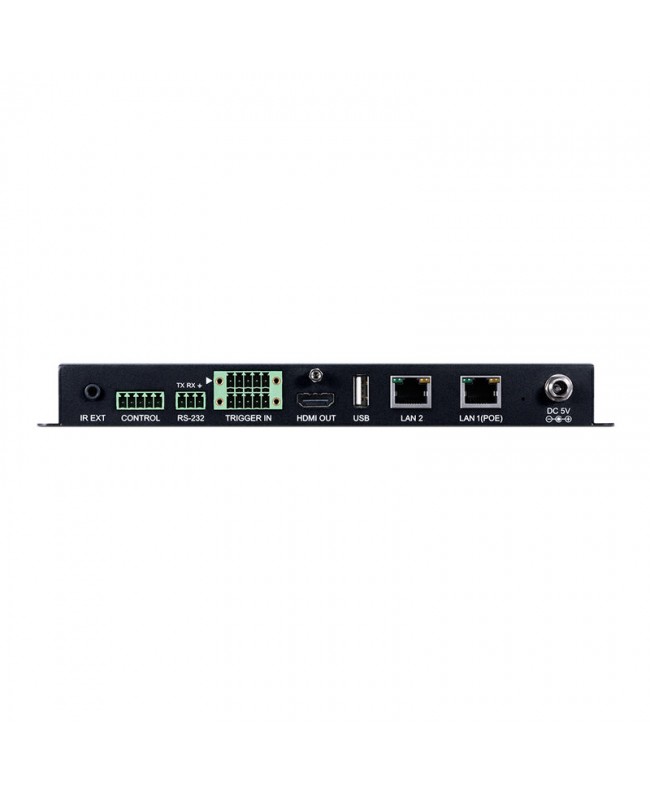

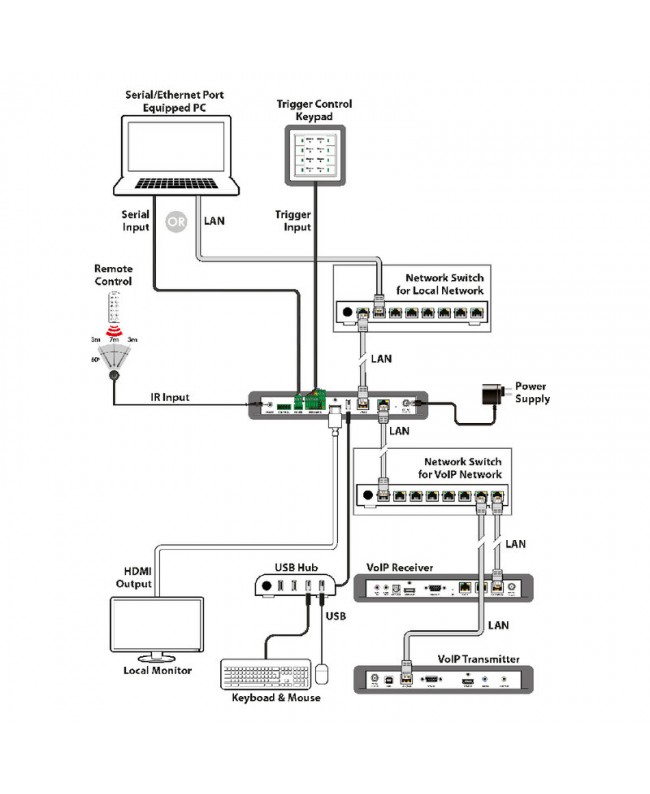

The presence of two LAN ports allows the AV network to be separated from the control network, allowing the controller to operate even when direct access to the video network is not permitted. The IP-CS7 can also be controlled locally by connecting an HDMI monitor and a USB keyboard/mouse, transforming it into a fully-fledged management console.

The system is completed by the Trigger Input interface, which allows presets and functions to be recalled via remote buttons or built-in panels, and support for RS-232, Telnet, IR, and Web. GUI protocols, offering broad integration flexibility in corporate, educational, and commercial environments.

• Main features
• Web. GUI with wizard for easy setup and administrative controls
• Enables simplified configuration and management of multiple IP6000 / 7000 devices via Web. GUI
• Supports unicast and multicast routing
• Drag-and-drop source control with visual content preview
• Web. GUI with complete status of all connected TXs and RXs, including IP addresses and channel swapping
• Video group presets available for instant display management
• Trigger input for quick preset recall via remote buttons
• Standard control via RS-232, Telnet, and Web. GUI
• Powered via Po. E or external power supply
• Easily add new TXs/RXs to an existing system
• User benefits
• Unified control of the entire AV over IP system from a single point of operation
• Significantly reduces the complexity of configuring extenders
• Immediate management of routing, matrix switchers, and video walls
• Ability to recall presets and scenarios with a simple physical or virtual button
• In-camera monitoring Real-time status of AV devices and network
• Secure separation between AV network and control network thanks to dual LANs
• Simplified installation thanks to local control via HDMI and #43; USB
• Greater operational reliability in corporate, educational, and commercial environments
• Areas of use
• AV over IP systems distributed in corporate environments and meeting rooms
• Control rooms and monitoring centers with Video walls
• University campuses and educational environments
• Retail and hospitality installations with multiple AV zones and preconfigured scenarios
• Conference rooms and boardrooms
• Complex AV infrastructures
