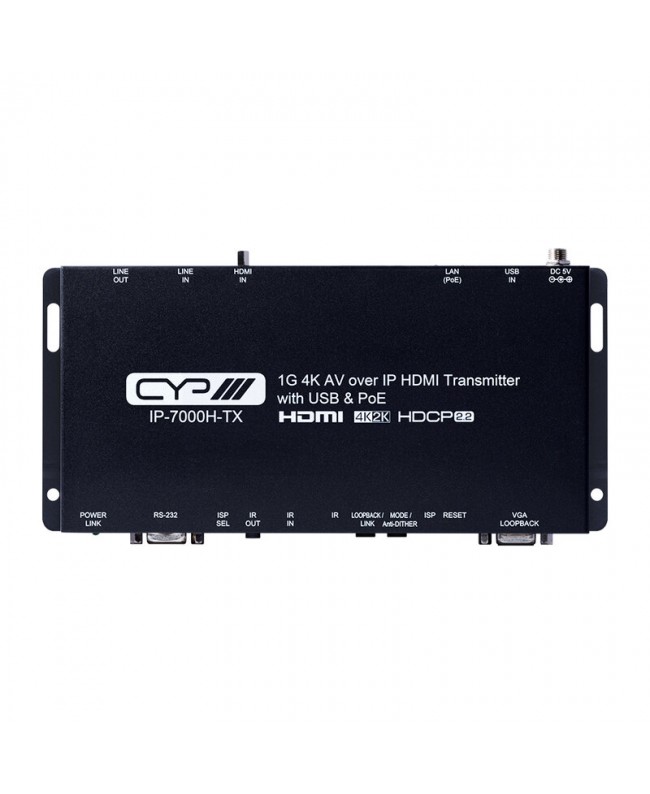

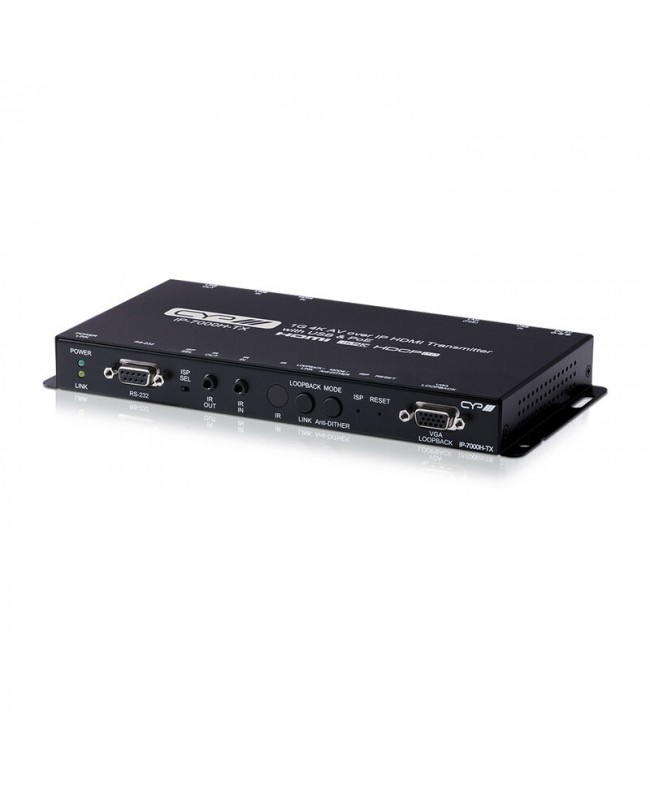

CYP IP-7000H-TX

1G AV over IP transmitter designed to distribute 4K HDMI signals over Ethernet, also integrating USB, IR, RS-232, and analog audio. Unlike traditional AV over IP transmitters, this model also includes a VGA loopback output, useful for connecting a local monitor during signal transmission.

It is part of the IP-7000 series, which allows installers to create fully scalable AV systems on dedicated IT infrastructure: from a simple point-to-point connection to complex multipoint-to-multipoint networks. The system can be expanded without real limits, adding transmitters and receivers according to installation needs.

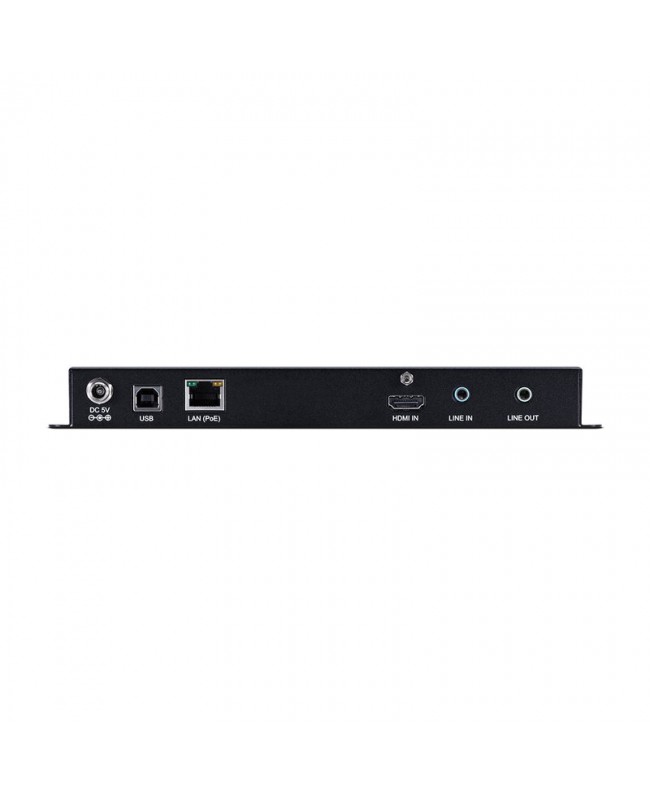

Video and audio signals can be transmitted up to 100 meters via a Gigabit switch, with the option to further extend the distance by cascading multiple switches, without any loss of quality or perceptible delay. The device supports Po. E, eliminating the need for external power supplies when connected to compatible switches.

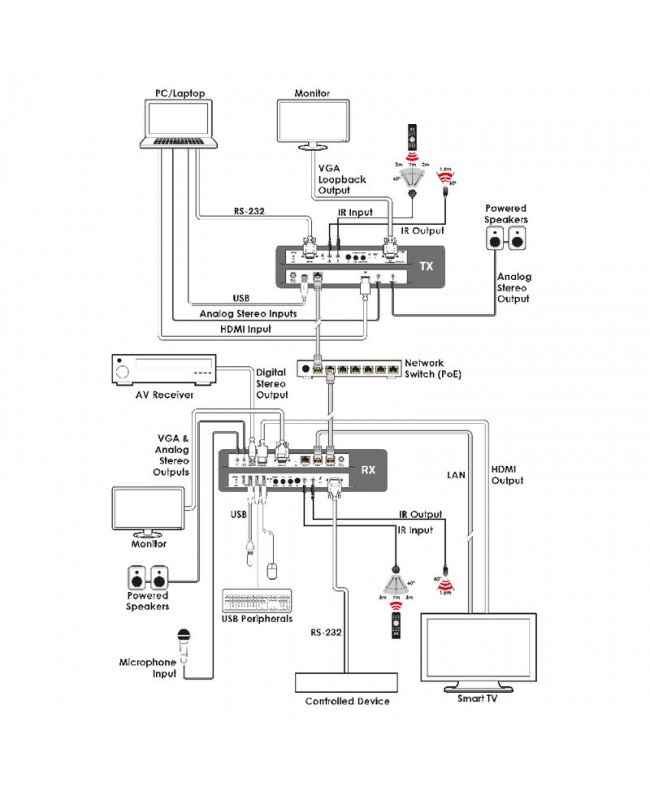

The IP-7000H-TX also integrates advanced features such as bidirectional IR pass-through, analog line IN/OUT, microphone input (from the receiver), and a USB system that allows you to use the entire AV network as a KVM hub, controlling keyboards, mice, and USB peripherals remotely.

Control is extremely flexible: Web. GUI, Telnet, RS-232, OSD, and front panel controls. For large systems or AV-over-IP matrices, the IP-CS7 controller is recommended.

• Main features
• Transmission of video, audio, and control signals over a TCP/IP network in Unicast or Multicast mode
• Supports 0°, 180°, and 270° image rotation
• The transmitter and #039;s line IN input is sent directly to the line OUT and inserted into the receiver and #039;s HDMI output
• Transmitter and receiver can be powered via Po. E from 802.3af-compatible Gigabit switches
• USB extension support for keyboards, mice, and storage devices, with IR bypass and RS-232
• Control via Web GUI, Telnet, and front panel commands

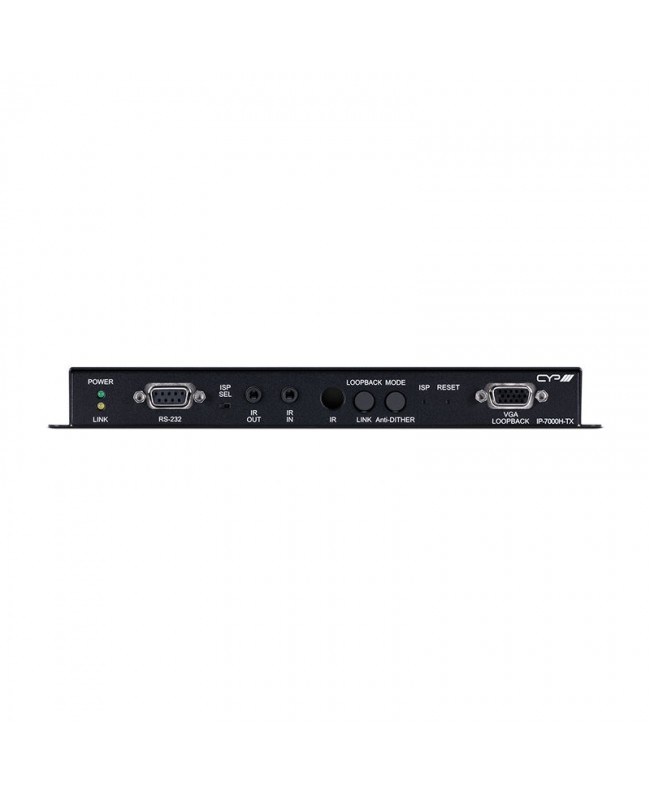

• VGA loopback output for local monitor
• User benefits
• Distributes 4K AV signals over an IP network with great flexibility
• Supports scalable configurations from point-to-point to complex multi-point systems
• Integrates KVM functions with USB extension
• Allows signal extension up to 100 m via Gigabit switches, with cascading capability
• Extensive audio options with Line IN, Line OUT, and microphone input
• Supports advanced control via Web. GUI, Telnet, and RS-232
• Areas of use
• Corporate environments
• 4K video distribution in conference rooms and meeting rooms
• Networked KVM installations for remote control of PCs and servers
• Digital signage
• Classrooms and training rooms
• Modular and scalable AV systems in large buildings or campuses
