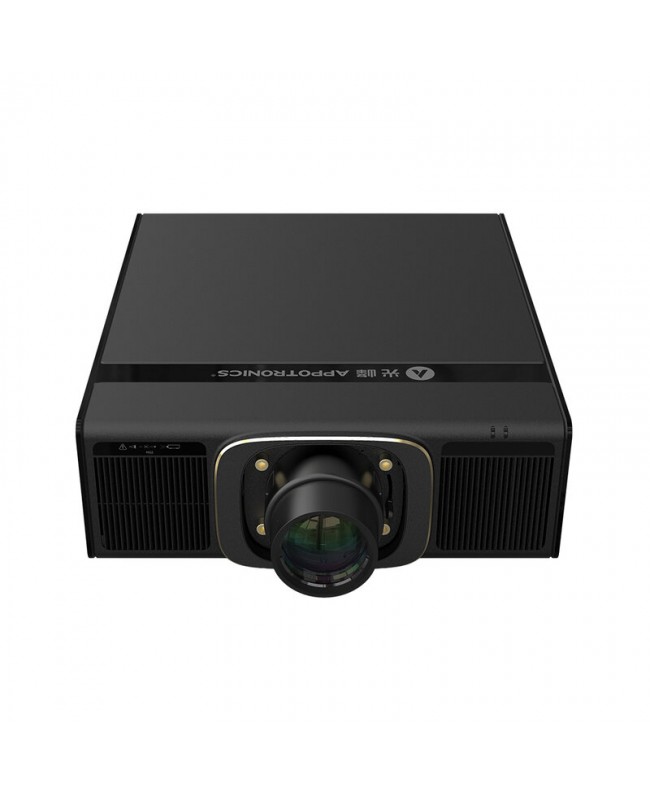

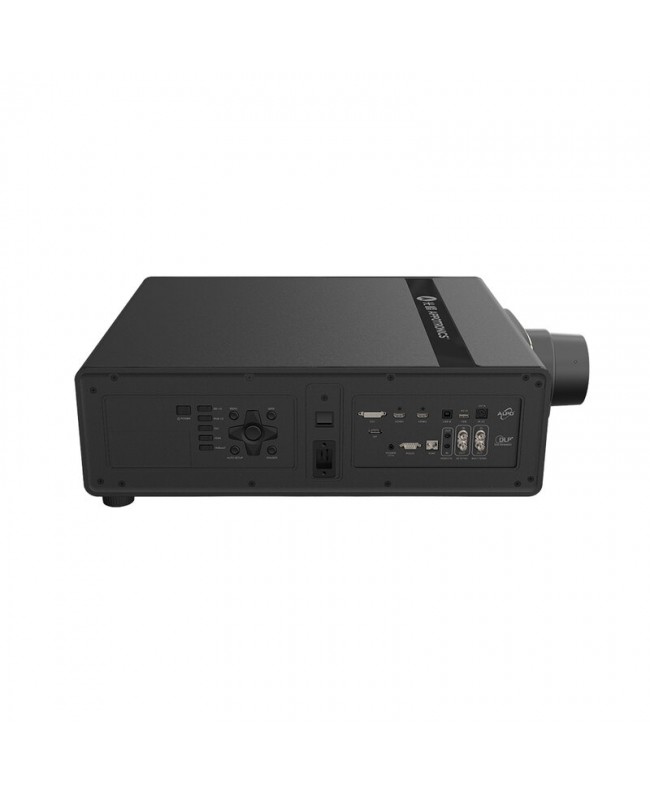

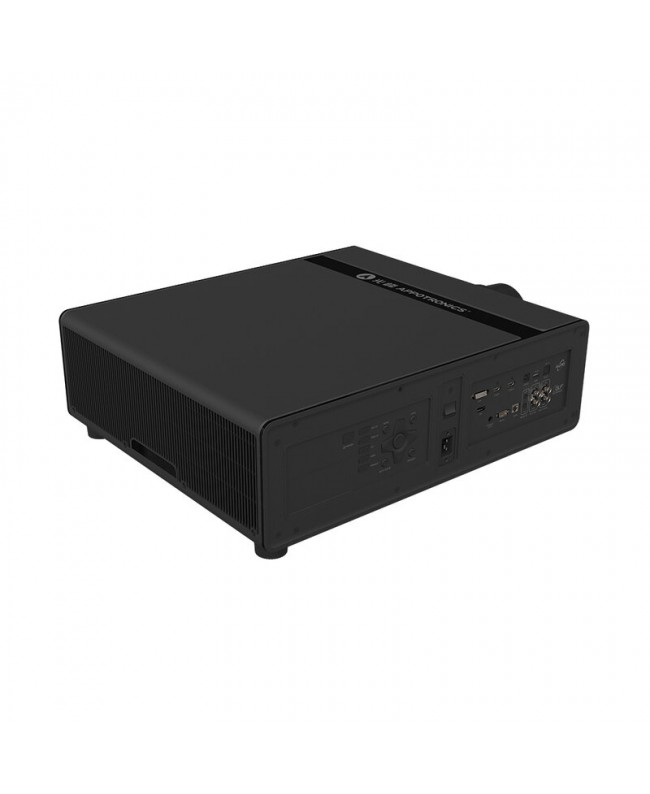

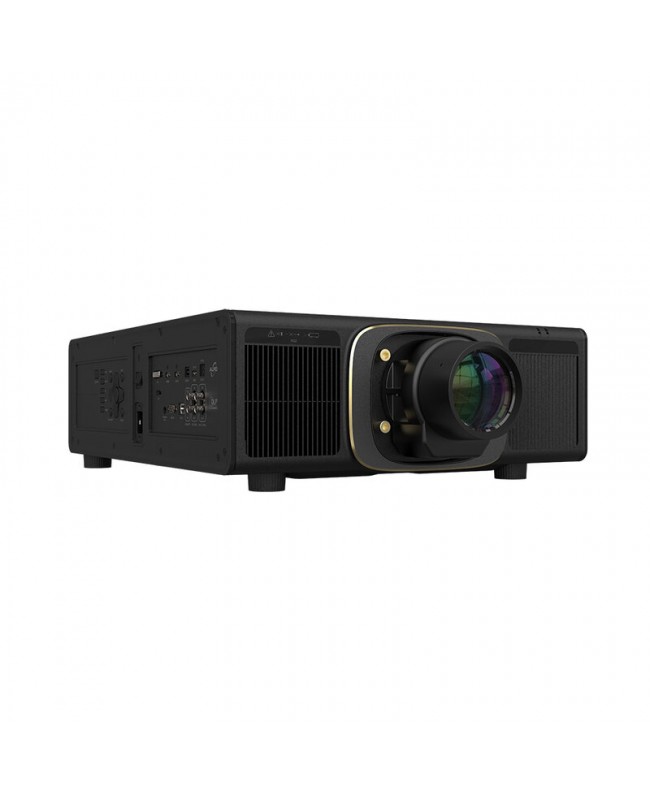

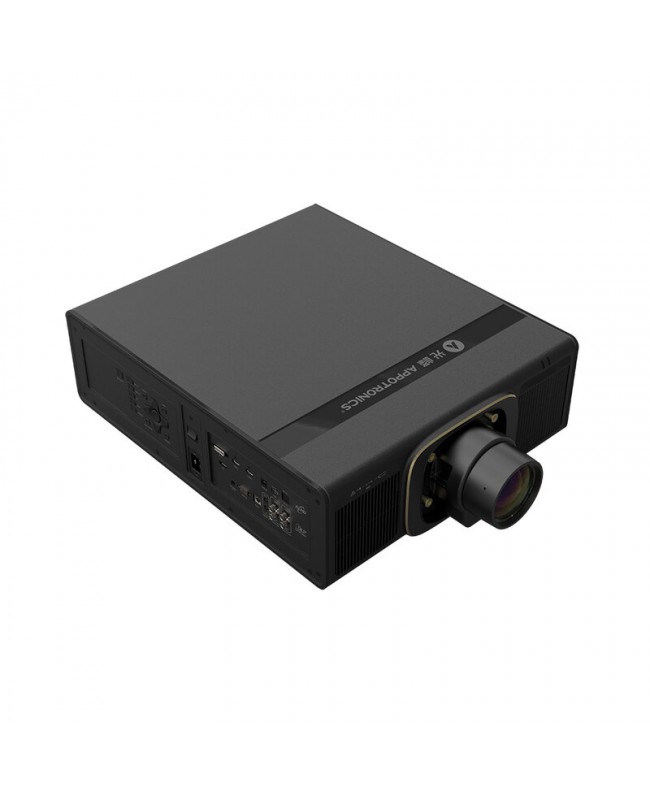

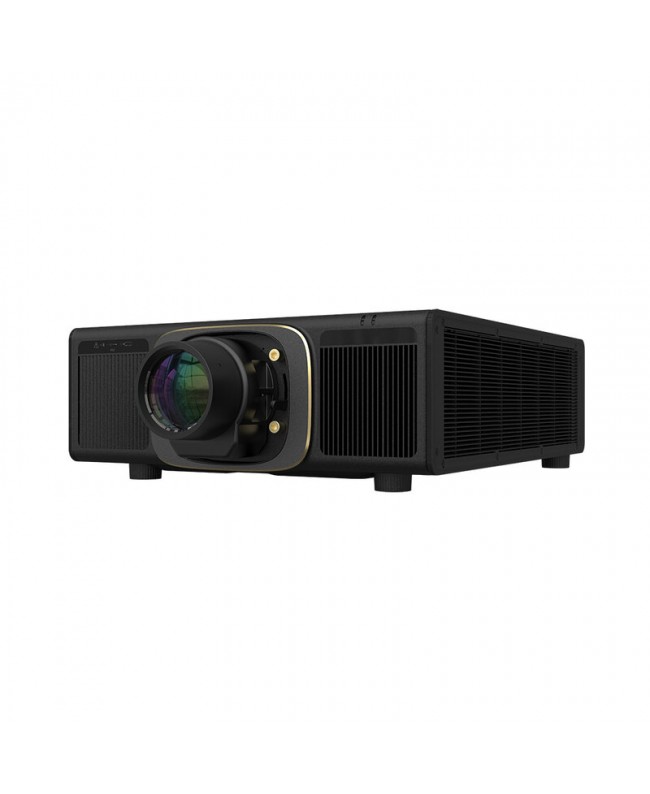

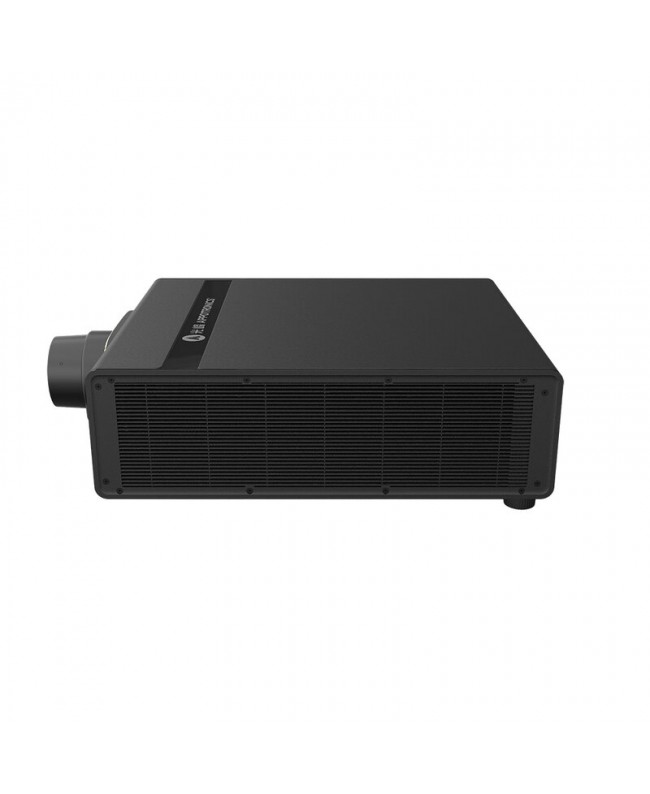

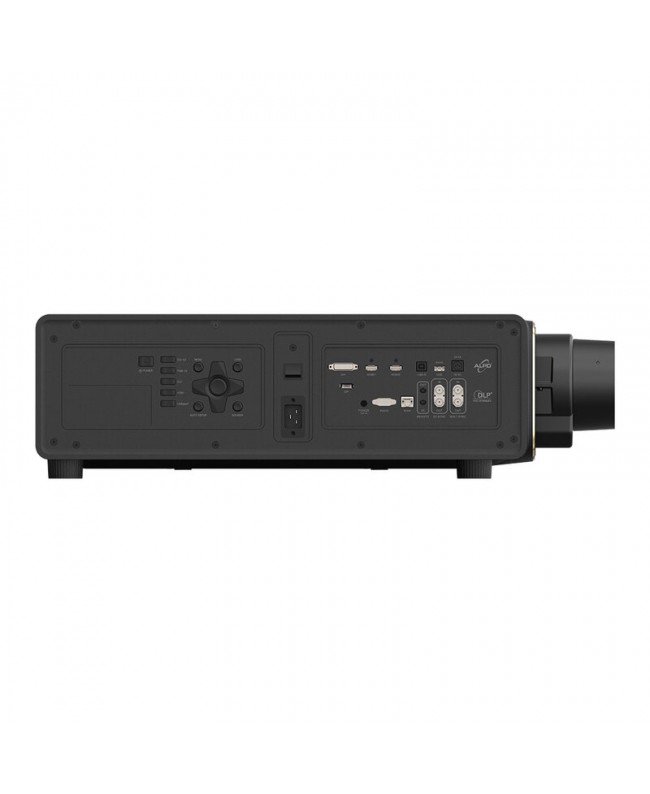

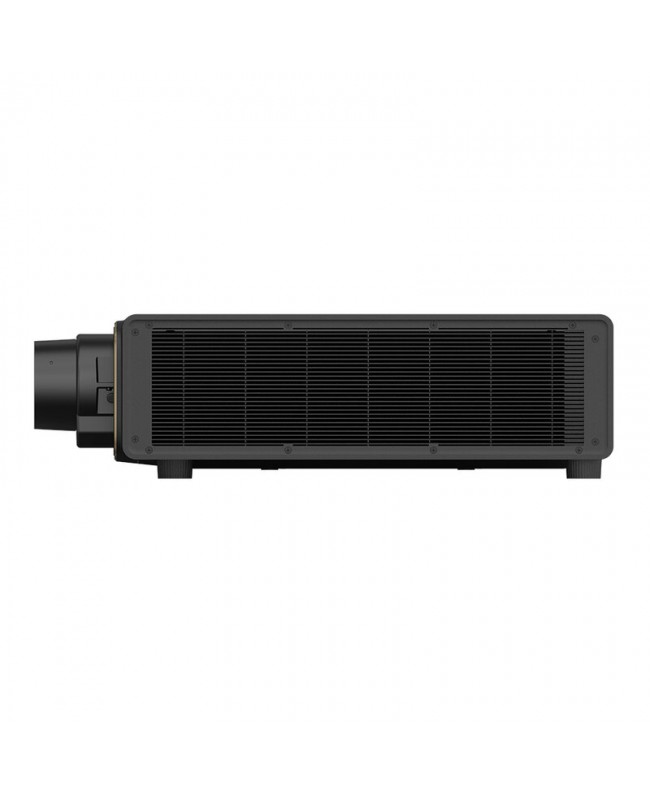

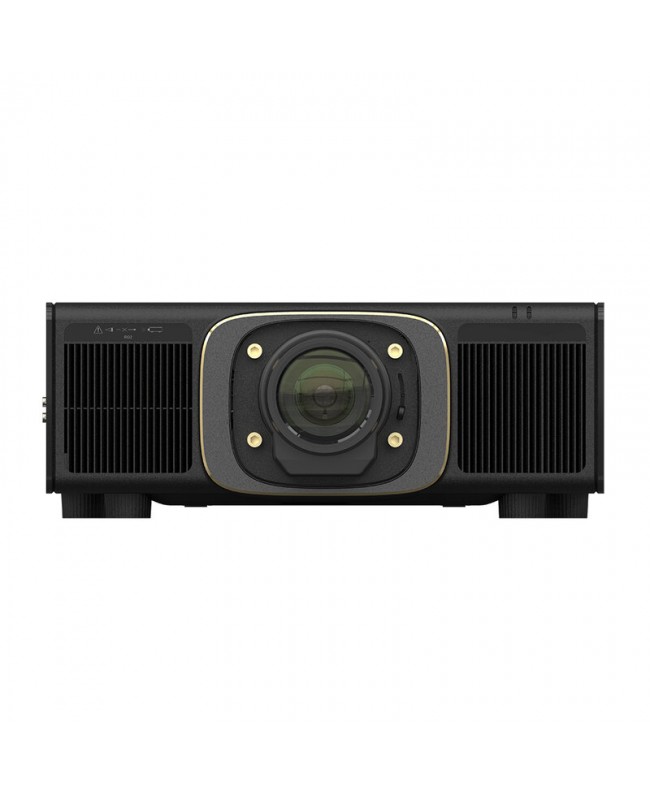

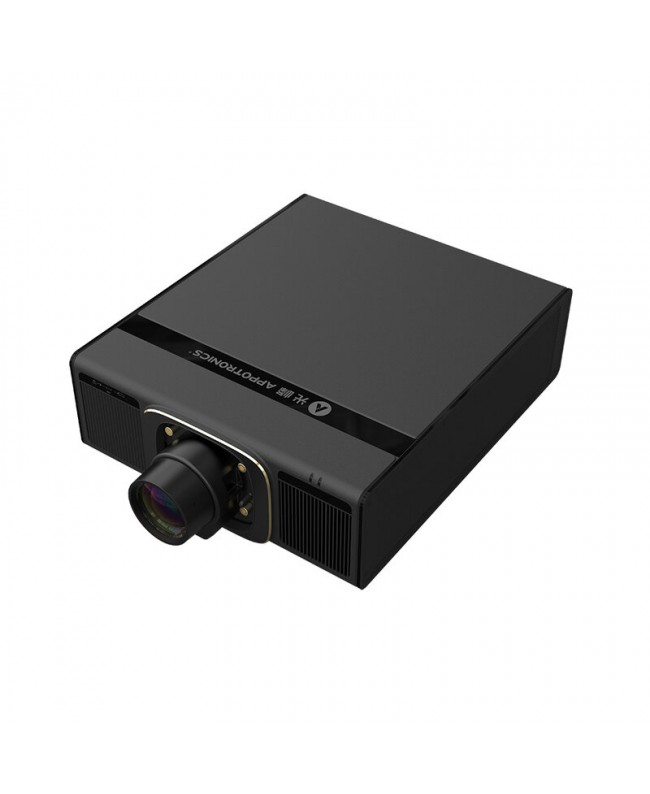

Appotronics AL-SK20KAP

The AL-SK20KAP is a high-end DLP laser projector from Appotronics and #039; S Pro series, designed to deliver cinema-level color performance thanks to its patented ALPD 5.0 RGBX full spectrum laser engine, capable of fully covering the DCI-P3 and Rec. 2020 color spaces, while competing solutions use a single blue laser with phosphors and only reach the Rec. 709 color space. The and #34;X and #34; indicates an additional component that Appotronics integrates to further broaden the light spectrum: it may include elements such as phosphors or LEDs and is part of the company and #039;s proprietary know-how. The triple-laser source minimizes speckle, broadens the light spectrum, and guarantees significantly superior color fidelity compared to single-laser architectures, offering more saturated colors, a particularly rich red (min. 22%), and ideal visual performance for creative content with high color sensitivity.

The projector uses a 0.8 and #34; DLP chip with 4K and #43; resolution (3840 x 2400) and a brightness of 20,000 - 21,000 lumens (center), ensuring extremely bright, sharp, fringing-free images with a level of detail that surpasses any 3LCD projector in the same brightness range. The high contrast ratio (min. 100,000:1) and HDR10 support with Adaptive HDR allow for intelligent management of light and shadow, maintaining detail in highlights and deep blacks.

The S Pro series is designed for professionals who demand the utmost precision in content rendering: directors, designers, creatives, and art directors who do not accept compromises in color fidelity and visual consistency. Compared to other competing solutions, the S Pro offers superior 4K quality, broader color rendition and greater operational stability.

The AL-SK20KAP offers a compact design for its class, operation in any orientation, and a range of optional lenses cover throw ratios from 1.1 - 1.5:1, 1.5 - 2.4:1, and 2.4 - 3.8:1, with additional lenses available upon request. Integrated geometric corrections include keystone, curved surfaces, and a multi-point grid of up to 33 x 33 dots, making the projector suitable for irregular surfaces and complex installations.

For reliability, the S Pro Series uses a fully sealed engine with IP5X certification, a patented color wheel cooling system and a laser source with a lifespan of over 20,000 hours. Light source and input signal backups ensure operational continuity even in mission-critical applications, while the APCS platform enables remote monitoring, control, and advanced diagnostics.

• User benefits
• ALPD 5.0 RGBX triple-laser engine with full DCI-P3 and Rec. 2020 coverage, ideal for high-sensitivity color contents
• Superior 4K and #43; performance compared to any 3LCD solution in its class
• More stable and precise image quality than single-laser phosphor architectures
• Competitive alternative to 3DLP systems, with wider color rendition and lower operating costs
• High brightness (20,000 - 21,000 lm) and contrast min. 100,000:1 for sharp, deep images
• Optional lenses designed with wide throw flexibility
• Advanced geometric corrections for curved surfaces and complex mapping
• IP5X-sealed engine and patented cooling for truly maintenance-free operation
• Light-source backup and input-signal backup functions for operational continuity in critical environments
• Areas of use
• Large venues and premium immersive installations
• Museums, galleries, digital art and exhibition spaces where high color fidelity is required
• Architectural mapping and irregular surfaces
• Live events, rental and amp; staging
• High-brightness permanent installations
• Auditoriums, theaters, houses of worship, and conference centers
• Filmmaking and pre-visualization applications for directors and designers
• Professional simulators and all environments requiring extreme visual precision
